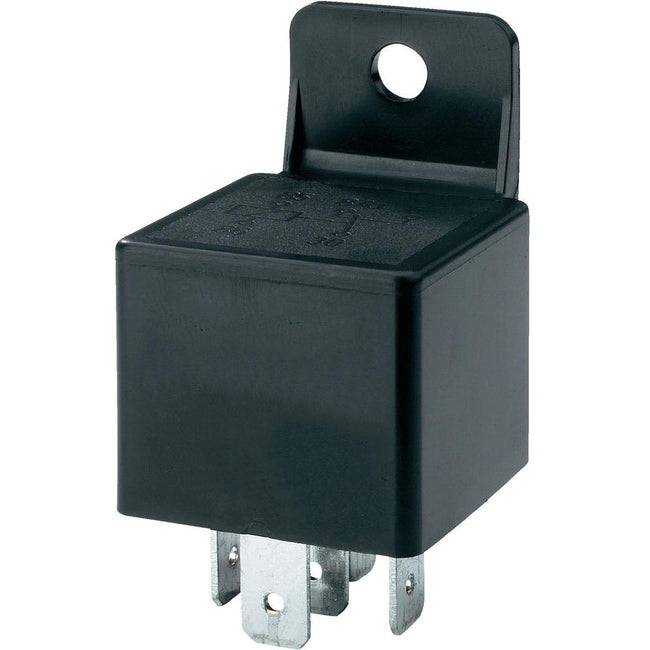

12VDC 30A AUTOMOTIVE HORN / SIREN RELAY
Used in cars for starter disable, flashing lights, powerdoor lock etc. Used in alarm units for extra sirens, external lighting.
6.3mm quick connet terminals
Size: 28 x 25 x 28mm (WHD)
Application : For direct connection with Cell Motors, Transmission etc. and Anti-Locking Brake System..
FEATURES:
- 40A switching use relay at ambient temperature of 80°C.
- Compatible fasten terminal arrangement with this kind of power relay.
- Simple magnetic circuit to meet mass production forlow cost offer.
- Standard type contact is SPDT.
- Operating ambient temperature range covers from -30°C to 80°C.
SPECIFICATIONS:
- Contact Resistance.............100 mΩ Max.@1A,6VDC
- Operate Time.......................10 mSec. Max.
- Release Time......................10 mSec. Max.
- Dielectric Strength:
- Between Coil & Contact......1,000VAC at 50/60 Hz for one minute.
- Between Contacts...............500VAC at 50/60 Hz for one minute.
- Insulation Resistance..........100 MegaΩ Min. at 500VDC.
- Max. On/Off Switching:
- Electrical..............................6 Cycles per Minute.
- Mechanical..........................300 Cycles per Minute.
- Temperature Range.............-30 - 85°C
- Humidity Range...................45- 80% RH.
- Coil Temperature Rise.........60°C Max.
- Vibration :
- Endurance............................10 to55 Hz dual amplitude width 2 mm.
- Error Operation....................10 to 55 Hz dual amplitude width 2 mm.
- Shock :
- Endurance ..........................1,000 m/S2 .
- Error Operation....................50 m/S2 .
- Life Expectancy :
- Mechanical .........................100,000,000 Operations at No Load condition.
- Electrical .............................1,000,000Operations at Rated Resistive Load.
- Weight..................................About 36.5 g.
- Accessories & Sockets: UC3003
