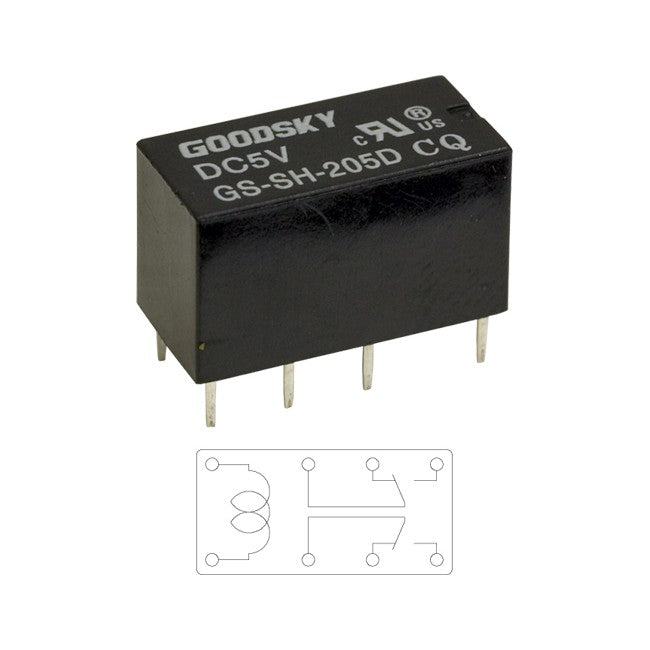

GSSH205D 5V DC 2A DUAL INLINE RELAY DOUBLE POLE GS-SH-205D

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

5V DC 2A DUAL INLINE RELAY

The Dual-in Line relay is designed to offer a completelydust and water-proof package with bifurcated and crossbar contacts for assuring high reliability.

Plastic sealed package and DIP terminal for flow-soldering process

Application : Telecommunication, domestic appliances, office machine, audio equipment, Remote Control, etc

FEATURES:

• 92/8 gold silver alloy on silver palladium contact type is suitable for low level switching application.
• Small size and light weight can provide high density P.C. Board mounting.
• 2.54gmm Terminal Pitch.
• Low Coil Power Consumption of GS-T Type and high Coil Power Consumption of GS-D type are available to meet user’s selection.
• Employment of suitable plastic materials to be applied to high temperature and various chemical solution.
• Plastic epoxy resin sealed type for washing procedure.


SPECIFICATIONS:

• Contact Resistance.............100mΩMax.@0.1A,6VDC
• Operate Time
  • GS-D 6 mSec. Max.
  • GS-T 8 mSec. Max
• Release Time......................4 mSec. Max.
• Dielectric Strength :
  • Between Coil & Contact.......1,000VAC at 50/60 Hz for one minute.
  • Between Contacts................500VAC at 50/60 Hz for one minute.
• Surge Strength.....................1,500V (between coil & contact 1.2x50μSec.)
• Insulation Resistance..........100 MegaΩ Min. at 500VDC.
• Max. On/Off Switching :
  • Electrical..............................30Cycles per Minute.
  • Mechanical 300 Cycles per Minute.
• Temperature Range..............-30 - 80°C
• Humidity Range....................45 - 85% RH.
• Coil Temperature Rise:
  • 25°C Max. (D Type)
  • 20°C Max. (T Type)
• Vibration:
  • Endurance.............................10 to 55 Hz dual amplitude width 1.5mm.
  • Error Operation.....................10 to 55 Hz dual amplitude width 1.5mm.
• Shock:
  • Endurance ...........................1,000 m/S2 .
  • Error Operation.....................100 m/S2 .
• Life Expectancy:
  • Mechanical ..........................100,000,000 Operations at No Load condition.
  • Electrical ..............................1,000,000 Operations at Rated Resistive Load.
• Weight...................................About 4.8 g.
• Safety Standard & Its File Number
  • C-UL(D&T only)....................E141060
  • CSA(D&T only).....................LR109368
