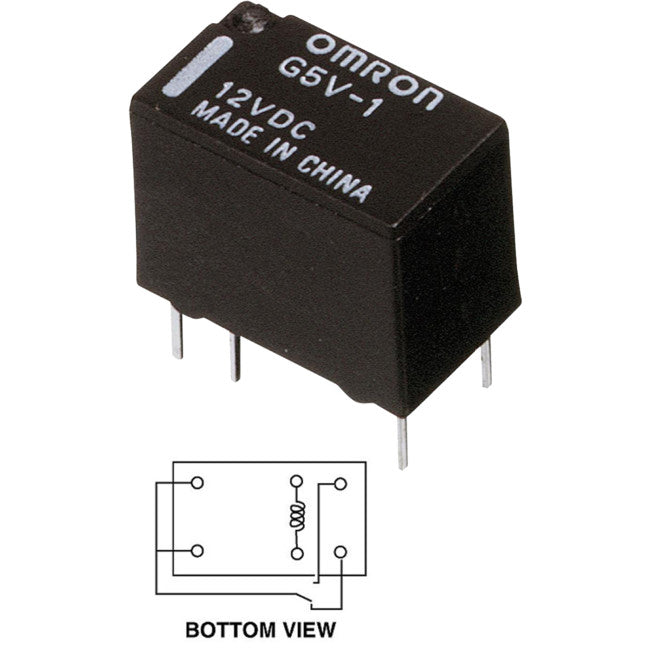

$7.95
- 2A max continuous carrying current
- Super sensitive gold-overlay contacts
- International terminal pitch of 2.54mm grid terminal layout
- Low power dissipation of 0.45W
- Size: 10.8 x 15.6 x 10.6mm (WHD)
- Nominal Coil Voltage: 12V DC
- Coil Resistance (± 10% @ 20°C): 320
- Coil Current (at rated voltage): 38mA
- Rated Power Dissipation: 450mW
- Contact Arrangement/ Material : SPDT (1 Form C) Gold-overlay silver
- Contact Rating: 28V DC 1A/120V AC 0.5A
- Max Carrying/ Switching Current: 2A/2A DC/1.25A AC
- Max Switching Voltage/ Power:150V DC/220V AC/ 28W DC/60VA AC
- Initial Contact Resistance: 100m max. (at 6V DC, 0.1A)
- Coil Temperature Rise: 45°C
- Insulation Resistance: 100M min. (at 500V DC)
- Withstanding Voltage : 500V AC for 1 minute
- Operate Time/ Release Time : Approx. 5ms
- Life Expectancy (Mechanical): 5 x 106 ops. min.
- Max. Switching Frequency: 18000 ops./hour
- Ambient Temper
