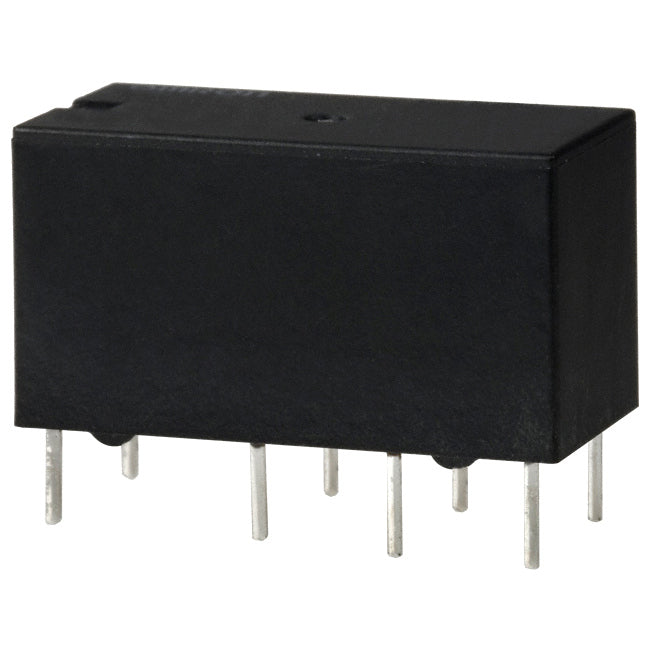

G5V224V 24V DC 1A DOUBLE POLE RELAY DOUBLE POLE ( M4-24H ) OMRON G5V-2-24V

24V DC 1A DUAL INLINE RELAY

The Dual-in Line relay is designed to offer a completelydust and water-proof package with bifurcated and crossbar contacts for assuring high reliability.

Plastic sealed package and DIP terminal for flow-soldering process

Application : Telecommunication, domestic appliances, office machine, audio equipment, Remote Control, etc

FEATURES:

  • Reliable Ag + Au clad contact type is suitable for low level switching application.
  • Small size and light weight can provide high density P.C. Board mounting
  • Capable of switching loads 10uA to 2 A
  • Conforms to FCC part 68 1,500V surge withstand
  • Employment of suitable plastic materials to be applied to high temperature and various chemical solution.
  • Fully sealed construction.

SPECIFICATIONS:

  • Contact Resistance.............100mΩMax.@0.1A,6VDC
  • Release Time......................4 mSec. Max.
  • Dielectric Strength :
    • Between Coil & Contact.......1,000VAC at 50/60 Hz for one minute.
    • Between Contacts................1,000VAC at 50/60Hz for one minute.
  • Surge Strength.....................1,500V (between coil & contact 10 x 160μ.)
  • Insulation Resistance..........1,000 MegaΩ Min.at 500VDC.
  • Max. On/Off Switching :
    • Electrical..............................1,800 Cycles per hour. ( under rated Load )
    • Mechanical 36,000 Cycles per hour.
  • Temperature Range..............-25 - 70°C
  • Humidity Range....................5 - 85% RH.
  • Coil Temperature Rise:
    • 25°C Max. (D Type)
    • 20°C Max. (T Type)
  • Vibration:
    • Endurance.............................10 to 55 Hz dual amplitude width 1.5mm.
    • Error Operation.....................10 to 55 Hz dual amplitude width 1.5mm.
  • Shock:
    • Endurance ...........................1,000 m/S2 .
    • Error Operation.....................100 m/S2 .
  • Life Expectancy:
    • Mechanical ..........................15,000,000 Operations min at operating frequency of 36,000 operations per hr
    • Electrical ..............................1,00,000Operations min at 1,800 operations per hr
  • Weight...................................About 5 g.
  • Safety Standard & Its File Number
    • C-UL(D&T only)....................E41515
    • CSA(D&T only).....................LR31928
