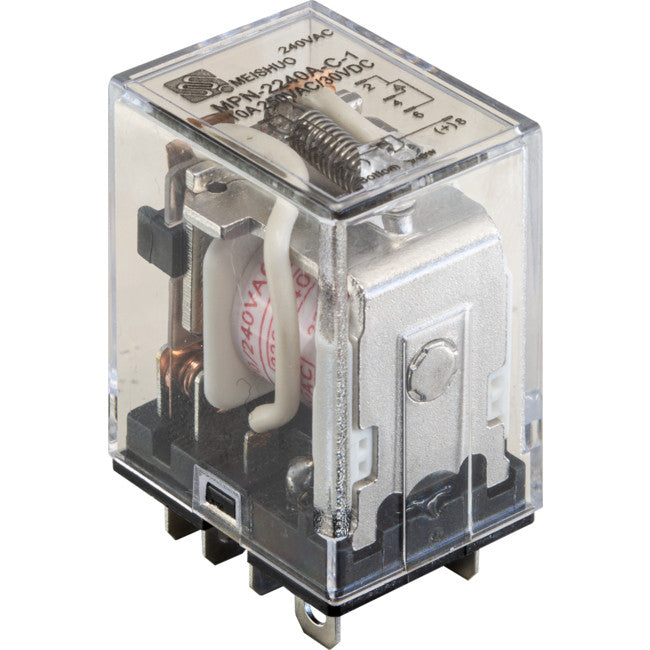

240V AC DOUBLE POLE 10A RELAY
Application : Vending Machine, Cooking Appliances, OfficeMachine, Domestic Appliances, Control Equipment, etc.
FEATURES:
- 1 Pole to 4 Poles versions are available with switching current at 15 Amps (1 Pole) and 10 Amps (2-4 Poles).

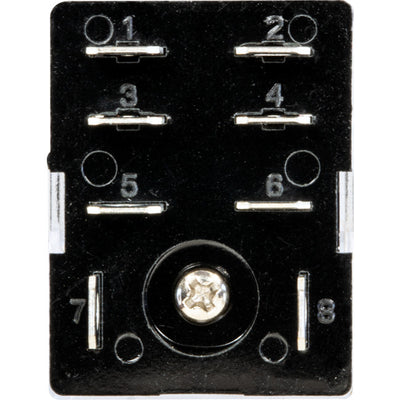

- Solder Lug Terminal and Flanged Case are designed for direct panel mounting use.
- Low coil power consumption with high response time.
- High reliability and long life with better vibration and shock resistance.
- 1/3 Horse power on RET 2 Poles series are certifiedby UL.
- Touch Button and LED version are available for customer’s selection
SPECIFICATIONS:
- 10A 250V AC / 30V DC
- Contact Resistance.............100 mΩ Max.@1A,6VDC
- Operate Time.......................25 mSec. Max.
- Release Time......................25 mSec. Max.
- Dielectric Strength :
- Between Coil & Contact......1,500VAC at 50/60Hz for one minute.
- Between Contacts...............1,000VAC at 50/60 Hz for one minute.
- Surge Strength....................3,000V (between Coil & Contact 1.2x50μSec.)
- Insulation Resistance..........100 MegaΩ Min. at 500VDC.
- Max. On/Off Switching :
- Electrical..............................6 Cycles per Minute.
- Mechanical..........................300 Cycles per Minute.
- Temperature Range.............-25 - 55°C
- Humidity Range...................45 - 85% RH.
- Coil Temperature Rise.........60°C Max.
- Vibration:
- Endurance...........................10 to 55 Hz dual amplitude width 1.5mm.
- Error Operation....................10 to 55 Hz dual amplitude width 1.5mm.
- Shock:
- Endurance .........................1,000 m/S2.
- Error Operation....................100 m/S2.
- Life Expectancy :
- Mechanical .........................100,000,000 Operations at No Load condition.
- Electrical ............................1,000,000 Operations at Rated RET Resistive Load.
- Weight:
- 1-2P :About 35 g.
- 3P :About 53.2g.
- 4P :About 66.5g.
- Safety Standard & Its File Number
- C-UL (1-pole & 2-pole)........E141060
