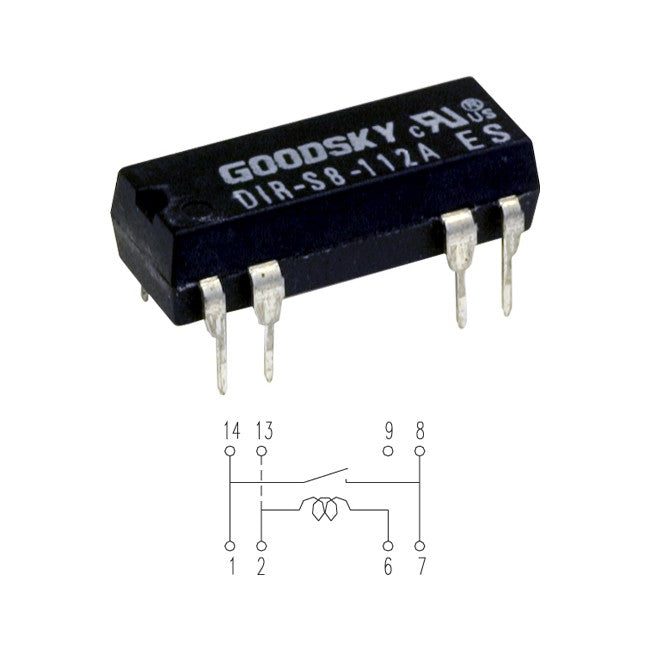

12V 1A SEALED DIL PITCH RELAY
Fully sealed construction (immersion cleanable). DIL pitch terminals. Usable in a wide range of environmental conditions .
Application : Security system, Modem and other telecommunication products.
FEATURES:
- Epoxy molded Dual-In-Line package.
- Low profile, mounting space compatible with DIP IC.
- Completely washable.
- Provide high speed, miniature and cost effective switching solution.
SPECIFICATIONS:
- Rated Load (Resistive): 0.5A 100VAC
- Rated Carrying Current: 0.5A
- Max. Allowable Voltage: 100 VAC
- Max. Allowable Current: 1A
- Max. Allowable Power Force: 50 VA
- Min. Switching Load: DC 1V, 1mA
- Contact Material: Ru Alloy
- Contact Form: SPST
- Contact Resistance.............150 mΩ Max.@ 100mA, 6VDC
- Operate Time......................0.5 mSec. Max.
- Release Time......................0.5 mSec. Max.
- Dielectric Strength:
- Between Coil & Contact......1,000 VAC at 50/60 Hz for one minute.
- Between Contacts...............150 VAC at 50/60 Hz for one minute.
- Insulation Resistance:..........100 MΩ Minimum
- Temperature Range:
- Operating.............................-40~85 °C.
- Storage................................-40~105 °C.
- Humidity Range...................45~85% RH.
- Vibration...............................20 G.
- Shock .................................100 G.
- Life Expectancy:
- Electrical..............................1,000,000,000 Operations at ref. 10VDC, 10mA
- Weight………………………..About 1.8g
- Safety Standard & Its File Number
- C-UL.....................................E141060.
