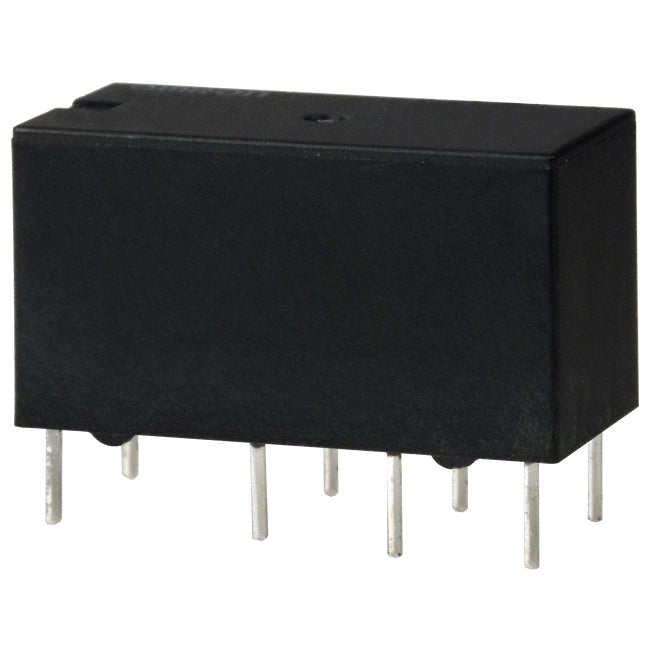

12V DC 1A DUAL INLINE RELAY
The Dual-in Line relay is designed to offer a completelydust and water-proof package with bifurcated and crossbar contacts for assuring high reliability.
Plastic sealed package and DIP terminal for flow-soldering process
Application : Telecommunication, domestic appliances, office machine, audio equipment, Remote Control, etc
FEATURES:
- 92/8 gold silver alloy on silver palladium contact type is suitable for low level switching application.
- Small size and light weight can provide high density P.C. Board mounting.
- 2.54gmm Terminal Pitch.
- Low Coil Power Consumption of GS-T Type and high Coil Power Consumption of GS-D type are available to meet user’s selection.
- Employment of suitable plastic materials to be applied to high temperature and various chemical solution.
- Plastic epoxy resin sealed type for washing procedure.
SPECIFICATIONS:
- Contact Resistance.............100mΩMax.@0.1A,6VDC
- Operate Time
- GS-D 6 mSec. Max.
- GS-T 8 mSec. Max
- Release Time......................4 mSec. Max.
- Dielectric Strength :
- Between Coil & Contact.......1,000VAC at 50/60 Hz for one minute.
- Between Contacts................500VAC at 50/60 Hz for one minute.
- Surge Strength.....................1,500V (between coil & contact 1.2x50μSec.)
- Insulation Resistance..........100 MegaΩ Min. at 500VDC.
- Max. On/Off Switching :
- Electrical..............................30Cycles per Minute.
- Mechanical 300 Cycles per Minute.
- Temperature Range..............-30 - 80°C
- Humidity Range....................45 - 85% RH.
- Coil Temperature Rise:
- 25°C Max. (D Type)
- 20°C Max. (T Type)
- Vibration:
- Endurance.............................10 to 55 Hz dual amplitude width 1.5mm.
- Error Operation.....................10 to 55 Hz dual amplitude width 1.5mm.
- Shock:
- Endurance ...........................1,000 m/S2 .
- Error Operation.....................100 m/S2 .
- Life Expectancy:
- Mechanical ..........................100,000,000 Operations at No Load condition.
- Electrical ..............................1,000,000 Operations at Rated Resistive Load.
- Weight...................................About 4.8 g.
- Safety Standard & Its File Number
- C-UL(D&T only)....................E141060
- CSA(D&T only).....................LR109368
