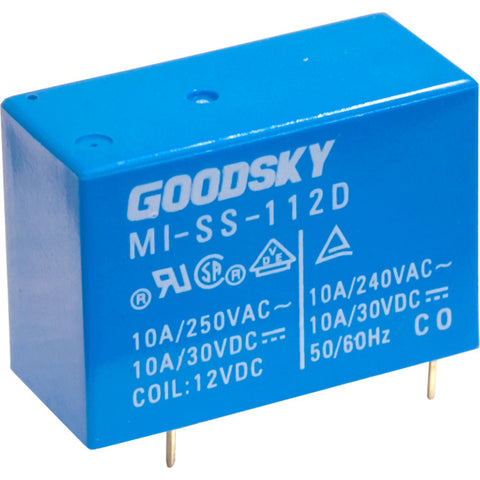

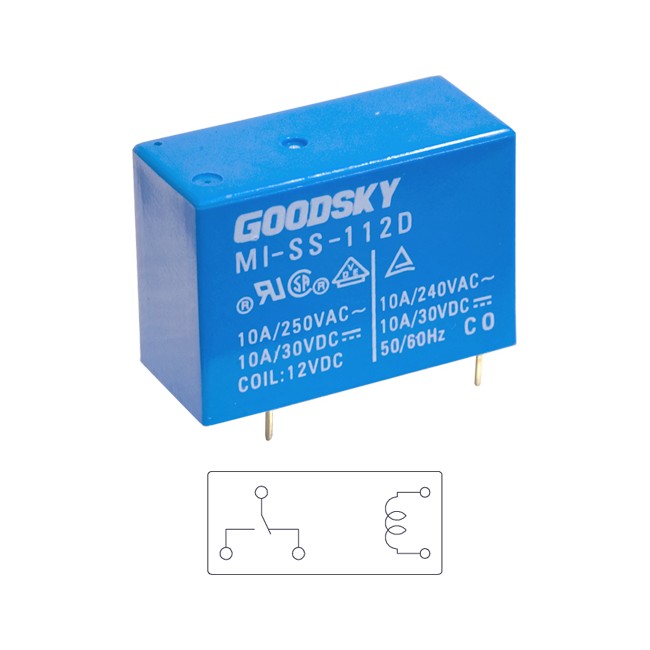

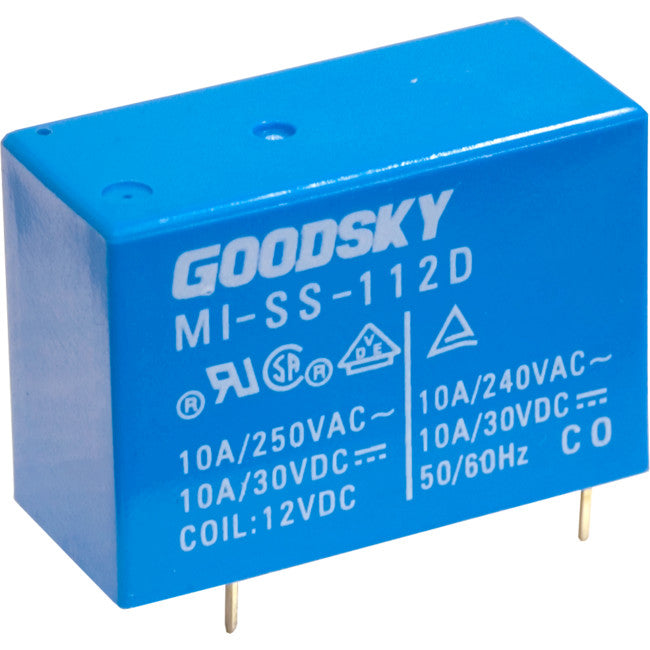

12VDC 10A SINGLE POLE RELAY
Application : Cooking Appliances, Air Conditioner, Audio Equipment, Domestic Appliances, Controlling Equivalent, etc.
FEATURES:
- Designed with an insulation distance of 8mm Mininimum. The employment of insulation material is meeting to JIS insulation class E. Thus a Dielectric Strength of 5,000V Min. and Surge Strength of 10,000V Min. can be reached.
- The employment of suitable plastic materials is applied under high temperature condition and various chemical solutions.
- Complete protective construction is designed to protect the relay from dust and soldering flux. The plastic sealed type is available for washing procedure.
SPECIFICATIONS:
- Contact Resistance.............100mΩMax.@1A,6VDC
- Operate Time.......................15 mSec. Max. (D Type) 20mSec. Max. (L Type)
- Release Time......................8 mSec. Max.
- Dielectric Strength:
- Between Coil & Contact......5,000VAC at 50/60Hz for one minute.
- Between Contacts...............1,000VAC at 50/60 Hz for one minute.
- Surge Strength....................10,000V (between Coil & Contact 1.2x50μSec.)
- Insulation Resistance..........100 MegaΩ Min. at 500VDC.
- Max. On/Off Switching:
- Electrical..............................6 Cycles per Minute.
- Mechanical..........................300 Cycles per Minute.
- Temperature Range.............-30 - 55°C
- Humidity Range...................45- 85% RH.
- Coil Temperature Rise.........45°C Max. (D Type) 35°C Max. (L Type)
- Vibration :
- Endurance............................10 to55 Hz dual amplitude width 1.5mm.
- Error Operation....................10 to 55 Hz dual amplitude width 1.5mm.
- Shock :
- Endurance ..........................1,000 m/S2.
- Error Operation....................100 m/S2.
- Life Expectancy :
- Mechanical .........................100,000,000 Operations at No Load condition.
- Electrical..............................1,000,000Operations at Rated Resistive Load.
- Weight..................................About 12.2 g.
- Safety Standard & Its File Number
- UL .......................................E141060
- CSA ....................................LR76598-6
- TÜV ....................................R9854160
- FIMKO (MI-L/LM Type).......FI 11385
- SEMKO (MI-L/LM Type).......9834069/01
- VDE (MI-L/LM/D/DM Type)..6486ÜG
