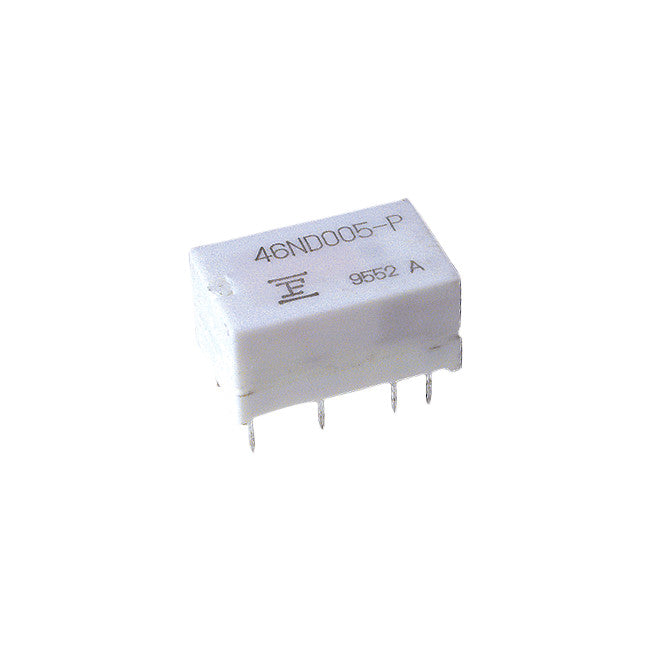

FBR46ND24 24V DC 1A MICRO MINI RELAY DOUBLE POLE DOUBLE THROW FUJITSU 6446ND024

Microminiature low profilerelays occupy only one-half the volume and three-forths ofthe mounting area of conventional relays.
- Size: 9.9 x 8 x 16mm (WHD).
- Low Power dissipation Built-in highly effective permanent magnet, gives a pickup power dissipation of 85mW. (Rated power dissipation is 150mW).
- High withstand voltage design Dielectric withstand voltage between the coil and the contact >1000V AC, and surge voltage resistance >1500V.
- Formed terminals available for temporary mounting Unique formed terminals allows the relays to be mounted temporarily on the PC board.
- Nominal Coil Voltage: 24V DC
- Coil Resistance (± 10% @ 20°C): 2880
- Coil Current (at rated voltage): 6mA
- Rated Power Dissipation: 200mW

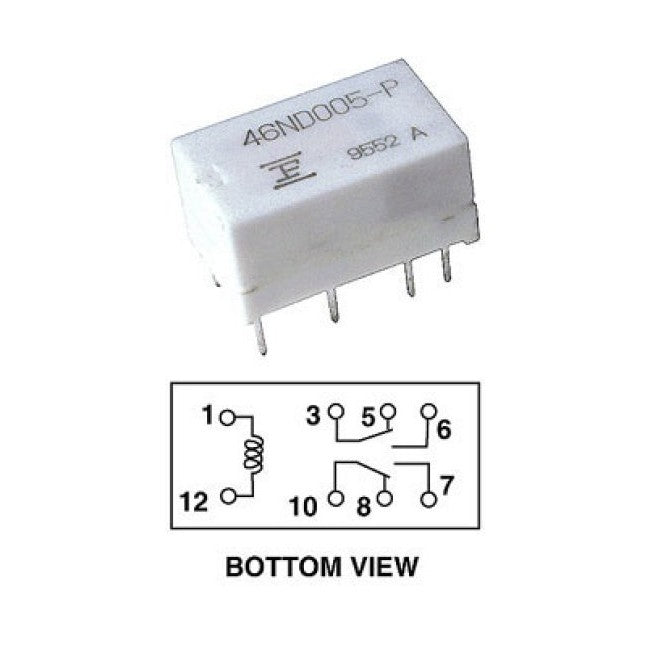

- Contact Arrangement: DPDT (2 Form C)
- Contact Shape: Bifurcated Contact
- Contact Material: Gold-overlay silver
- Contact Rating: 24V DC 1A/120V AC 0.3A
- Maximum Carrying Current: 1A
- Max Switching Voltage/Power: 1
