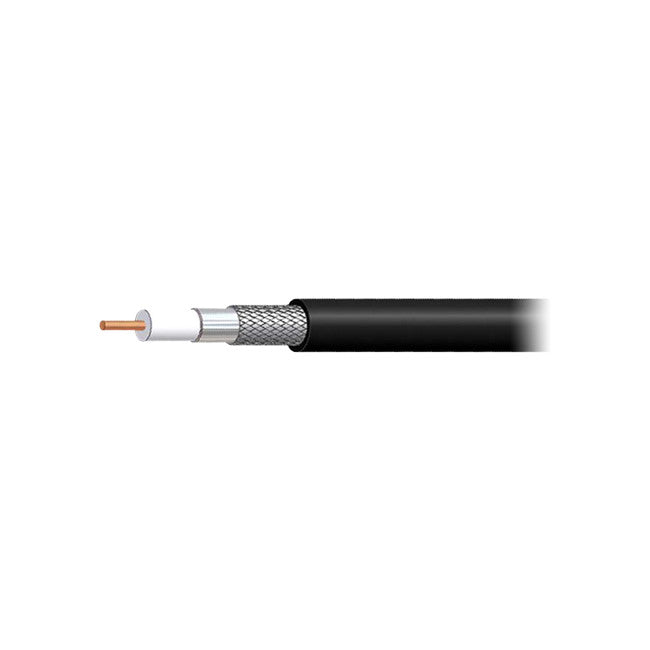

RG58U-1M 50 OHM RG58U STRANDED CORE -1M LOW LOSS CABLE- PER MT (100M) BENELEC 05603

RG58U-1M 50 OHM RG58U STRANDED CORE -1M LOW LOSS CABLE- PER MT (100M) BENELEC 05603

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

Low Loss Double Shielded 50Ω RG58U Coaxial Cable

[1 metre code]

Construction

Material

Construction

OD

Tolerance

Pitch

Centre conductor

Tinned Copper Wire Braid

19/0.2mm

0.94

OD ±0.05

Strands ±0.01

N/A

Insulation:(Dielectric)

FPE- Foam Polyethelene

Polyethelene Foam

2.90

±0.05

N/A

Shield 1

Aluminum Foil Polyester

Tape-Aluminum Foil

3.03

±0.05

N/A

Shield 2

Tinned Copper Wire Braid

7/16/0.127mm

3.49mm

OD ±0.05

Strands ±0.01

14 ppi

Jacket (Sheath)

PVC - Polyvinyl Chloride

Extruded

4.9mm

OD ±0.05

Flexibility

Plasticiser

65p



Capacitance

85.30.4pF/M

Impedance

52 O Nom.

Velocity of Propagation

75%

Conductor DCR

2.68 Ohms/km

Shield DCR

5.18 Ohms/km

Nom Inductance

0.065 uH/ft (0.194 uH/m)

Peak Power

Nominal Delay

4.46 ns/mtr

Maximum Operating Voltage

300 V RMS

Mechanical Characteristics

Net Cable Weight

3.4 Kgs/100M

Cable Weight (incl spool)

3.57 Kgs/100M

Max recommended pulling tension

19 Kgs

Minimum Bend Radius

13 mm

Operating Temperature

-40°C to +80°C

Electrical Characteristics

Attenuation

Frequency (MHZ)

dB/100M

Max Power Watts

50

10.2

425

100

13.5

290

200

18.3

190

400

26.1

105

700

35.5

89

900

40.8

72

1000

43.2

60
