$1.95
If you order 5, you will get five metres.
This cable is also available as a 100 m roll.

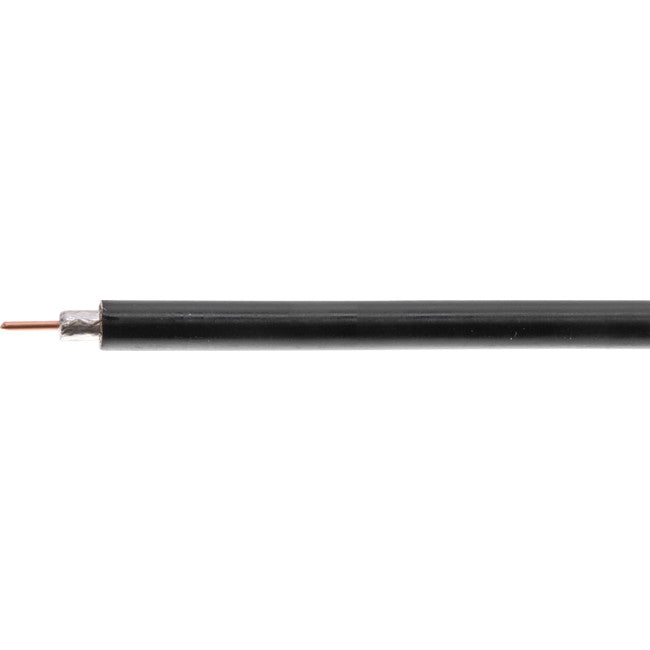

A heavy duty 50 ohm coaxial cable with 0.94mm±0.01solid bare copper conductor & Bonded dual al foil+ tinned copper outer conductor.
Cable Construction
| Material | Dimensions |
1.Inner Conductor | Bare Copper | 0.94±0.01m m |
2.Dielectric | PE(Foam PE) | 2.79±0.08mm |
3.Outer Conductor | Bonded DualAl Foil + Tinned Copper | 89% Braid Coverage(16*6*0.127*18.8) |
4.Jacket | PE(Black PE) | 4.95±0.13mm |
Mechanical Characteristics
|
Impedance | 50±2O | Capacitance | 27PF/FT |
Velocity | 75% | Jacket spark (V.RMS) | 3000 |
Min Bend Radius | 24.8mm |
|
|
Attenuation
|
Frequency(MHz) | Typical(dB/100ft) | Max(dB/100ft) | Frequency(MHz) | Typical(dB/100ft) | Max(dB/100ft) |
30 | 2.2 | 2.4 | 1500 | 15.1 | 16.6 |
50 | 2.7 | 3.0 | 1800 | 16.8 | 18.5 |
150 | 4.3 | 4.7 | 2000 | 17.9 | 19.7 |
220 | 5.2 | 5.7 | 2500 | 20.4 | 22.4 |
450 | 7.7 | 8.5 | 3000 | 22.8 | 25.1 |
900 | 11.3 | 12.4 |
|
|
|
Please Note: Online stock only for this item. Shipping at checkout for this item may be an estimate only and may apply only to some metro areas or to a specific distance from supply location. Local pickup may be available on some items by prior arrangement. Shipping charges may still apply for this item for Click and collect in store orders as this item may still need to be shipped to us for collection from the local pickup location.
Please use the contact us form to get an accurate shipping quote based on your order quantity and location to avoid order cancellation charges.
