Multicore Snake Cable 2 4 6 8 12 16 24 32 Channels with various Jack combinations Male Female XLR 1/4" Mono Stereo

Multicore Snake Cable 2 4 6 8 12 16 24 32 Channels with various Jack combinations XLR Male Female 1/4" Mono Stereo

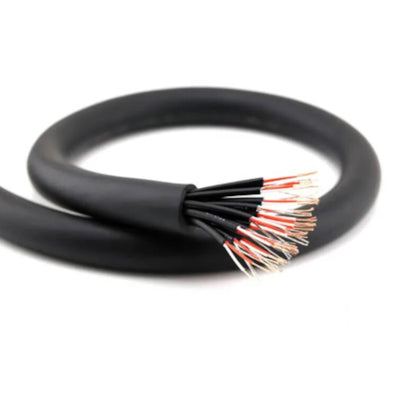

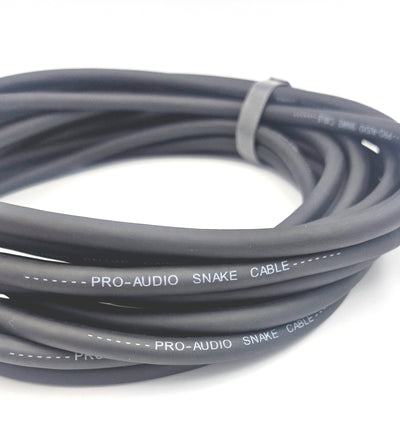

These multi-core cables consist of multiple 3 core balanced mic cables as per choice of channels required. Each channel cable in the multicore consists of twisted pairs of insulated OFC conductors spiral wrapped copper with a ground conductor (3 cores per channel) and encased in a tough PE sleeve. Each channel cable in the multicore is numbered for easy identification when adding termination jacks to the cable. Finally all the channel cables are then lined with PPE yarn and encased in a tough PVC sleeve.

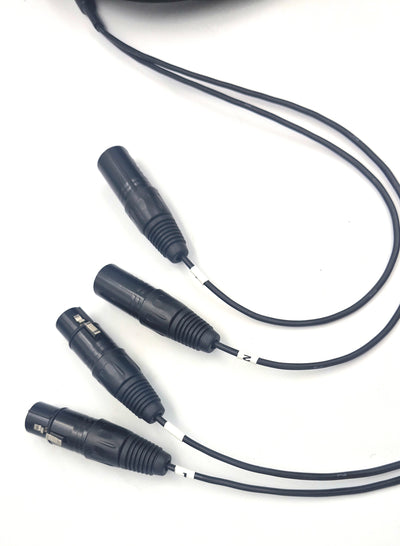

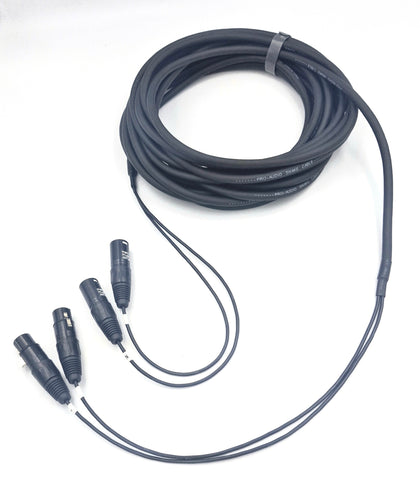

Listed are 5m and 10m lengths with only xlr male female jack combinations but as the cables are custom made, it can be made to any length and jack combination as required.

Main Features:

• Twin Conductors + Ground / Balanced Multicore Cable Roll
• Each channel has 3 cores. 2 insulated conductors + 1 ground
• Conductors: 2*(20x 0.10mm)
• Ground: 1*(7x 0.18mm) Tinned Copper spiral-wrapped shield + Aluminium Foil shield
• Outer Diameter: Varies according to the number of channels encased in the multicore

See our other listings in store for empty Multicore Stage Boxes various matching channels and Custom made snake cables with stage box.
