$4.50
Online Stock Only.
For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.
If you order 5, you will get five metres.
This cable is also available as a 100 m roll.

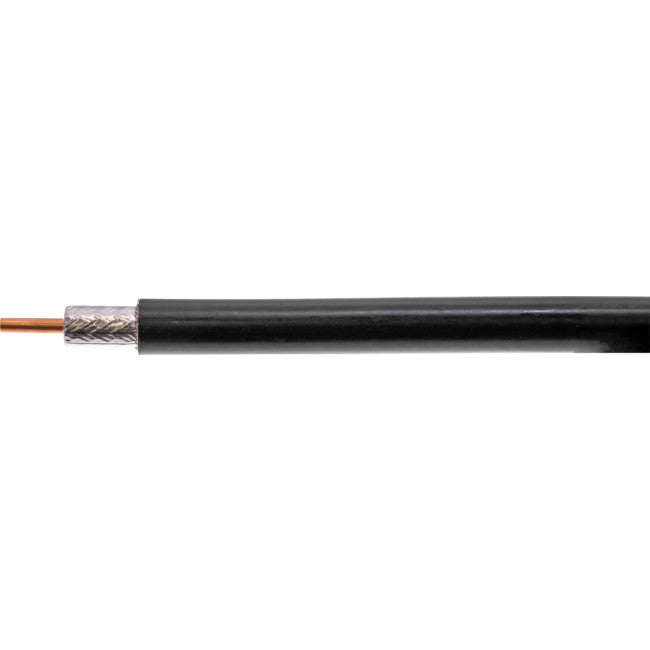

A heavy-duty 50Ω coaxial cable, suitable for low-loss applications such as mobile phone booster systems.
Mechanical Characteristics
Construction
| Material | Dimensions | |
| Inner conductor | Copper-clad aluminium | 2.74 ± 0.02mm |
| Dielectric | Foam PE | 7.24 ± 0.13mm |
| Outer conductor | Bonded dual-aluminium foil + tinned copper | 86% coverage, 24*7*0.16 |
| Jacket | Black PE | 10.29 ± 0.18mm |
Attenuation Characteristics
| Frequency (MHz) | Typical (dB/30m) | Max (dB/30m) |
| 30 | 0.76 | 0.84 |
| 50 | 0.97 | 1.07 |
| 150 | 1.5 | 1.7 |
| 220 | 1.9 | 2.1 |
| 450 | 2.7 | 3.0 |
| 900 | 3.9 | 4.3 |
| 1500 | 5.1 | 5.6 |
| 1800 | 5.6 | 6.2 |
| 2000 | 5.9 | 6.5 |
| 2500 | 6.7 | 7.4 |
| 3000 | 7.5 | 8.3 |
