$5.28
Online Stock Only.
For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.
Ultra flexible with rubber & PVC sheath, suits Cannon type mic connectors
The Eurocable Extra Flex is the pro industry standard forapplications that requires the repeated rolling and unrolling of cable for staging performances, temporary gigs or PA setups. Amphenol connectors (like the AC3F) perfectly fit this cable.

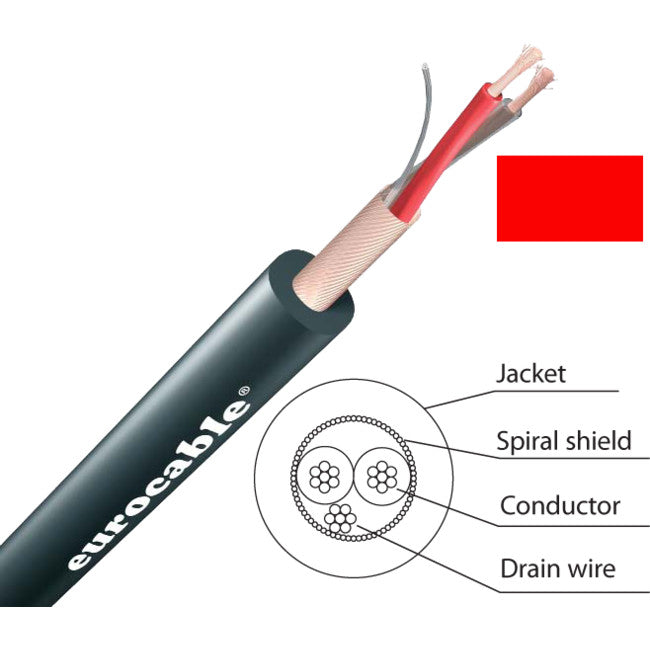

The6.0 mmmicrophonecablehas been designed forrugged applications.This extremely resistant cableisanti-tramplingwhile preservinghigh flexibilityin a wide range of conditions, even at temperatures below 0 °C. It consists oftwo insulated twisted conductors and drain wire, all shielded with a high density spiralcopper forhighly efficient shieldingfrom hum, noise, radio interference and electromagnetic fields.The insulation is made fromhigh quality polyethylenewhich does not shrink, nor misshape at high temperatures when soldering.
Producted in Italy with top quality materials, this6.0 mmmicrophonecableis particularly suitable for long runs in live applications.
APPLICATION | Mobile |
|---|---|
JACKET COLOR | Black, Blue, Green, Grey, Red, Yellow |
STANDARD REEL | 100 m on cardboard reels |
D.C.R. AT 20°C | Conductor | < 78 ohm/km |
|---|---|---|
| Shield | < 39 ohm/km | |
CAPACITANCE | CDR/CDR 1 KHz | 160 pF/m |
| CDR/SHD 1 KHz | 80 pF/m | |
NOMINAL IMPEDANCE 1 KHZ | 600 ohm/100 m | |
ATTENUATION 1 KHZ | 0.50 db/100 m | |
INDUCTANCE | < 58 µH/100 m | |
CABLE | O.D. | 6.00 mm |
|---|---|---|
| Standard reels | 100 m | |
| Weight | 4.60 Kg/100 m | |
| Operating temperature | -5°C/+70°C | |
JACKET | Material | PVC |
| Nom. Thick. | 1.00 mm | |
SHIELD | Material | Bare copper spiral shield plus 20 AWG tinned copper drain wire |
| Coverage | 100% | |
CONDUCTOR | Qty | 2 |
| Strand | 30 x 0.10 mm | |
| Area/AWG | 0.22 mm’/24 | |
| Insul. O.D. | 1.10 mm | |
| Material | Bare copper polyethylene insulated |
