LK02N6E-1METRE AUDIO / MIC BLACK  CABLE - 1M EXTRA FLEX EUROCABLE LK02N6E BLACK - 100M

LK02N6E-1METRE AUDIO / MIC BLACK CABLE - 1M EXTRA FLEX EUROCABLE LK02N6E BLACK - 100M

METRE CODE:
Please note that this product is sold in METRES.
Ensure that your order quantity matches your desired length (ie. 30 for 30m).
Length in brackets- eg. (100m) denotes available roll length.

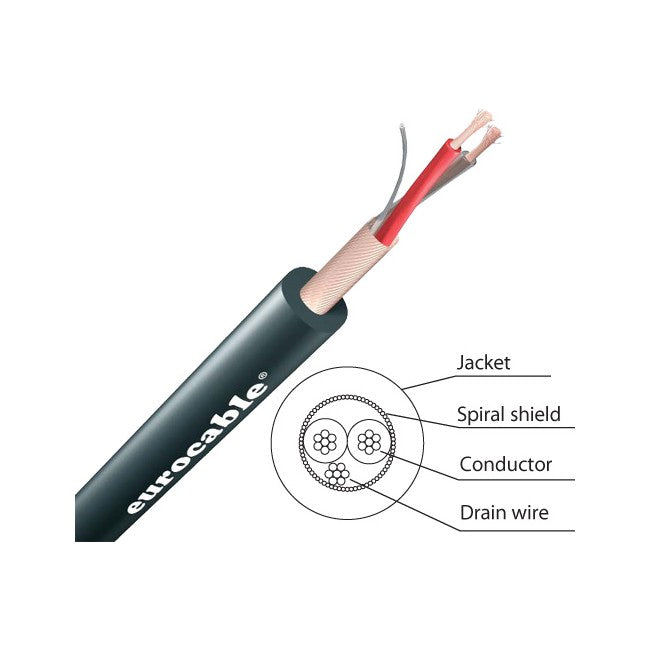

Ultra flexible with rubber & PVC sheath, suits Cannon type mic connectors

  • 2 x 23/0.12mm
  • O/D: 6.35mm
  • Insulation thickness: 0.71mm
  • Per metre

The Eurocable Extra Flex is the pro industry standard forapplications that requires the repeated rolling and unrolling of cable for staging performances, temporary gigs or PA setups. Amphenol connectors (like the AC3F) perfectly fit this cable.

The6.0 mmmicrophonecablehas been designed forrugged applications.This extremely resistant cableisanti-tramplingwhile preservinghigh flexibilityin a wide range of conditions, even at temperatures below 0 °C. It consists oftwo insulated twisted conductors and drain wire, all shielded with a high density spiralcopper forhighly efficient shieldingfrom hum, noise, radio interference and electromagnetic fields.The insulation is made fromhigh quality polyethylenewhich does not shrink, nor misshape at high temperatures when soldering.

Producted in Italy with top quality materials, this6.0 mmmicrophonecableis particularly suitable for long runs in live applications.

  • Suitable for long runs in live applications
  • Extra flexible PVC jacket

Additional information

APPLICATION

Mobile

JACKET COLOR

Black, Blue, Green, Grey, Red, Yellow

STANDARD REEL

100 m on cardboard reels

Electrical data

D.C.R. AT 20°C
Conductor < 78 ohm/km
Shield < 39 ohm/km
CAPACITANCE
CDR/CDR 1 KHz 160 pF/m
CDR/SHD 1 KHz 80 pF/m
NOMINAL IMPEDANCE 1 KHZ
600 ohm/100 m
ATTENUATION 1 KHZ
0.50 db/100 m
INDUCTANCE
< 58 µH/100 m

General data

CABLE
O.D. 6.00 mm
Standard reels 100 m
Weight 4.60 Kg/100 m
Operating temperature -5°C/+70°C
JACKET
Material PVC
Nom. Thick. 1.00 mm
SHIELD
Material Bare copper spiral shield plus 20 AWG tinned copper drain wire
Coverage 100%
CONDUCTOR
Qty 2
Strand 30 x 0.10 mm
Area/AWG 0.22 mm’/24
Insul. O.D. 1.10 mm
Material Bare copper polyethylene insulated
