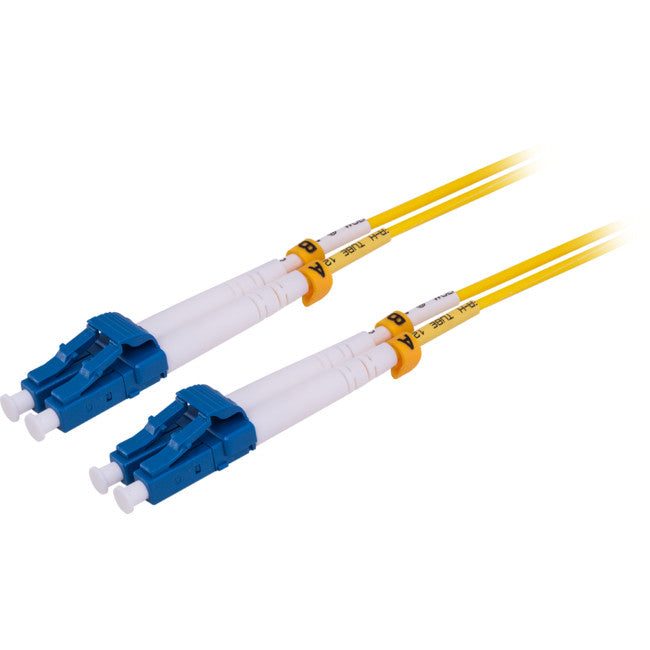

FIB150MLC SM OS2 FIBRE CABLE - 150M ROLL 150M CABLE WITH LC CONNECTOR PRO2


LC Fiber OpticPatch Cord stands for Lucent Connector. The LC is a small form-factor fiber optic connector.LC connector uses a 1.25 mm ferrule, half the size of the ST. Also, it is a standard ceramic ferrule connector. The LC has good performance and is highly favored for single mode.

Features

  • Superior qualified standard PC/UPC/APC polishing
  • Compliant with Telcordia GR-326-Core, TIA/EIA and IEC
  • 100% optic test (Insertion Loss & Return Loss)
  • 3.0mm cable
  • Duplex
  • Comply to IEC Standard
  • G652D OS2 standard
  • Flexible boot are available
  • PVC/LSZH

Applications

  • High Speed and volume Fiber Optic Transmission Systems
  • CATV Networks
  • LAN
  • Fiber Optic Instrumentation

Specification


Patch Cord/Pigtail Spec sample

Type

Single mode(UPC)

Single mode(APC)

Multi-mode (PC)

Insertion loss

=0.2 dB

=0.2 dB

=0.2 dB

Return Loss

=50 dB

=60 dB

=35 dB

Repeatability

=0.1dB

Durability

=1000matings

Operating Temperature

-40 ’ŠC to +80 ’ŠC

TensileStrength(N)

=90N (f3), =70N (f2)
