ES480P 4 X 80W POWER AMP- 4OHM -100V AUSTRALIAN MONITOR AUSTRALIAN MONITOR AJ-ES480P

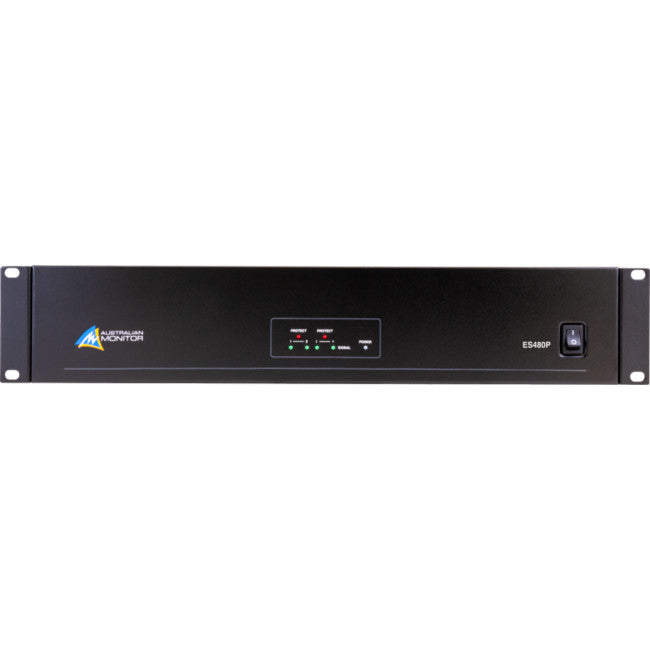

Australian Monitor ES480P 4 x 80W Power Amplifier

The ES480P power amplifier delivers 80 watts per channel at 100 volt or 4 ohm in a 2 RU package.

The ES series booster amplifiers give the audio contractor a reliable, low cost booster amplifier for applications that are price sensitive but still require highquality commercial sound reinforcement.

Features

  • 4 x 80W amplifier
  • 4 ohm and 100 volt output options
  • Rear panel volume control
  • Balanced input and thru out
  • Fan cooled
  • 2 RU



Power Amplifier

The ES amplifiers all feature a rugged power amplifier with short-circuit, over-load, and thermal protection.
Built for reliable, long term performance at a great price point.

Power Amplifier Output mode

The ES power amplifiers all offer 100V and 4? output options so you can choose the required output for your speaker application.

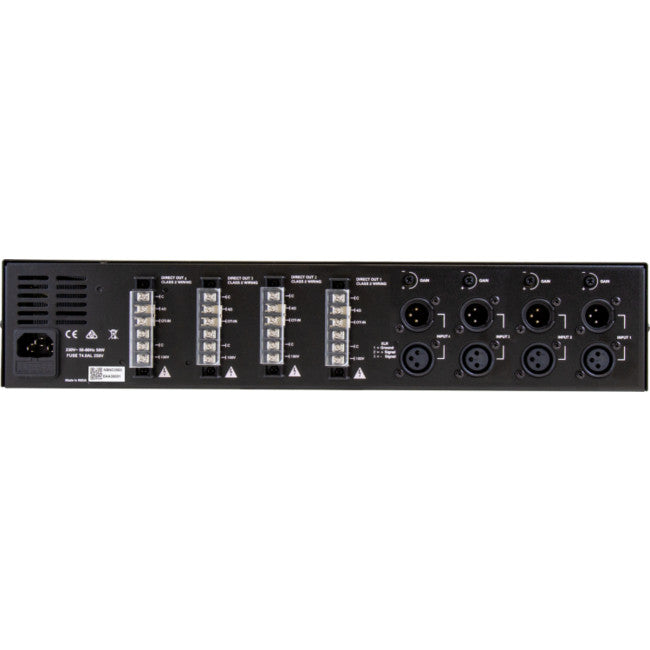

XLR Input and Through Output

The ES power amplifiers feature a female XLR input as well as a male XLR through output.

This allows easy cable daisy chaining of multiple amplifiers from a single audio source without cable splitting.

An input level attenuator is also provided to trim the inputaudio signal to the desired level for the amplifier.



Specifications

Output Power per Channel 80W Frequency Response 100Hz - 20kHz
Output Channels 4 THD+N < 0.2% (-3dB)
Output Mode 4 Ohm-100V Signal to Noise Ratio > 84dB
Input Voltage 230Vac 50-60Hz Input Sensitivity 150mVrms
Mounting 2RU Cooling Fan-assisted
Warranty 5 years
Product Dimensions
(W x D x H)
483mm x 353mm x 88mm Shipping Dimensions
(W x D x H)
556mm x 471mm x 171mm
Net Weight 9.2 Kg Shipping Weight 10.5 Kg
GTIN EAN 9323383020115
