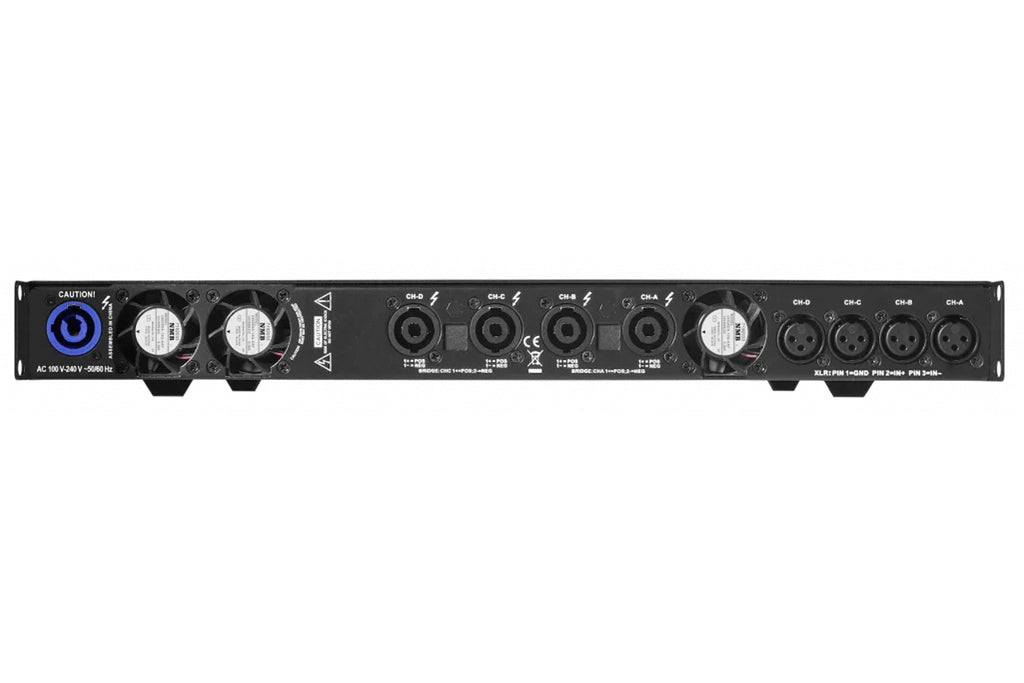

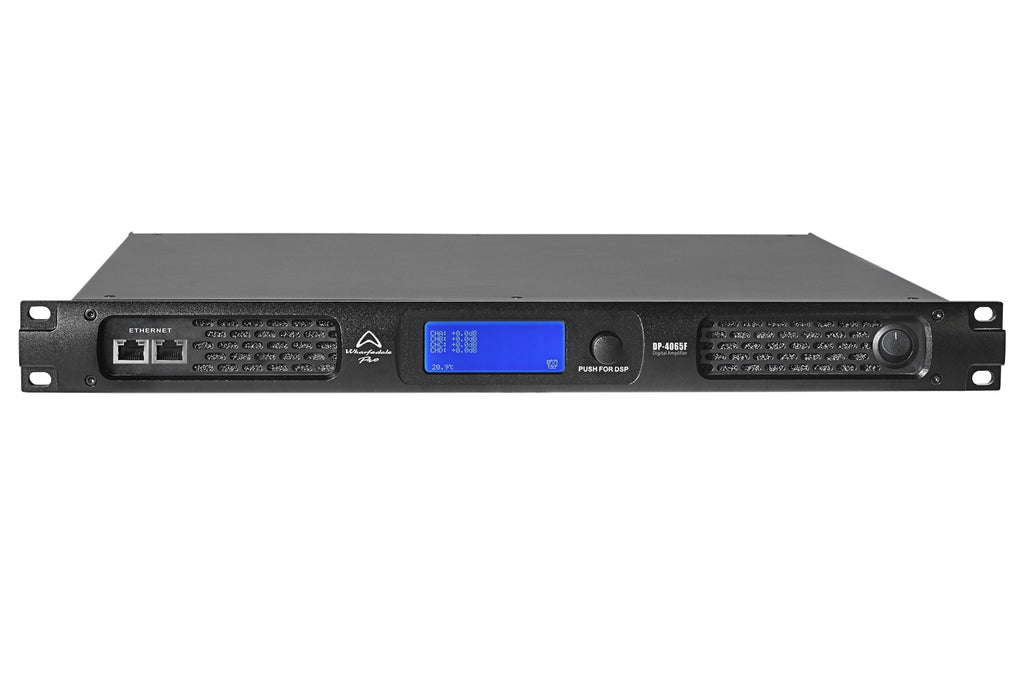

Wharfedale Pro DP-4065F Amplifier

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

DP-F SERIES

THINK DIF-FIR-ENTLY ABOUT AMPLIFIERS

  • Huge Class D power in a 1U rack
  • 4 discrete amplification channels
  • Internal DSP and computer control
  • Stable down to 2 Ω. Drive multiple speakers or line array elements
  • FIR filtering with 512 taps
  • 90 V to 260 V AC working voltage
  • Ethernet Network Connectors x 2
  • 70 V / 100 V compatible models

DP-4065F

  • 4 channels
  • 8 Ohm 4 x 650 W
  • 4 Ohm 4 x 1100 W
  • 2 Ohm 4 x 1870 W
  • 16 Ohm Bridged 2 x 1300 W
  • 8 Ohm Bridged 2 x 2200 W
  • 4 Ohm Bridged 2 x 3740 W
  • 100 V Hi-Z : No
  • 70 V Hi-Z 4 x 1100 W

TAKE CONTROL

Harnessing the power of the internal DSP

The supplied editing software gives a practical overview of all system parameters and DSP features within the DP-F amplifier.

It is simple to monitor and edit the DP-F remotely.

FIR FILTERS

FIR Filtering gives

  • Independent control of magnitude and phase.
  • More detailed equalisation.
  • Optimization of frequency and power response.

STABLE DOWN TO 2 OHMSHuge output power and stable down to 2 Ohms

The power output figures of DP-F series are staggering. The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.

DP-F amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.

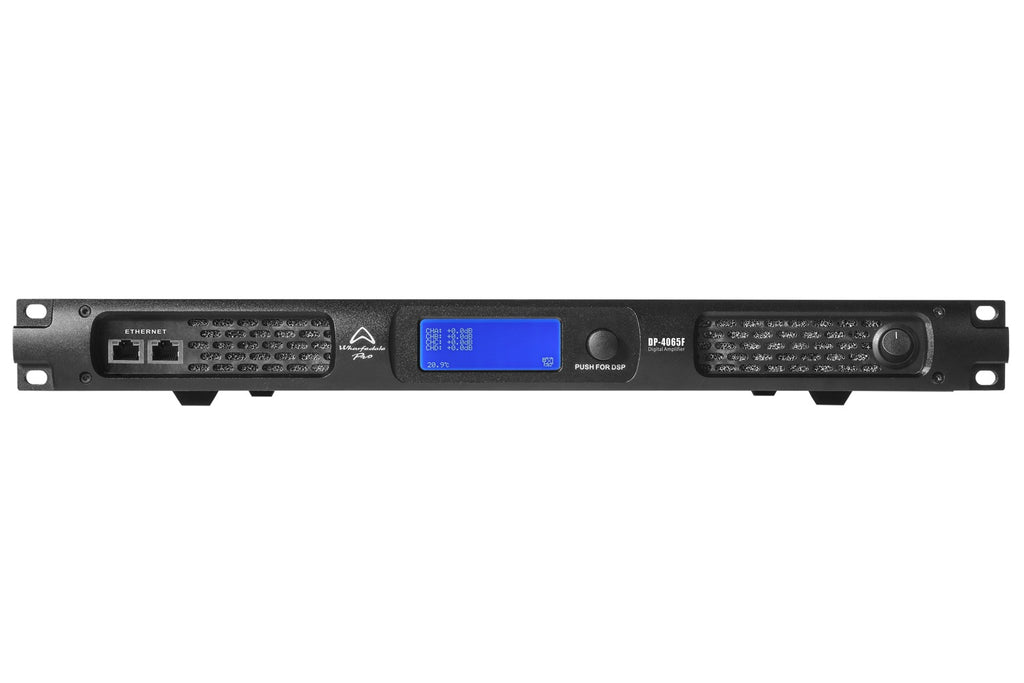

ETHERNET X 2

Control is via the Ethernet network connectors on the front.

With the supplied control software all parameters can be edited and all performance functions can be remotely monitored.

NEED DANTE ™ ?

BUILD YOUR SYSTEM

DP-F and DP-N amps are made for your big line array!

With just 3 pcs of DP-4100F or DP-4100N……massive systems can be created.

SPECIFICATIONS

Model DP-4065F
Rated Power (THD=1%,Each channel works simultaneously with continuous sinusoidal 1 KHz) 8 Ω / Stereo 4 x 650 W
4 Ω / Stereo 4 x 1100 W
2 Ω / Stereo 4 x 1870 W
16 Ω / Bridge 2 x 1300 W
8 Ω / Bridge 2 x 2200 W
4 Ω / Bridge 2 x 3740 W
100 V Hi-Z
70 V Hi-Z 4 x 1100 W
Output RMS voltage 72.1 V
Maximum Input Level 8.7 Vrms(+21 dBu)(Default Gain)
Default Gain (Rated Power,1 KHz) 19 dB
Gain(Rated Power,1 KHz) 19 dB~37 dB
THD+N Typical value:0.05%(10% Rated Power,8 Ω)
Cross-Talk ≥90 dB(20 Hz-1 KHz,Below Rated Power,8 Ω)
Frequency Response Typical value:+0,-0.5 dB(10% Rated Power,20 Hz-20 KHz,8 Ω)
Input Impedance 20 kΩ(Balance),10 kΩ(Unbalance)
Damping Factor ≥1000(20 Hz-200 Hz,8 Ω)
SNR ≥105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 Ω)
Main Power 90~260 VAC,50/60 Hz
Protection Power under-voltage protection、Amplifier output DC protection、Thermal Protection Temperature Power Control、Overload Power Control
Size(W×H×D) 483 x 45 x 376 mm
Net Weight 9.1 kg



WP DP-F user manual 20220323 (wharfedalepro.com)
