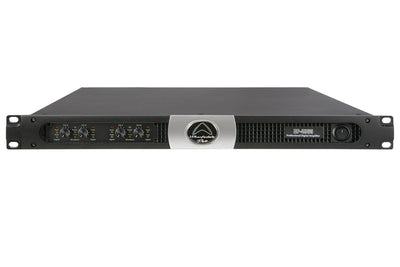

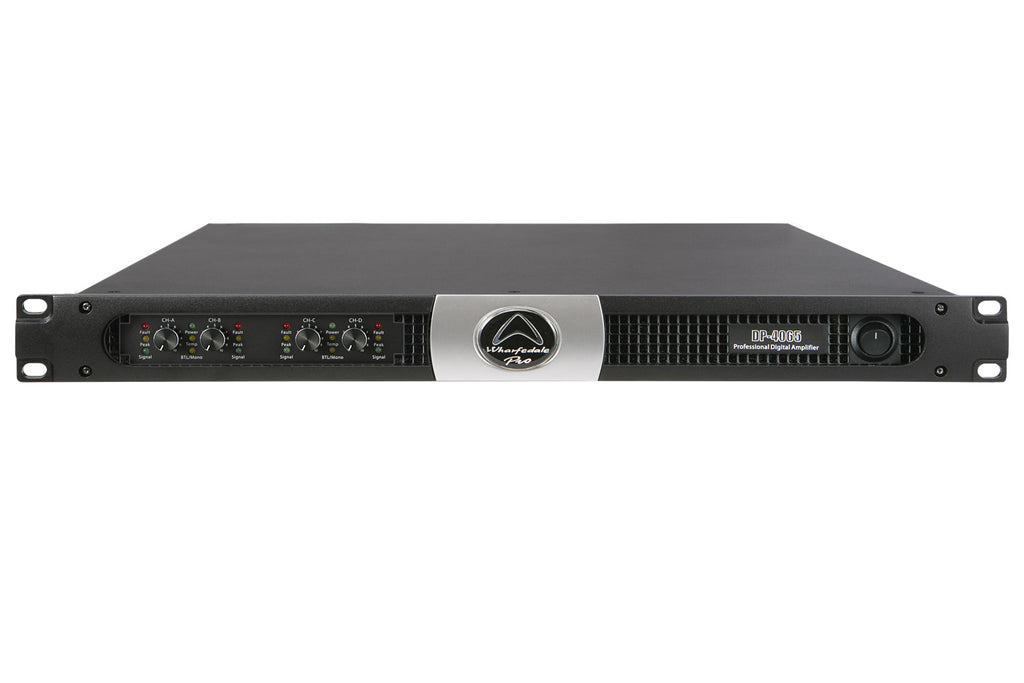

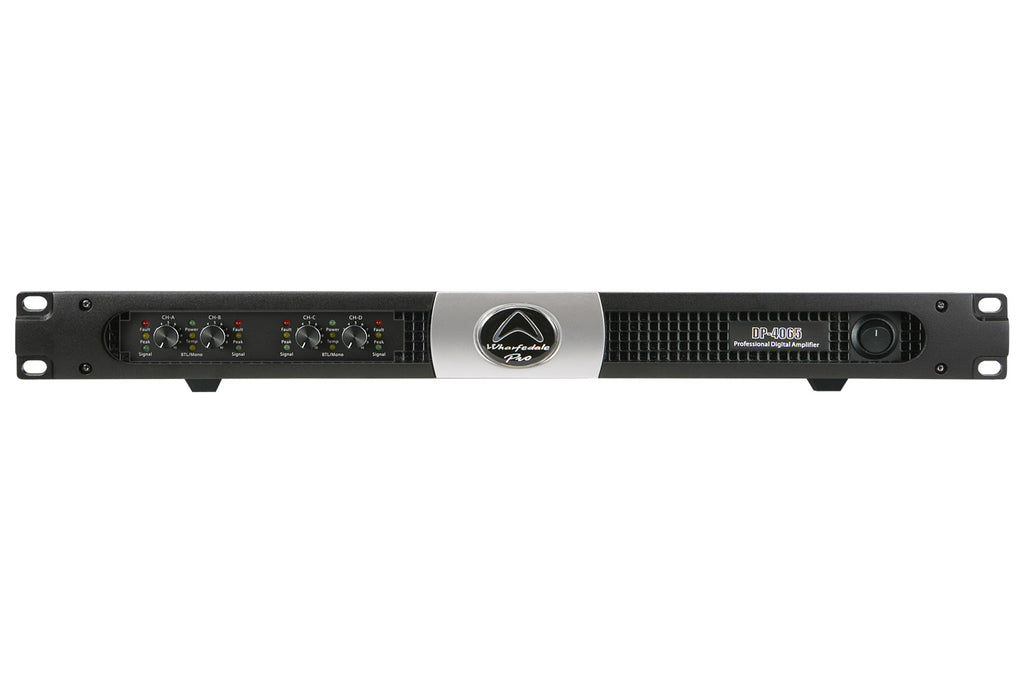

Wharfedale Pro DP-4065 Amplifier

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

DP SERIES

LIGHT ON WEIGHT. HEAVY ON POWER.

  • Super light weight
  • 4 channel models
  • Stable down to 2Ω
  • Drive multiple 8Ω and 16Ω loudspeakers
  • 1 * Stereo model generating 6800 watts @ 8 Ω BTL.
  • Ultra-quiet variable speed fans  and advanced protection circuitry
  • 70 V / 100 V compatible models

DP-4065

  • 4 channels
  • 8 Ohm 4 x 650 Watts
  • 4 Ohm 4 x 1100 Watts
  • 2 Ohm 4 x 1870 Watts
  • 16 Ohm Bridged 2 x 1300 Watts
  • 8 Ohm Bridged 2 x 2200 Watts
  • 4 Ohm Bridged 2 x 3740 Watts
  • 100 V Hi-Z : No
  • 70 V Hi-Z : 4 x 1100 Watts

STABLE DOWN TO 2 OHMS

The power output figures of DP series are staggering.  The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.

DP amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.



SPECIFICATIONS

Model DP-4065
Rated Power 8 Ω / Stereo 4 x 650 W
(THD=1%, 4 Ω / Stereo 4 x 1100 W
Each chan works
simultaneously with continuous sinusoidal 1 KHz)
2 Ω / Stereo 4 x 1870 W
16 Ω / Bridge 2 x 1300 W
8 Ω / Bridge 2 x 2200 W
4 Ω / Bridge 2 x 3740 W
100 V Hi-Z
70 V Hi-Z 4 x 1100 W
Output RMS voltage 72.1 V
Max Input Level 8.7 Vrms (+21 dBu)(Default Gain)
Default Gain
(Rated Power,1 KHz)
19 dB
Gain
(Rated Power,1 KHz)
19 dB~37 dB
THD+N Typical value:0.05% (10% Rated Power,8 Ω)
Cross-Talk ≥90 dB (20 Hz-1 KHz, below Rated Power,8 Ω)
Frequency Response Typical value:+0,-0.5 dB (10% Rated Power,20 Hz-20 KHz,8 Ω)
Input Impedance 20 kΩ (Balanced), 10 kΩ (Unbalanced)
Damping Factor ≥1000 (20 Hz-200 Hz,8 Ω)
SNR ≥105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 Ω)
Main Power 90~260 VAC,50/60 Hz
Protection Power under-voltage, Amplifier output DC, Thermal, Temp Power Control, Overload Power Control
Size(W×H×D) mm 483 x 45 x 376
Net Weight 9.1 kg



Download user manual
