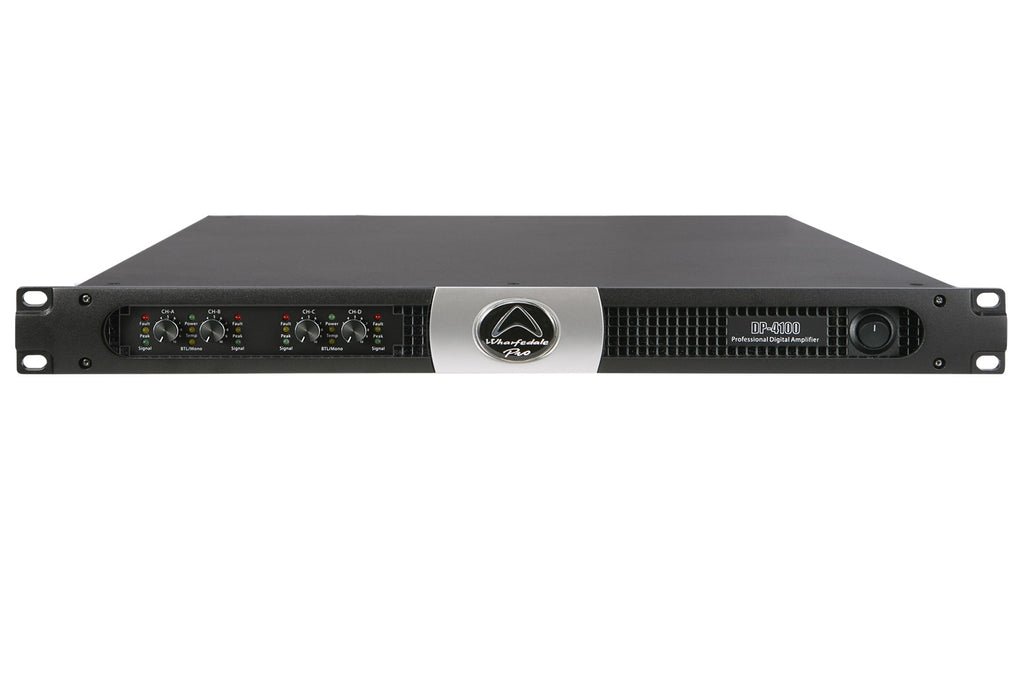

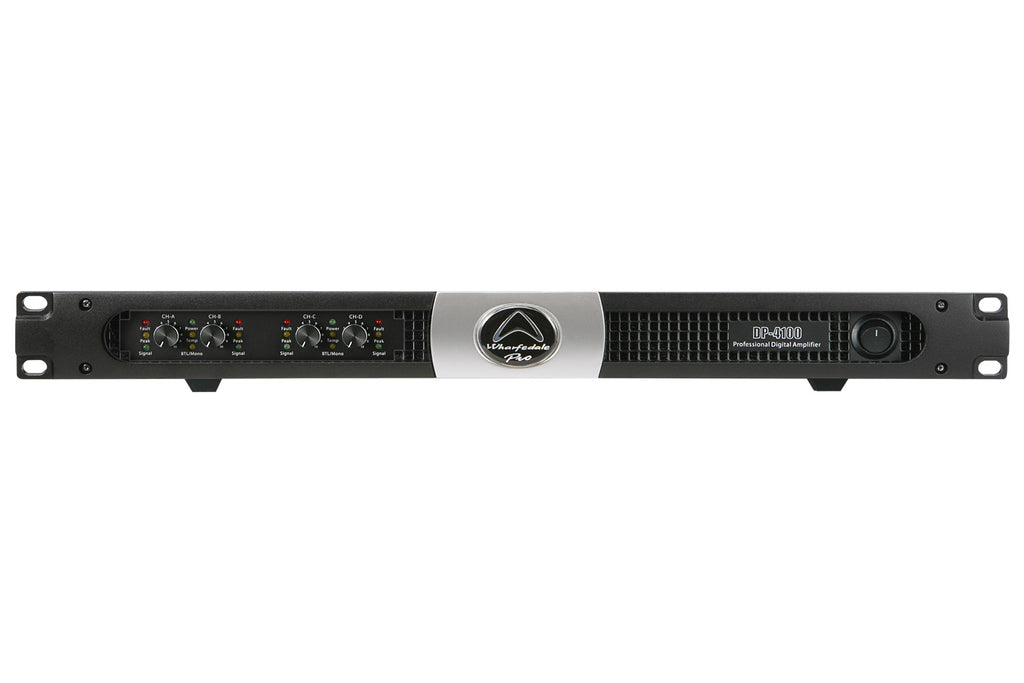

Wharfedale Pro DP-4100 Amplifier

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

DP SERIES

LIGHT ON WEIGHT. HEAVY ON POWER.

  • Super light weight
  • 4 channel models
  • Stable down to 2Ω
  • Drive multiple 8Ω and 16Ω loudspeakers
  • 1 * Stereo model generating 6800 watts @ 8 Ω BTL.
  • Ultra-quiet variable speed fans  and advanced protection circuitry
  • 70 V / 100 V compatible models

DP-4100

  • 4 channels
  • 8 Ohm 4 x 1000 Watts
  • 4 Ohm 4 x 1700 Watts
  • 2 Ohm 4 x 2890 Watts
  • 16 Ohm Bridged 2 x 2000 Watts
  • 8 Ohm Bridged 2 x 3400 Watts
  • 4 Ohm Bridged 2 x 5780 Watts
  • 100 V Hi-Z : No
  • 70 V Hi-Z : 4 x 1700 Watts


STABLE DOWN TO 2 OHMS

The power output figures of DP series are staggering.  The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.

DP amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.



SPECIFICATIONS



Model DP-4100
Rated Power 8 Ω / Stereo 4 x 1000 W
(THD=1%, 4 Ω / Stereo 4 x 1700 W
Each chan works
simultaneously with
continuous sinusoidal 1 KHz)
2 Ω / Stereo 4 x 2890 W
16 Ω / Bridge 2 x 2000 W
8 Ω / Bridge 2 x 3400 W
4 Ω / Bridge 2 x 5780 W
100 V Hi-Z
70 V Hi-Z 4 x 1700 W
Output RMS voltage 89.4 V
Max Input Level 8.7 Vrms (+21 dBu)(Default Gain)
Default Gain
(Rated Power,1 KHz)
21 dB
Gain (Rated Power,1 KHz) 21 dB~39 dB
THD+N Typical value:0.05% (10% Rated Power,8 Ω)
Cross-Talk ≥90 dB (20 Hz-1 KHz, below Rated Power,8 Ω)
Frequency Response Typical value:+0,-0.5 dB (10% Rated Power,20 Hz-20 KHz,8 Ω)
Input Impedance 20 kΩ (Balanced), 10 kΩ (Unbalanced)
Damping Factor ≥1000 (20 Hz-200 Hz,8 Ω)
SNR ≥105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 Ω)
Main Power 90~260 VAC,50/60 Hz
Protection Power under-voltage, Amplifier output DC, Thermal, Temp Power Control, Overload Power Control
Size(W×H×D) mm 483 x 45 x 376
Net Weight 9.1 kg



Download user manual
