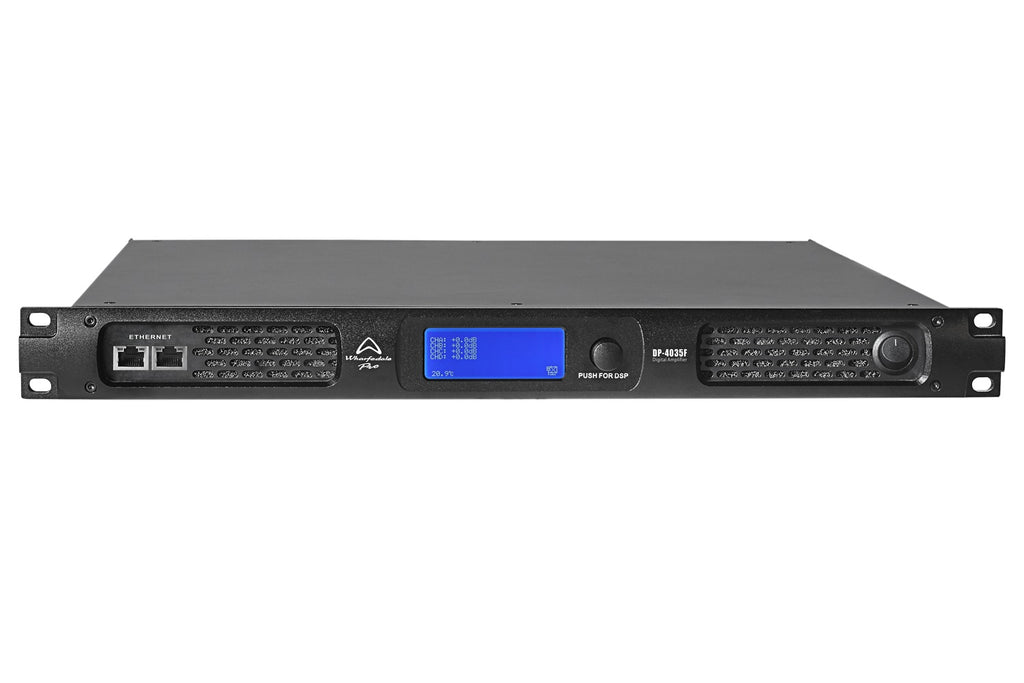

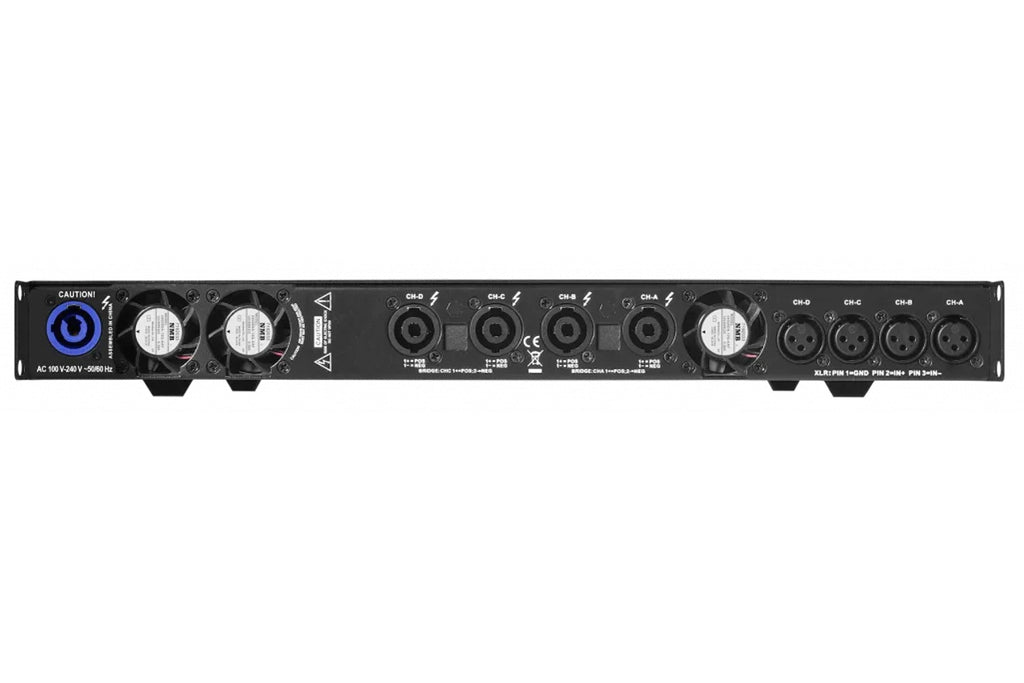

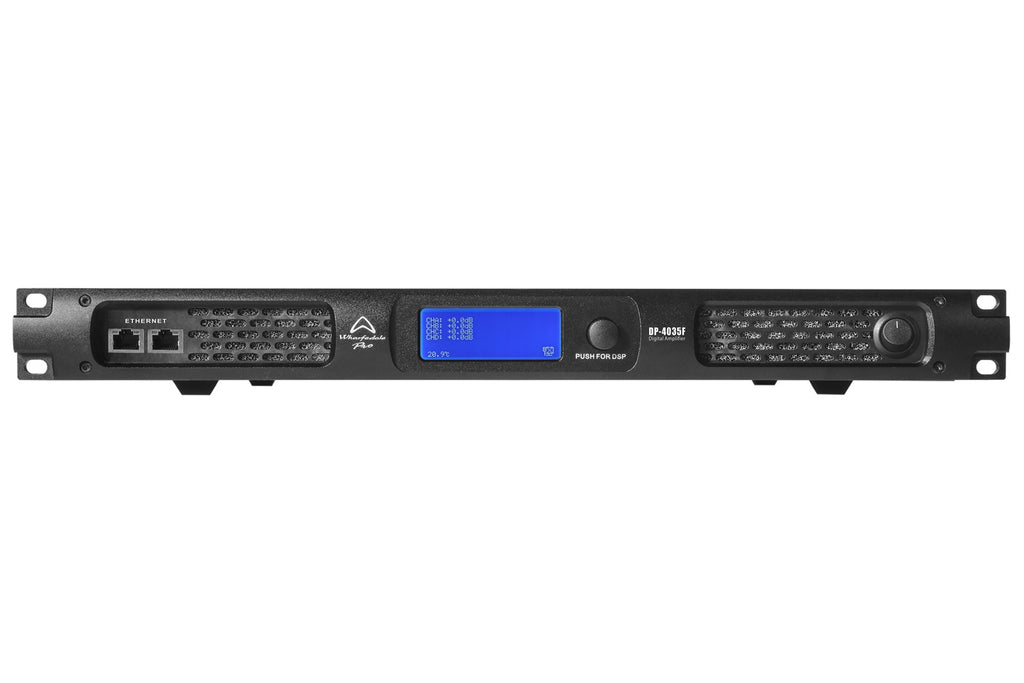

Wharfedale Pro DP-4035F Amplifier

Sold Out $1,749.00

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

DP-F SERIES

THINK DIF-FIR-ENTLY ABOUT AMPLIFIERS

Huge Class D power in a 1U rack
4 discrete amplification channels
Internal DSP and computer control
Stable down to 2 Ω. Drive multiple speakers or line array elements
FIR filtering with 512 taps
90 V to 260 V AC working voltage
Ethernet Network Connectors x 2
70 V / 100 V compatible models

DP-4035F

4 channels
8 Ohm 4 x 350 W
4 Ohm 4 x 595 W
2 Ohm 4 x 1010 W
16 Ohm Bridged 2 x 700 W
8 Ohm Bridged 2 x 1190 W
4 Ohm Bridged 2 x 2020 W
100 V Hi-Z : No
70 V Hi-Z : No

TAKE CONTROL

Harnessing the power of the internal DSP

The supplied editing software gives a practical overview of all system parameters and DSP features within the DP-F amplifier.

It is simple to monitor and edit the DP-F remotely.

FIR FILTERS

FIR Filtering gives

Independent control of magnitude and phase.
More detailed equalisation.
Optimization of frequency and power response.

STABLE DOWN TO 2 OHMSHuge output power and stable down to 2 Ohms

The power output figures of DP-F series are staggering. The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.

DP-F amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.

ETHERNET X 2

Control is via the Ethernet network connectors on the front.

With the supplied control software all parameters can be edited and all performance functions can be remotely monitored.

BUILD YOUR SYSTEM

DP-F and DP-N amps are made for your big line array! With just 3 pcs of DP-4100F or DP-4100N……massive systems can be created.

SPECIFICATIONS

Model	DP-4035F
Rated Power (THD=1%,Each channel works simultaneously with continuous sinusoidal 1 KHz)	8 Ω / Stereo	4 x 350 W
	4 Ω / Stereo	4 x 595 W
	2 Ω / Stereo	4 x 1010 W
	16 Ω / Bridge	2 x 700 W
	8 Ω / Bridge	2 x 1190 W
	4 Ω / Bridge	2 x 2020 W
	100 V Hi-Z	–
	70 V Hi-Z	–
Output RMS voltage		52.9 V
Maximum Input Level		8.7 Vrms(+21 dBu)(Default Gain)
Default Gain (Rated Power,1 KHz)		17 dB
Gain(Rated Power,1 KHz)		17 dB~35 dB
THD+N		Typical value:0.05%(10% Rated Power,8 Ω)
Cross-Talk		≥90 dB(20 Hz-1 KHz,Below Rated Power,8 Ω)
Frequency Response		Typical value:+0,-0.5 dB(10% Rated Power,20 Hz-20 KHz,8 Ω)
Input Impedance		20 kΩ(Balance),10 kΩ(Unbalance)
Damping Factor		≥1000(20 Hz-200 Hz,8 Ω)
SNR		≥105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 Ω)
Main Power		90~260 VAC,50/60 Hz
Protection		Power under-voltage protection、Amplifier output DC protection、Thermal Protection、 Temperature Power Control、Overload Power Control
Size(W×H×D)		483 x 45 x 376 mm
Net Weight		8.0 kg
