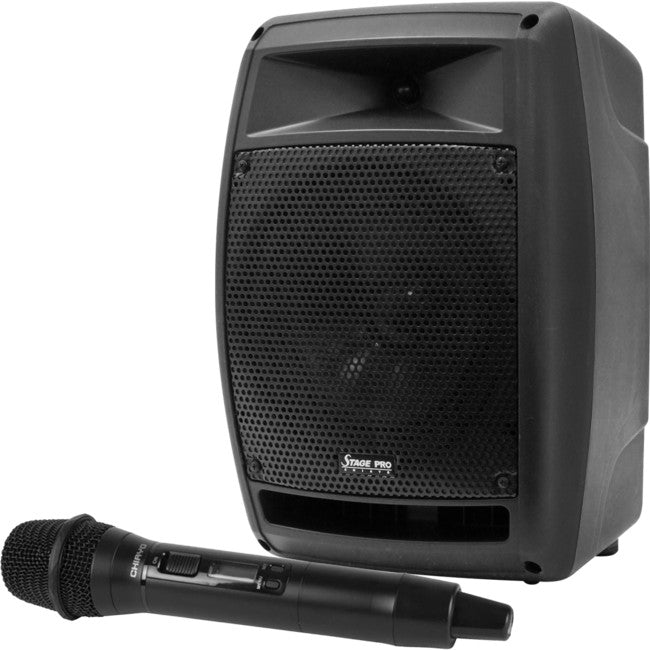

Chiayo CHSTPROH-5A Stage Pro - Portable Wireless sound system
-

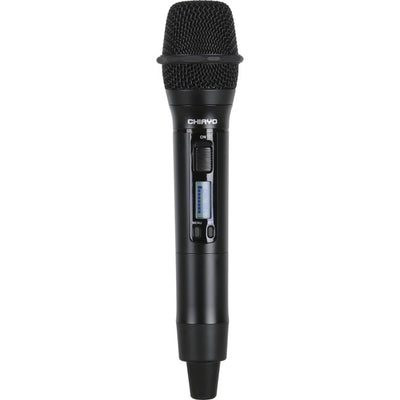

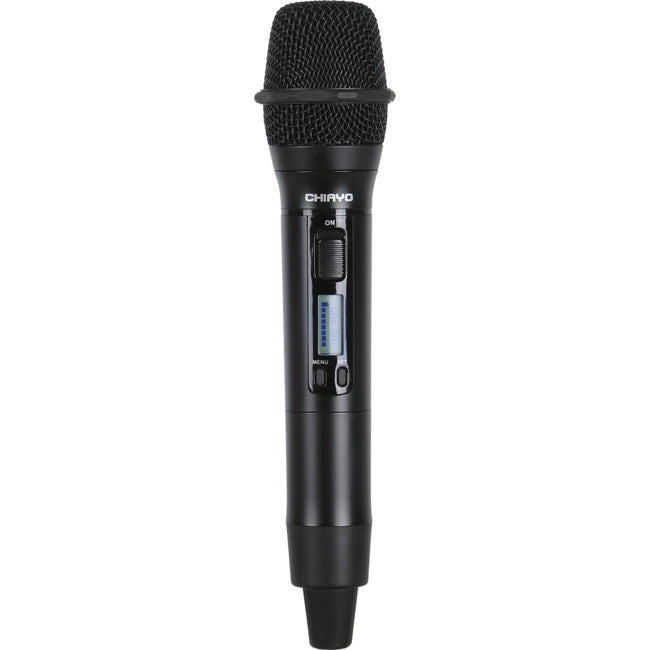

Includes 1 x CH-SDR8200M-5A Receiver & 1 x CH-SQ5100D-5A Hand held Mic

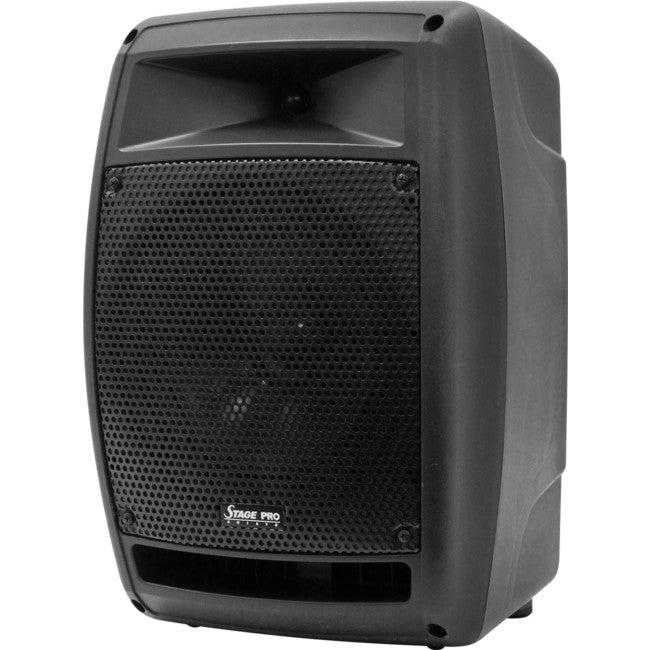

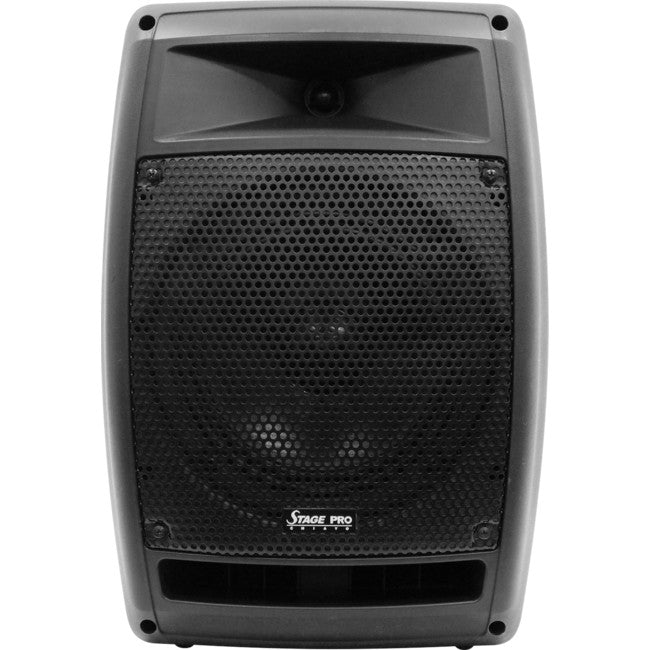

Ruggedly built, powerful lightweight compact ABS wirelessportable sound system
The Chiayo StagePro Portable PA System has finally arrived. Compact, light weight (13.5kg) it is set to deliver150Watts of pure class D power.
Complete with an 8" Low frequency driver (100Watts) and 1” High frequency driver (50Watts) it will pack a punch.
Some of the handy features include:
Internal Rechargeable battery & DC jack with extendedbattery operating times (up to 10 hours speech or up to 4-6 music) per charge with rechargeable lead acid battery.
User friendly battery compartment design for simple battery replacement and a smart charging circuit with 4-stepLED battery indicators and charging LED.
Bluetooth connectivity, media playback & recording device, and a full set of EQ controls as standard.
It is versatile enough to be used in almost any environment.
Ideal applications include:
- Schools
- Meetings / Promotions / Presentations
- Tour guides
- Spruikers
- Marriage Celebrants
- Sporting Applications
Features
- Ruggedly built compact ABS speaker enclosure.
- 200W Class-D amplifier to power 8” woofer and 1” tweeter and electronic crossover.
- Up to 4 diversity receiver modules with 100 frequencies.(optional) with MB50
- Scan and Sync button for quick and simple mic channel set-up.
- Ships with DPRB600M Dig rec/player with USB and Bluetooth

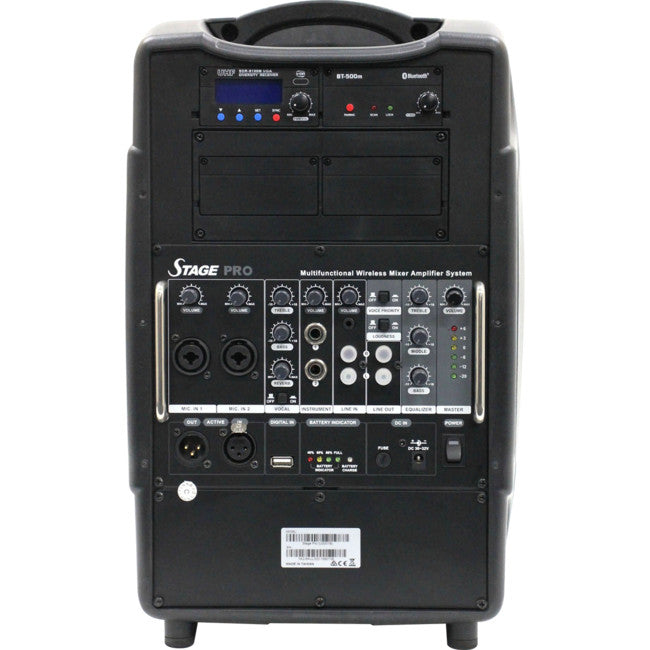

- MIC IN 1 and 2 are XLR/Φ6.3mm combo jack connectors for microphone input with individual volume control.
- INSTRUMENT IN provides two Φ6.3mm jacks with separate level control
- LINE IN (RCA L/R & Φ3.5mm jacks) with volume control.
- DIGITAL IN (USB 2.0) allows playing audio files directly from computer via USB cable.
- ACTIVE IN/OUT (XLR jacks) for connection of STAGEPSR active slave speaker.
- LINE OUT (RCA L/R jack) for external audio recording.
- 2-band equalizer (BASS / TREBLE) for wired microphones.
- 3-band equalizer (BASS / MIDDLE / TREBLE) for music.
- VOICE PRIORITY automatically ducks music when a microphone is used (switchable).
- REVERB with bypass for wired and wireless microphones (switchable).
- LOUDNESS function boosts bass/treble performance (switchable).
- Digital limiter prevents output distortion, with 6-step LED audio meter indicator.
- Smart charging circuit with 4-step LED battery indicators and charging LED.
- User friendly battery compartment design for simple battery replacement.
- Tripod stand mountable with ST-50 or ST51.
- Up to to 10 hours operating time per charge
- 2 power modes: Internal Rechargeable battery & DC jack.
- Includes DC35 dust cover
Specifications
- Model: STAGE PRO
- Max power output: 200W, 4Ω load (class-D)
- Speaker system: 8"LF + 1"HF & electronic crossover
- Audio input: Mic in x2 (COMBO), Line in x2 (R/L, 3.5mm), Instrument in x2, Active in,
Digital in (USB) - Audio output: Line out (R/L), Active out
- T.H.D.: < 0.5%
- Freq. response: 50Hz-20KHz±3dB
- Antenna: Built-in
- Power supply: 100-240V AC, 30-32V DC/4A
- Battery type: Lead-Acid Lithium
- Battery spec: 12V/5A 25.9V/7.8A
- Battery Q'ty: 2 1
- Standby time: 5-6 hours in music, >10 hours in speech 8-10 hours in music, >12 hours in speech
- Charging time: about 6 hours about 8 hours
- Dimension (mm): 424(H) x 290(W) x 250(D)
- Weight (kg): 12.5 9.5
Model Options
| Base model only |
| One Handheld wireless microphone |
| One Beltpack wireless microphone |
| Two Handheld wireless microphones |
| Two Beltpack wireless microphones |
| One Handheld & One Beltpack microphone |
** NOTE: All beltpacks come with a lapel mic
