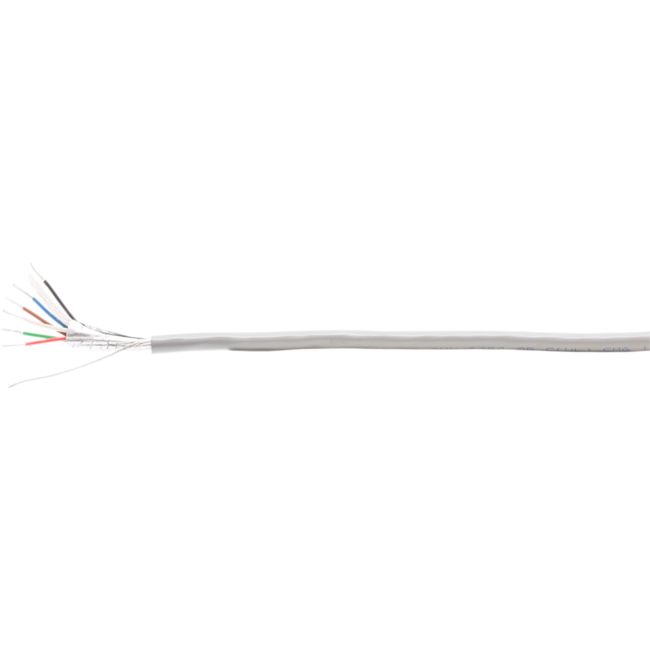

B9536-1M MULTICONDUCTOR CABLE RS232 -1M 305M ROLL BELDEN BEL9536-R305-CE

B9536-1M MULTICONDUCTOR CABLE RS232 -1M 305M ROLL BELDEN BEL9536-R305-CE

BELDEN - 9536 - CABLE 9536, 6CORE, PER M

Product Information

  • CABLE 9536, 6CORE, PER M
  • Reel Length (Metric): - 305
  • No. of Conductors: 6
  • Conductor Size AWG: 24AWG
  • Voltage Rating: 300V
  • No. of Max Strands x Strand Size: 7 x 0.2mm
  • Conductor Area CSA: 0.2mm’
  • Jacket Colour: Chrome
  • Jacket Material: PVC (Polyvinyl Chloride)
  • External Diameter: 5.31mm
  • Conductor Material: Copper
  • SVHC: No SVHC (16-Jun-2014)
  • Alpha Type Number: 6306 EQUIVALENT
  • Approval Bodies: CSA, SRPVC, UL
  • Belden Type Number: 9536
  • Cable Type: Foil Shield
  • Cable UL Style Number: UL2464
  • Conductor Make-up: 7 / 32AWG
  • Current Rating: 1.75A
  • Flammability Rating: VW-1
  • No. of Cores: 6
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -30°C
  • Outer Diameter: 5.31mm
  • Screen Type Primary: Aluminium Polyester
  • Secondary Insulation Colour: Chrome
  • Secondary Insulation Material: PVC
  • Wire Size: 24AWG

Data Sheet
