Online Stock Only.
For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.
METRE CODE:
Please note that this product is sold in METRES.
Ensure that your order quantity matches your desired length (ie. 30 for 30m).
Length in brackets- eg. (100m) denotes available roll length.

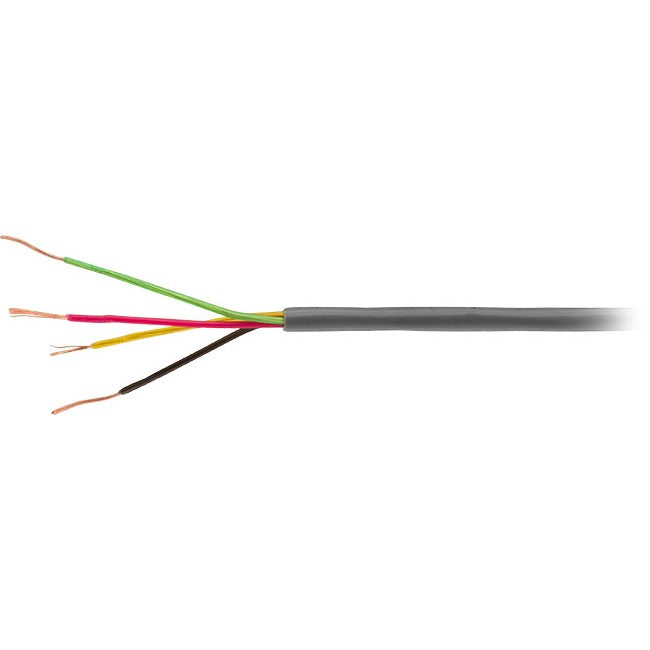

- 7 x 0.2mm stranded plain copper conductors
- Colour coded cores
- Grey PVC sheath
- Austel Approved
- Low voltage applications, like Security, Audio, etc.
- 4 core (4.8mmØ)
- Per metre
Common / Recommended Colour codes
| | PIR & other Security devices* | RS485 Data Bus |
| | +PWR (Typ 12VDC) | +PWR |
| | Common (Tamper) | Data A (+) |
| | PIR (Alarm) | Data B (–) |
| | PWR GND | GND |
*Resistors are supplied with NESS PIRs that will linka "tamper" socket to an "alarm" socket. Follow the above for remaining connections.
