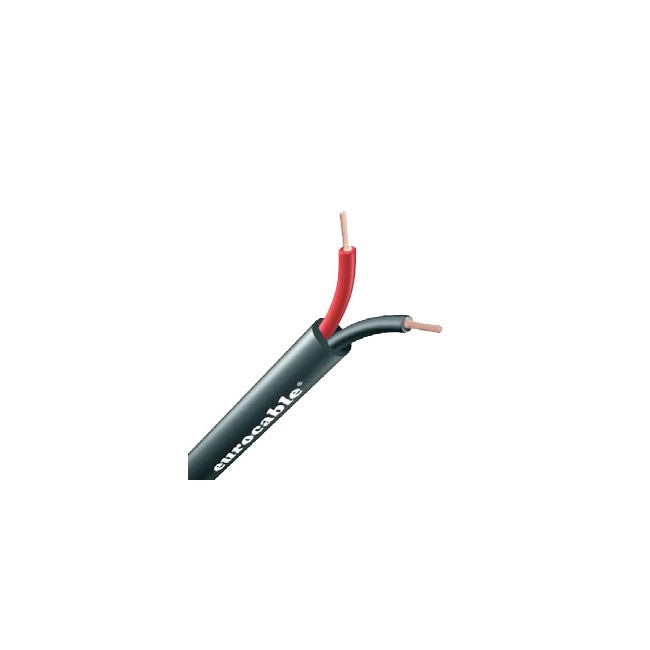

02N15-1M 1.5MM SPEAKER CABLE - 1M POLYURETHANE PUR JACKET EUROCABLE EU 02N15

Key features of eurocable flame retardant speaker cables are their extreme flexibility and superior strength.

A whole range of versions and configurations suitable fordifferent applications are available.

Features

Two twisted insulated conductors enclosed within a single round jacket.

Applications

Outdoor and internal wiring.

Available per metre



  • Colour - Black
  • Conductor Size - 1.5 mm2
  • Material Bare copper fire resistant PVC insulated
  • Outside Diameter - 8.00 mm
  • Roll Length - 100 metre
  • Weight - 9.60 Kg per 100 metre



SPECIFICATIONS:

CVS LK CODE   02N15
GENERAL DATA
CABLE OD 8.00 mm
  STANDARD REELS 100 m
  WEIGHT Kg / 100 m 9.60

JACKET MATERIAL PVC FLAME RETARDANT
  NOMINAL THICKNESS 1.20 mm

CONDUCTOR D.C.R ( ohm / klm ) AT 20 degrees Centigrade 13
  QUANTITY / STRAND 2 x 48 x 0.2
  AREA / AWG 1.5 mm SQ / 16
  INSULATION OD 2.8
  MATERIAL BARE COPPER FIRE RESISTANT PVC INSULATED
