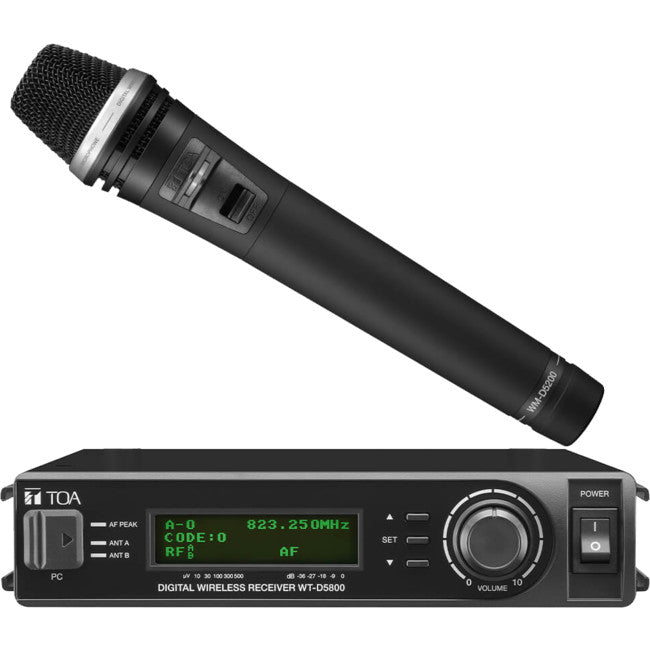

TOA WTD5800HTC Digital UHF Wireless Microphone Receiver kit –
Consists of
Launch into the world of reliable TOA wireless microphonesystems.

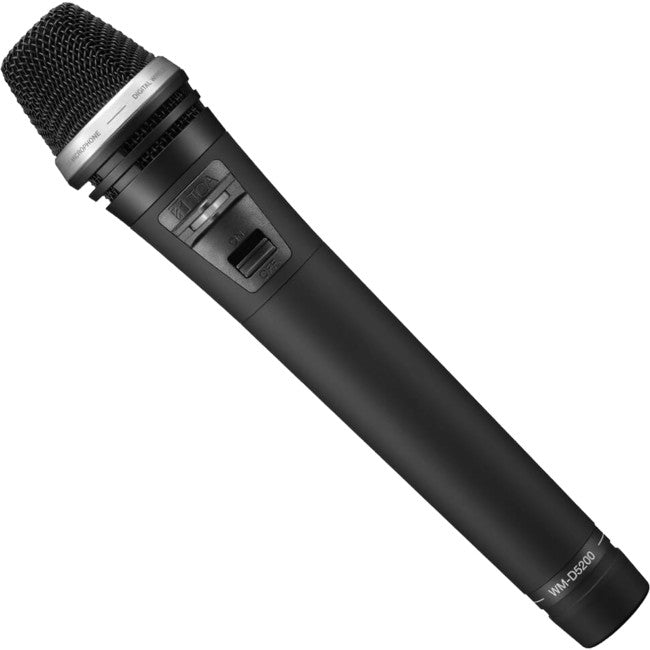

Designed for use with a range of wireless microphones, handheld to lapels, to headsets.

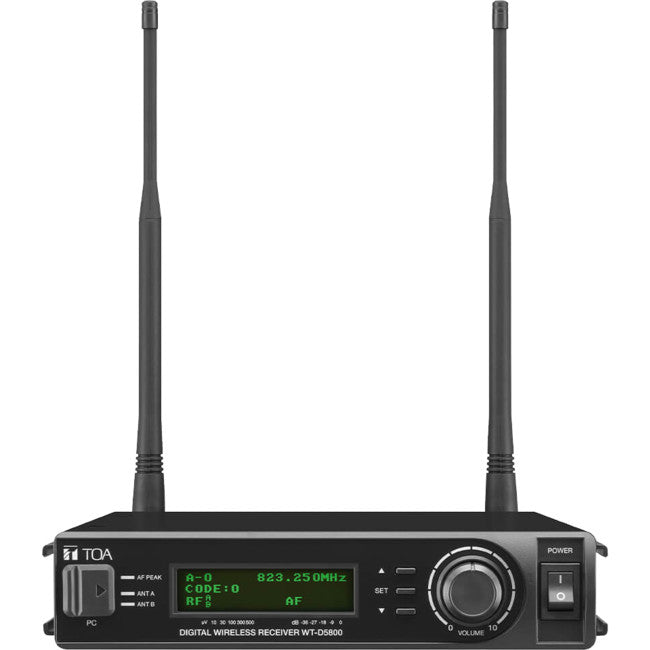

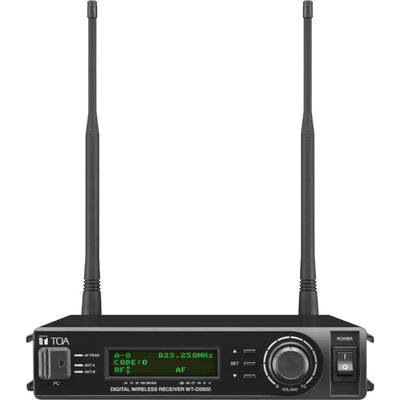

Employing a digital reception system that is virtually immune to interference and noise, the TOA WTD5800P Wireless Receiver ensures stable radio signal reception.
Additionally, this receiver features a host of convenient functions, such as external equipment control by way of contact outputs, and system status monitoring by way of its maintenance software, enabling highly reliable operation.
The TOA D5000 Series provides unprecedented speech clarity for delivering the presenter’s voice to audiences in any speaking scenario.
Experience for yourself the clarity, ease and safety of this wireless solution, whether for the classroom, office meeting rooms, banquet halls, courthouses, or multipurpose halls.
TOA’s proprietary digital audio processing ensures optimal sound quality and intelligibility for speech applications.
| Power Source | AC mains (supplied AC adapter must be used) |
|---|---|
| Current Consumption | 350 mA (13.5 V) |
| Frequency Range | EC4/EC7 ver.: 794 – 832 MHz, EG1/GG1/-G1 ver.: 606 – 636 MHz, RH1 ver.:576 – 606 MHz |
| Channel Selectable | 160 selectable frequencies |
| Receiving System | Double super-heterodyne |
| Diversity system | Space diversity (digital diversity) |
| Mixing Output | MIC/LINE (selectable): -60 dB (*1) (MIC)/-20 dB (*1) (LINE), 600 Ω phone jack (unbalanced), 600 Ω XLR-3-32 type connector (balanced) |
| Mixing Input | -20 dB (*1), 10 kΩ, unbalanced, phone jack |
| Antenna Input | 75 Ω, BNC (phantom powering for antenna), 9 V DC, 30 mA (max) |
| Antenna Output | 75 Ω, BNC (Gain 0 dB) |
| Contact Output | 1 channel, no-voltage make contact output, withstand voltage: 30 V DC, control current 0.5 A max, terminal block (2 pins) |
| Receiving Sensitivity | 24 dBµV or less (Bit error rate:1E-5 or less) |
| Antenna Input Attenuator | 0 dB/-10 dB switchable |
| Indicator | Audio (5 steps), RF (5 steps), ANT A/B, Audio (peak), Battery alarm |
| Frequency Response | 50 Hz – 12 kHz |
| Total Harmonic Distortion | 0.5 % or less |
| Function | Frequencies scanning, Feedback suppressor, Equalizer (optimizing each compatible microphone) |
| ID Selectable | 10 patterns |
| Operating Temperature | -10 °C to +50 °C (14 ?F to 122 ?F) |
| Operating Humidity | 30 % to 85 %RH (no condensation) |
| Finish | Resin, black |
| Dimensions | 210 (W) x 44 (H) x 211.9 (D) mm (8.27 in x 1.73 inx 8.34 in) |
| Weight | 730 g (1.61 lb) |
| Accessory | AC adapter (*2) ?1, Whip antenna ?2, Rubber foot ?4 |
| Option | Rack mounting bracket kit: MB-WT3 (for rack mounting one WT-D5800 unit), MB-WT4 (for rack mounting two WT-D5800 units) |
