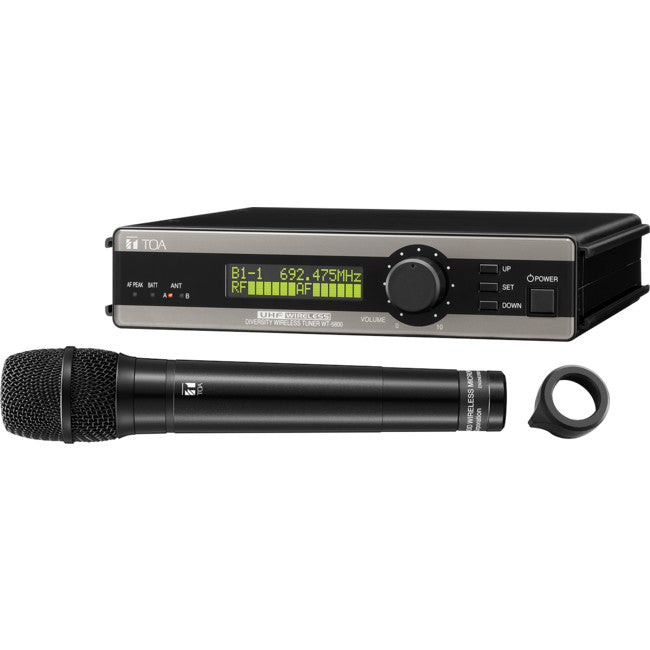

The Toa WT5800HTPD Kit comprises

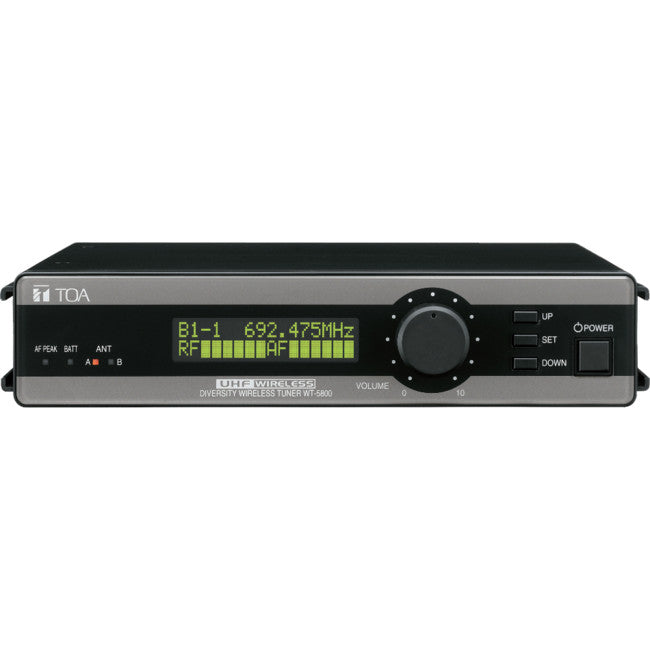

The wireless tuner WT-5800 is a PLL-synthesizer controlled double superheterodyne true diversity tuner to beused in UHF wireless systems.
It employs a compander noise reduction circuit to minimize the influence of the ambient RF noise.

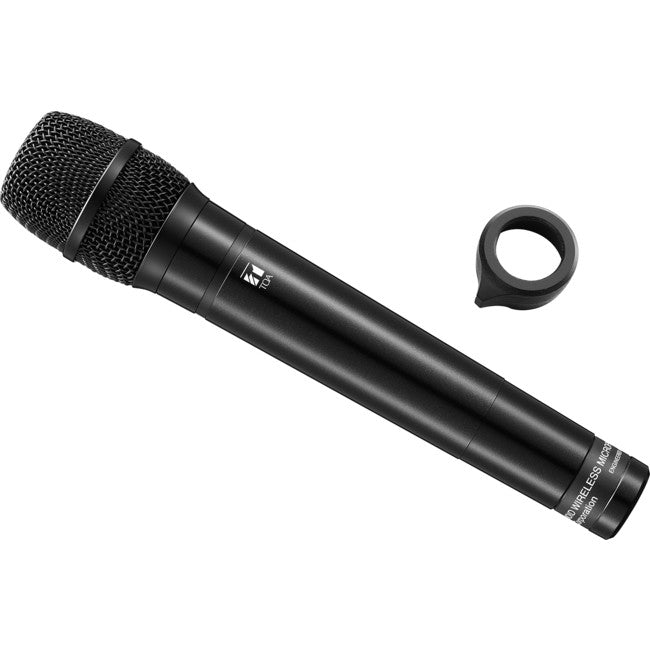

64 Channel Dynamic Vocal Microphone with Metal Body
| Power Source | AC mains (supplied AC adapter must be used) |
|---|---|
| Power Consumption | 250 mA (12 V DC) |
| Receiving Frequency | 576 - 865 MHz (*2), UHF |
| Channel Selectable | 64 selectable frequencies |
| Receiving System | Double super-heterodyne |
| Diversity System | Space diversity (true diversity) |

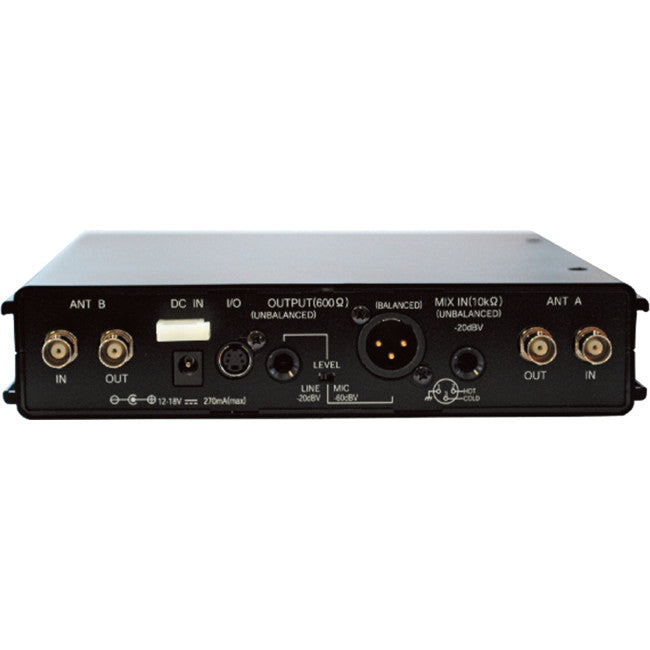

| Mixing Output | MIC/LINE (selectable): -60 dB (*1) (MIC)/-20 dB (*1)(LINE), 600 O phone jack (unbalanced), 600 O XLR-3-32 type connector(balanced) |
| Mixing Input | -20 dB (*1), 10 kO, unbalanced, phone jack |
| Antenna Input | 75 O, BNC (phantom powering for antenna), 9 V DC, 30mA (max) |
| Antenna Output | 75 O, BNC (Gain 0 dB) |
| Receiving Sensitivity | 90 dB or more, Signal to Noise ratio (20 dBµV input, 40 kHz deviation) |
| Squelch Sensitivity | 16 - 40 dBµV variable |
| Squelch System | Using together of noise SQ, carrier SQ and tone SQ |
| Tone Frequency | 32.768 kHz |
| Indicator | Audio (6 step), RF (6 step), ANT A/B, Audio (peak), Battery alarm |
| Channel Check | Usable frequencies scanning |
| Signal to Noise Ratio | 110 dB or more (A-weight, unbalanced output) |
| Harmonic Distortion | 1 % or less (typical) |
| Frequency Response | 100 Hz - 15 kHz, ±3 dB |
| Operating Temperature | -10 ? to +50 ? (14 ?F to 122 ?F) |
| Operating Humidity | 30 % to 85 %RH |
| Finish | Resin, black |
| Dimensions | 210 (W) × 44 (H) × 205.1 (D) mm (8.27" × 1.73" × 8.07") |
| Weight | 700 g (1.54 lb) |
| Accessory | AC adapter (*3)?1, Whip antenna?2, Rubber foot?4 |
| Option | Mounting bracket kit: MB-WT3 (for rack mounting one WT-5800 unit) MB-WT4 (for rack mounting two WT-5800 units) |
| Version | Receiving Frequency |
| F01 | 636 - 666 MHz, UHF |
| H01 | 576 - 606 MHz, UHF |
