$979.00
WT-5810
WM-5325
All Toa stock we have is F01 band (636-666MHz)
For other regions there is also H01 band (578-606MHz) Only for areas where F01 (636-666MHZ) wireless models can?t be used, will be able to order in H01 frequency models (578-606MHz) as indent item! toafrequencycheck.australismusic.com.au/

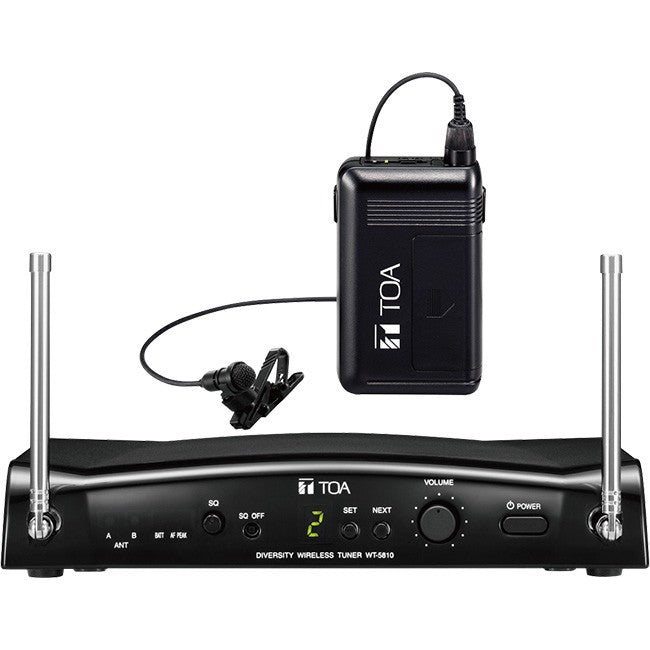

WT-5810 Wireless Tuner
WM-5325 Wireless Transmitter
WT-5810 UHF Wireless Tuner
| Power Source | AC mains (supplied AC adapter must be used) |
|---|---|
| Power Consumption | 130 mA (12 V DC) |
| Receiving Frequency | 636 - 666 MHz, UHF |
| Channel Selectable | 16 channels |
| Receiving System | Double super-heterodyne |
| Diversity System | Space diversity |
| Mixing Output | MIC: -60 dB (*1), 600 Ω, balanced, XLR-3-32 type connector LINE: -20 dB (*1), 600 Ω, unbalanced, phone jack |
| Mixing Input | -20 dB (*1), 10 kΩ, unbalanced, phone jack |
| Antenna | Whip antenna |
| Receiving Sensitivity | 90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation) |
| Squelch Sensitivity | 16 - 40 dBμV variable |
| Squelch System | Using together of noise SQ, carrier SQ andtone SQ |
| Tone Frequency | 32.768 kHz |
| Indicator | ANT A/B, Audio (peak), Battery alarm, Channel number |
| Channel Check | Usable frequencies scanning |
| Signal to Noise Ratio | 104 dB or more (A-weight, unbalanced output) |
| Harmonic Distortion | 1 % or less (typical) |
| Frequency Response | 100 Hz - 15 kHz, ±3 dB |
| Operating Temperature | -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) |
| Operating Humidity | 30 % to 85 %RH |
| Finish | Resin, black |
| Dimensions | 206 (W) × 40.6 (H) × 152.7 (D)mm (8.11" × 1.6" × 6.01") (excluding antenna) |
| Weight | 590 g (1.3 lb) |
WM-5325 with Omnidirectional lavalier microphone: YP-M5310
| Modulation | Frequency modulation |
|---|---|
| Frequency Range | 636 - 666 MHz (*2), UHF |
| Channel Selectable | 64 channels (the number of channels may differ from country to country) |
| RF Carrier Power | 50 mW or less |
| Tone Frequency | 32.768 kHz |
| Oscillator | PLL synthesized |
| Maximum Input Level | -14 dB to -29 dB (*1) (Audio level control: Min. to Max.) |
| Maximum Deviation | ±40 kHz |
| Audio Frequency Response | 100 Hz - 15 kHz |
| Battery | WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option) or AA alkaline dry cell battery |
| Battery Life | Approx. 13 h (when the WB-2000 rechargeable battery is used) Approx. 10 h (when the alkaline battery is used) |
| Indicator | Power/Battery lamps |
| Antenna | Built-in type |
| Connector | φ3.5 mm (φ0.14") mini plug |
| Operating Temperature | -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) (except battery) |
| Operating Humidity | 30 % to 85 %RH (no condensation) |
| Finish | Resin, coating |
| Dimensions | 62 (W) × 102.5 (H) × 23 (D) mm(2.44" × 4.04" × 0.91") |
| Weight | 90 g (0.2 lb) (with battery) |
| Accessory | Screw driver …1, Storage case …1, Neck strap …1 |
| Option |
Omnidirectional lavalier microphone: YP-M5310 |
