WPA4220KIT WIRELESS POWERLINE EXTENDER 300MBPS WIFI TLWPA4220 TP-LINK TL-WPA4220KIT

WPA4220KIT WIRELESS POWERLINE EXTENDER 300MBPS WIFI TLWPA4220 TP-LINK TL-WPA4220KIT

Overview

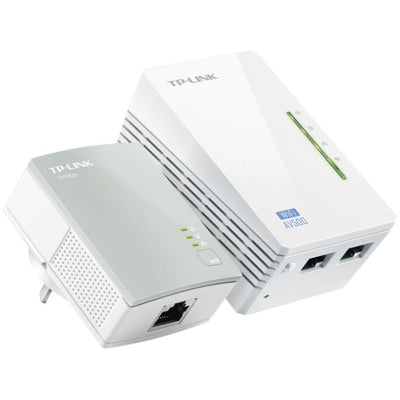

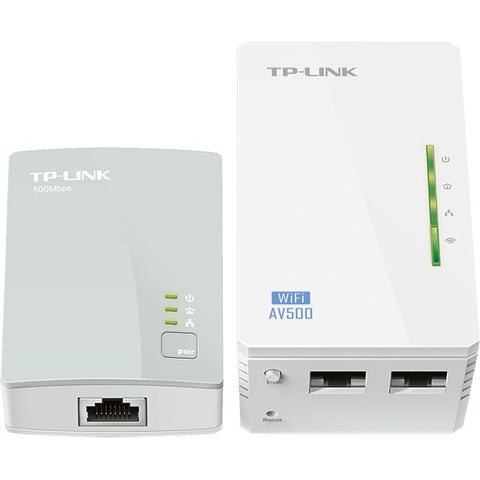

TP-LINK WPA4220KIT WIRELESS POWERLINE EXTENDER

What This Product Does

TP-LINK’s TL-WPA4220 extends your Internet connection to every room of the house through your home’s existing electrical circuitry. The TL-WPA4220 features a Wi-Fi Clone Button enabling Super Range Extension, which means it can automatically copy the SSID and Password of your router. In this way, TL-WPA4220 simplifies your Wi-Fi configuration and allows for seamless roaming within your home network.


One Touch Super Range Extension

With a Wi-Fi Clone Button enabling Super Range Extension, the TL-WPA4220 can automatically copy the wireless network name (SSID) and Password of your router at the push of a button. After pressing the button, you can place the powerline adapter anywhere you want wired or wireless access and enjoy seamless networking across your entire home or office.


Up to 600Mbps – Ideal for HD Video Streaming

With advanced HomePlug AV technology, TL-WPA4220 provides you with stable, high-speed data transfer rates of up to 600Mbps on a line length of up to 300 meters. It is a great choice for a whole home solution to connect all network compatible devices - from computers, game consolesto set-top boxes for IPTV to printers and NAS hard drives.


Extend Wi-Fi Coverage to Every Room

With wireless speeds of up to 300Mbps, you can effortlessly extend your WiFi network via the existing powerline and broadcast a wireless signal to share with all your WiFi enabled devices in another area of your home or office.



Plug and Play

You can set up a hassle-free Powerline network within minutes with TP-Link’s powerline adapters, just plug in and play. Also, the adapters’ “Pair” buttons can be utilised for securing or managing multiple powerline adapters in your home powerline network.

  1. Plug one Internet connected adapter into a nearby power outlet
  2. Connect additional adapters to PCs/laptops/Internet TVs or other networked devices via an Ethernet cable or Wi-Fi – and you're done!

*Recommended: Press the pair buttons for network security and data encryption.

Note: Powerline adapters should be deployed on the same circuit and in set of two or more.

Features

  • Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
  • HomePlug AV standard providing up to 500Mbps high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming
  • Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office
  • Two Ethernet ports allow your TVs, game consoles, orPCs connect to the Internet
  • Up to 300-meter range over the household power circuit
  • Easy to install, just plug in and play
  • 128-bit AES encryption easily at a push of "Pair" Button
  • Optimises IPTV applications like Fetch TV, Telstra T-Box, Apple TV, TPG IPTV, Google TV, FOXTEL on Xbox 360 andso on

SPECIFICATIONS

Specifications


HARDWARE FEATURES Plug Type AU
Standards and Protocols HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
Interface 2 × 10/100Mbps Ethernet Port
Button Pair, Reset, Wi-Fi/Wi-Fi Clone
Power Consumption
  • Maximum: 5.308W (220V/50Hz)
  • Typical: 5.086W (220V/50Hz)
  • Standby: 4.170W (220V/50Hz)
LED Indicator PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
Dimensions (W×D×H) 94mm × 54mm × 40mm (3.7″ × 2.1″ × 1.6″)
Range 300 Meters over electrical circuit
WIRELESS FEATURES Frequency 2.4-2.4835GHz
Signal Rate
  • 11n: Up to 300Mbps (dynamic)
  • 11g: Up to 54Mbps (dynamic)
  • 11b: Up to 11Mbps (dynamic)
Reception Sensitivity
  • 270M: −68dBm @ 10% PER
  • 130M: −68dBm @ 10% PER
  • 108M: −68dBm @ 10% PER
  • 54M: −68dBm @ 10% PER
  • 11M: −85dBm @ 8% PER
  • 6M: −88dBm @ 10% PER
  • 1M: −90dBm @ 8% PER
Wireless Security 64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Advanced Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics
Transmission Power
  • CE: <20dBm (2.4GHz)
  • FCC: <30dBm
SOFTWARE FEATURES Modulation Technology OFDM (PLC)
Encryption Powerline Security 128-bit AES
Wireless Security WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption
OTHERS Certification CE, FCC, RoHS
Package Contents
  • Powerline Ethernet Adapter TL-WPA4220
  • 6.5ft (2m) Ethernet cable (RJ45)
  • Resource CD
  • Quick Installation Guide
System Requirements Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
Environment Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature −40°C to 70°C (−40°F to 158°F)
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing
Warranty Limited 3-Year Warranty
