PA9020PKIT GIGABIT POWERLINE ADAPTER KIT 2000MBPS POWER PASS AV2000 TP-LINK TL-PA9020P KIT

PA9020PKIT GIGABIT POWERLINE ADAPTER KIT 2000MBPS POWER PASS AV2000 TP-LINK TL-PA9020P KIT

Sold Out $262.32

Overview

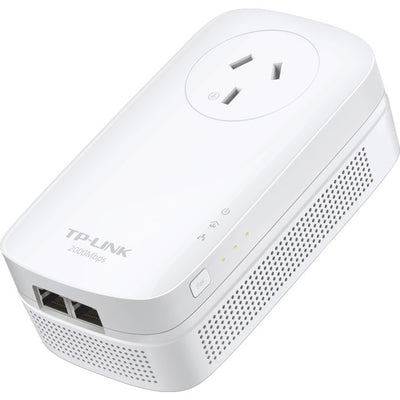

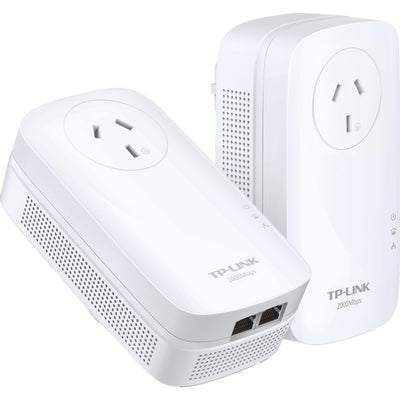

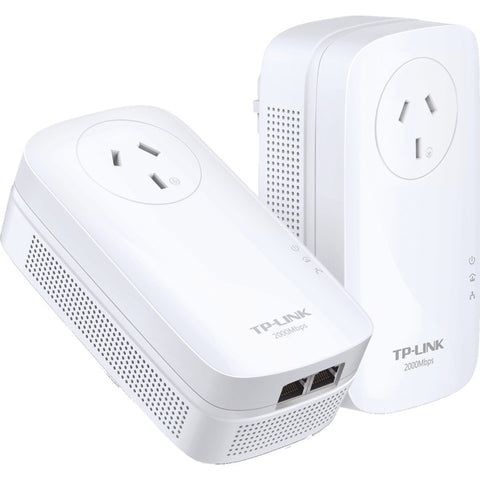

AV2000 2-Port Gigabit Passthrough Powerline Starter Kit

Take Your Powerline Network to the Next Level

With advanced HomePlug AV2 MIMO, the TL-PA9020p delivers high speed of up to 2000Mbps over Powerline to provide superior network performance that supports all of your online needs. With a lag-free connection, you will never miss out again.

An Exclusive Fast Lane for Your Favorite Devices

The TL-PA9020P creates fast, high performance wired connections that support all of your favorite devices, like 4K HDTV. Now you can plug in to enjoy an exclusive fast laneout of a crowded network without slowing down.

Fluid Streaming and Gaming with 2X2 MIMO

2X2 MIMO with Beamforming Technology significantly improves speeds, especially during peak hours.

More Stable Connections:2X2 MIMO is like adding extra lanes to a highway. It establishes multiple simultaneous connection for you to enjoy higher speeds and greater stability
Enhanced Long Distance Performance: 2X2 MIMO with Beamforming Technology also offers the benefitof improved coverage throughout the home, particularly for previously hard to reach outlets.

Wiring up with Gigabit Speeds

Connect to Gigabit speeds for your smart TVs, game consoles, computers and network attached storage devices. Just use an Ethernet cable to attach your devices to the Powerline adapter to get started!

Simplified Network for a Better Life

Plug, Pair and Play!

1. First, connect your TL-PA9020P to the router
2. Then, plug in another one wherever you need extra coverage
3. Finally, press the “Pair” button on each adapter

Congratulations! You are ready to enjoying seamless wired connections.

No Power Outlet is Going to Waste

The integrated power socket means that you can still get power from the outlet for your other devices. Simply plug your device into the integrated socket the same way you would with a normal wall outlet. The built-in noise filter also helps to eliminate electrical signal noise that might otherwise affect powerline transmission performance.

Specifications

HARDWARE FEATURES	Plug Type	EU, UK, US,FR
	Standards and Protocols	HomePlug AV2, HomePlug AV, IEEE 1901 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
	Interface	2 × Gigabit Ethernet Port, Power Socket
	Button	Pair
	Power Consumption	Maximum: 5.8W (230V/50Hz) Standby: 0.5W (230V/50Hz)
	LED Indicator	Power, Powerline, Ethernet
	Dimensions (W×D×H)	5.2″ × 2.8″ × 1.7″ (131mm × 72mm × 42mm)
	Range	300 meters in house
	Compatibility	Compatible with all AV2000, AV1200, AV1000, AV600, AV500 & AV200 powerline adapters
	Transmission Speeds	Powerline: up to2000 Mbps Ethernet: 10/100/1000 Mbps
SOFTWARE FEATURES	Quality of Service	ToS Supports up to 4-level type QoS Support up to 8-level VLAN priority
	Security	128-bit AES Encryption
	Modulation Technology	OFDM
OTHERS	Certification	CE, RoHS
	Package Contents	2 × AV2000 2-port Gigabit Passthrough Powerline Adapter, TL-PA9020P 2 × 2-meter RJ-45 Ethernet Cable Quick Installation Guide
	System Requirements	Windows 8.1/8/7/Vista/XP, Mac OS, Linux
Environment	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	−40°C to 70°C (−40°F to 158°F)
	Operating Humidity	10%~90% non-condensing
	Storage Humidity	5%~90% non-condensing

FAQs

[1091] How to update the firmware using the tpPLC Utility on Windows?

[1090] How to set a new Powerline Network Name to secure your whole Powerline network using the tpPLC Utility on Windows?

[1086] How to prepare for using the tpPLC Utility on Windows?

[1059] How to add an extra Powerline adapter to the existing Powerline network by adding the powerline key on tpPLC Utility (new designed blue UI)?

[434] How many Powerline adapters can be added to the same network?

[433] Can several Powerline networks exist simultaneously in same power circuit?
