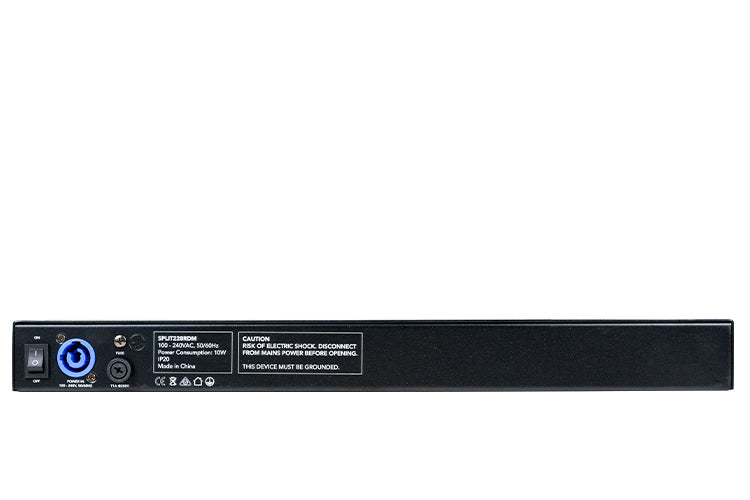

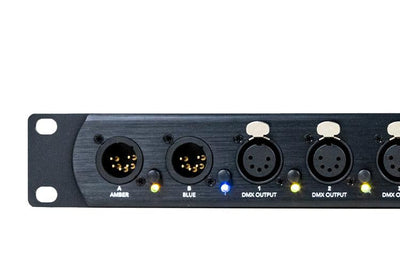

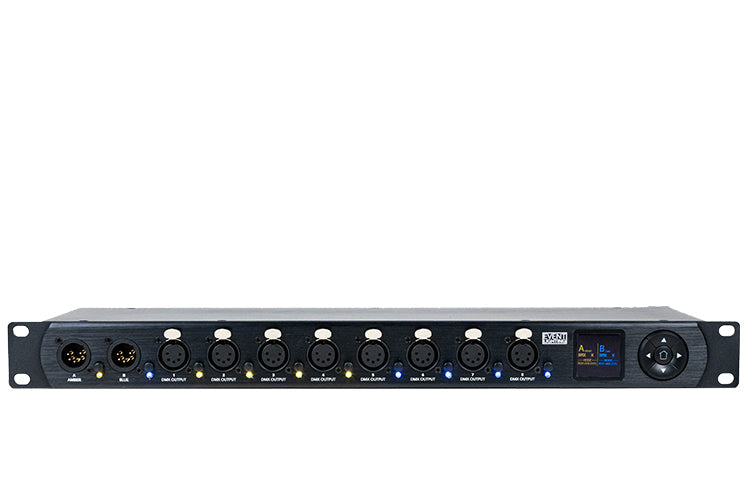

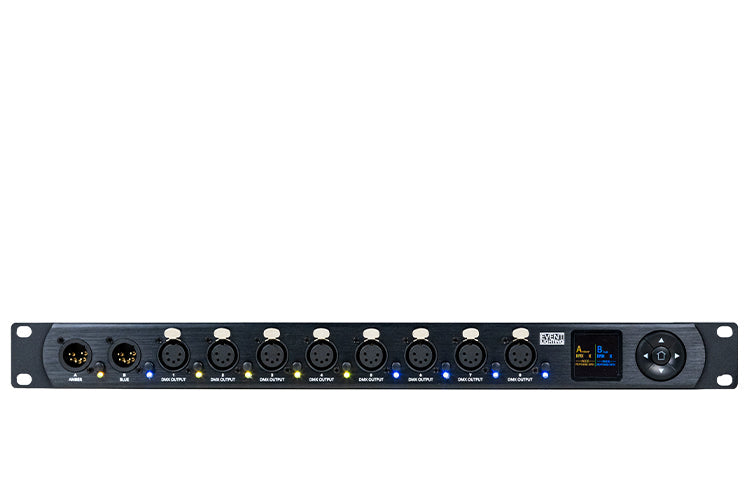

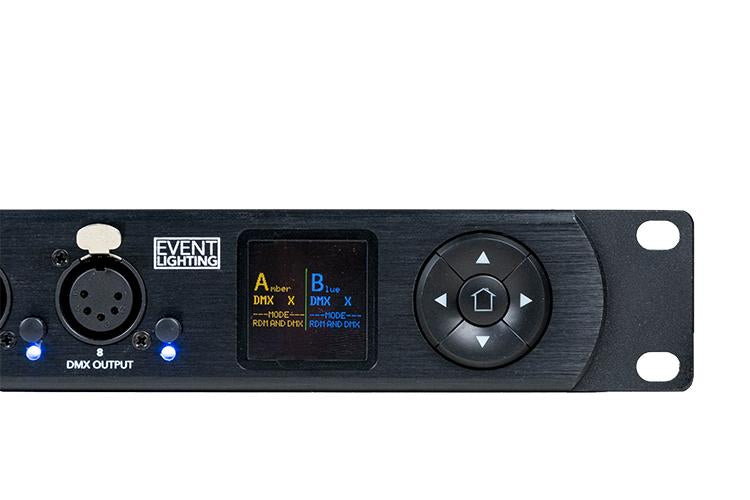

Event Lighting SPLIT228RDM - 2 Inputs 8 Outputs DMX / RDM Splitter

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

SPLIT228RDM is a rack mountable DMX and RDM splitter designed to optically insulate and distribute 2 DMX inputs into 8 outputs via 5-pin XLR connectors.

Technical Specifications

  • Protocol: DMX512 and RDM
  • Input Voltage: 100-240V AC 50/60Hz
  • Power Consumption: 5W
  • Power Connections: Powercon input
  • Connections: 2x 5-pin DMX input, 8x 5-pin DMX output
  • 8x Optically Isolated Outputs
  • Fuse: F1AL/250V
  • Dimensions: 483x145x46 mm
  • Weight: 2kg
