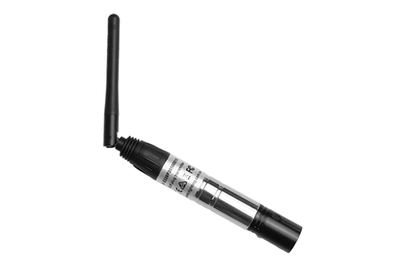

Event Lighting CRMXXLRTX - Wireless DMX 3-pin XLR plug transmitter 2.4Ghz CRMX protocol

Wireless DMX is the ideal solution for fast setups, temporary installations, touring and production duties or places where you are physically unable to run DMX cables. CRMXLRRXA operates as a transmitter to communicate CRMX signals.

Specifications：

• Maximum Transmission power: 22dBm
• Receiver Sensitivity: -110dBm

• Band: 2.402Ghz – 2.480Ghz, ISM, 79 channels
• Spread Spectrum: FHSS, 1100 hops/s
• Modulation GFSK
• ARM processor: 32-bit
• 3-pin Male XLR
• Channel Groups: 6 in ELDMX mode
• Protocols: ELDMX, WDMX, GZ
• Automatic Reboot Trigger: Built-in WDT (watchdog timer)

Dimensions

• Size:125x18x18mm
• Weight: 110 g

Environmental Limits

• Operating Temperature: -40 ~ 85 °C
• Storage Temperature: -65 ~ 150 °C
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Power Requirements

• Power supply: 5VDC

Warranty: 3 years

Please Note: Shipping at checkout for this item may be an estimate only and may apply only to some metro areas, or a specific distance from supply location. Please use the contact us form to get an accurate shipping quote based on your order quantity and location.
