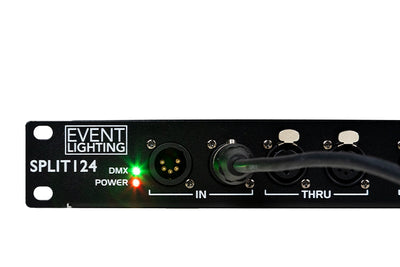

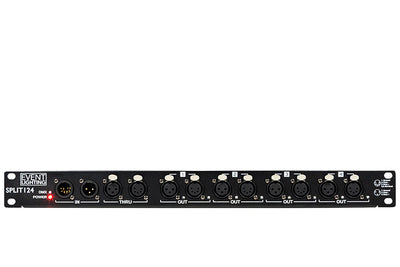

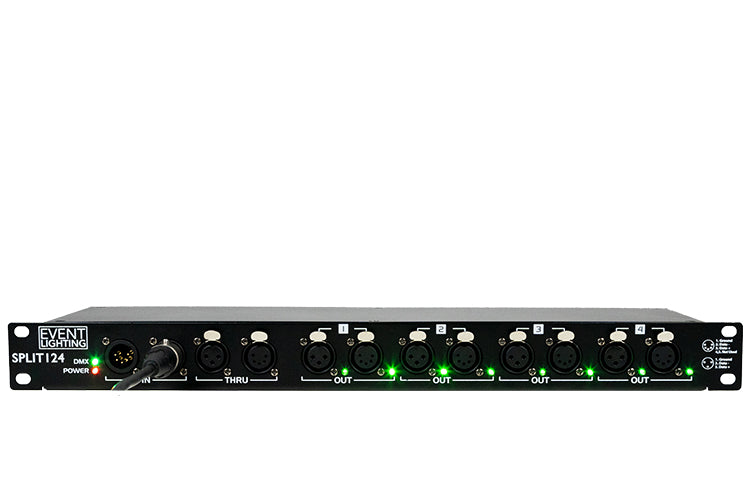

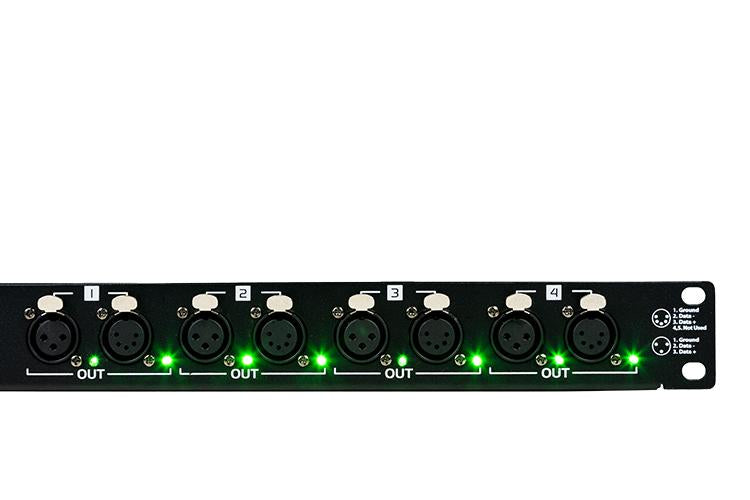

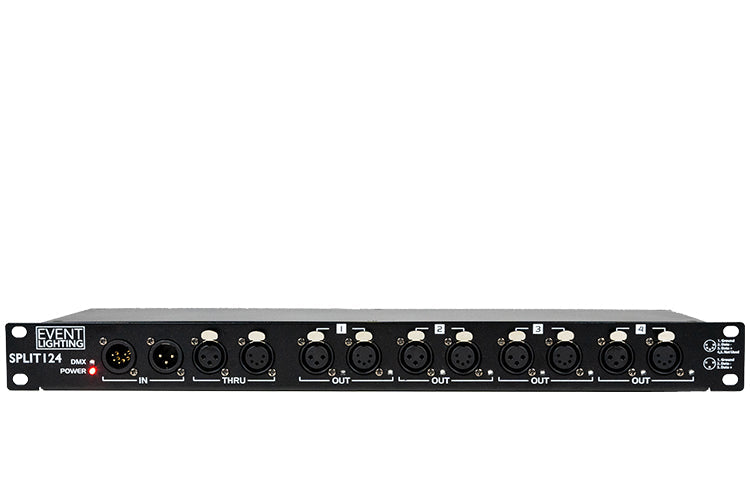

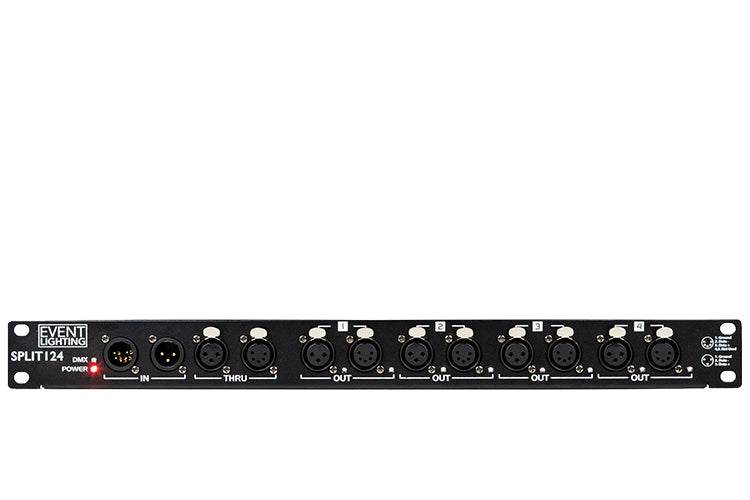

Event Lighting SPLIT124 - 4-way DMX Splitter

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

The SPLIT124 is a rack or truss mountable DMX splitter designed to re transmit and distribute a DMX signal into 4 outputs and one throughput. Both 3 and 5 pin XLR connectors are included for maximum flexibility when connecting DMX controlled devices. The optically isolated circuitry protects your controller from electrical surges while maintaining the integrity of the signal.

  • DMX512 Protocol
  • 4x Optically Isolated Outputs
  • Power: 100-240V AC, 50/60Hz
  • Power Consumption: 5W

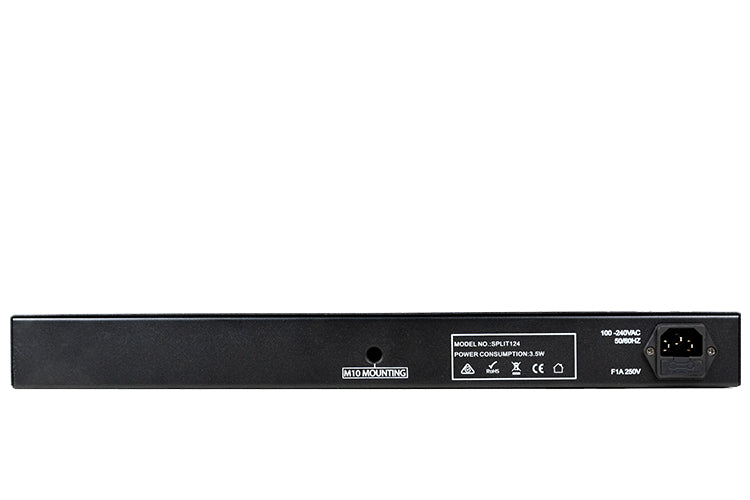

  • Power Connections: IEC input
  • Connections: 1 input, 4 outputs, 1 through, 3 and 5 pin XLR
  • Dimensions: 483 x 131 x 45mm (1U)
  • Weight: 2.6kg
