Event Lighting RDMTESTER - RDM Compatible DMX Tester

Test Functions

• Receive DMX
• Send DMX
• Cable Test
• Channel Tracer
• DMX Timings Test
• Flicker Finder
• Sequence
• Light Sensor/PWM checker
• MIDI Test

Hardware

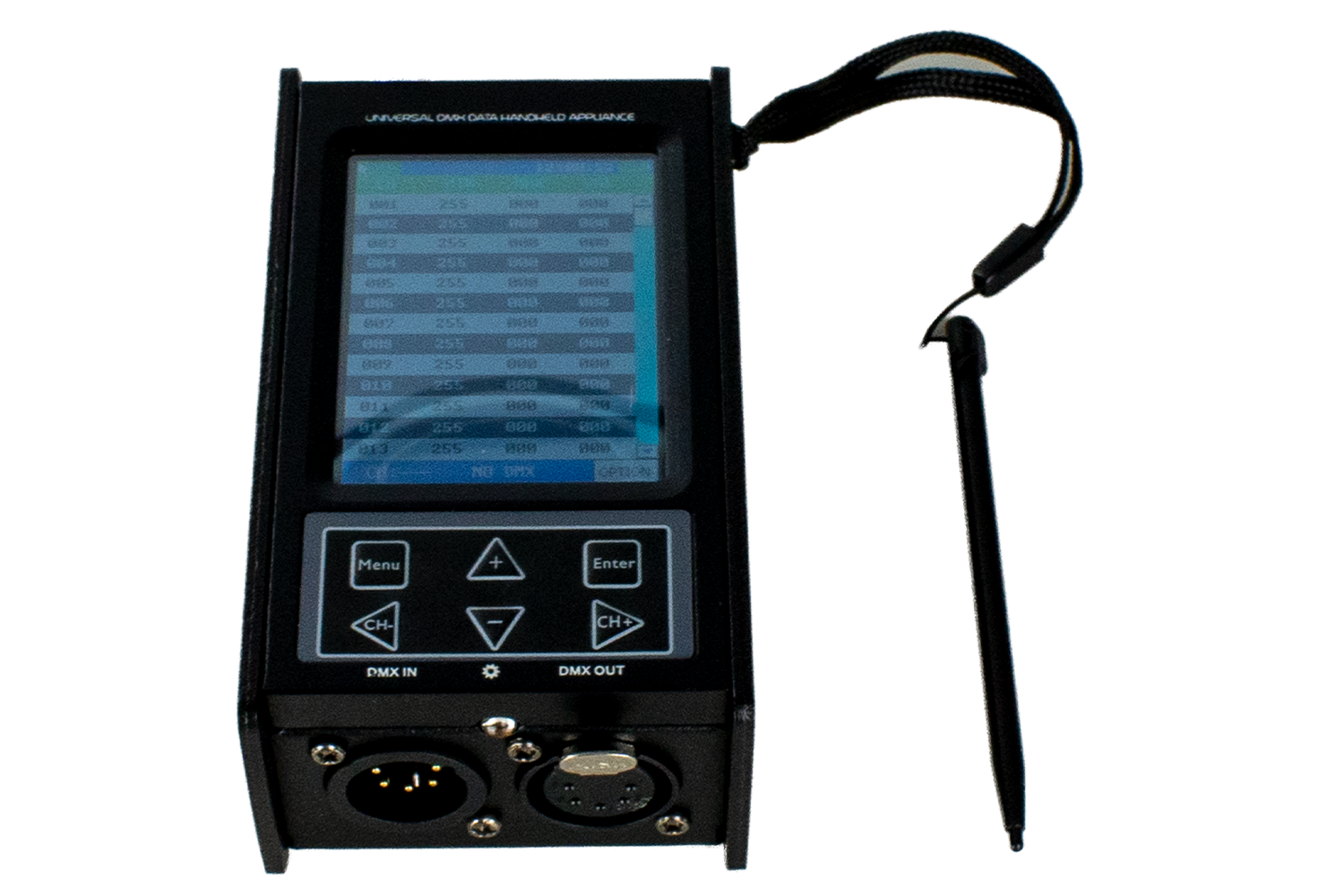

• Display type: full colour LCD
• Display resolution: 240x320

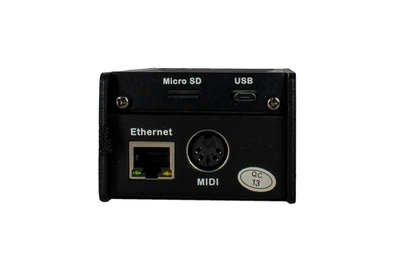

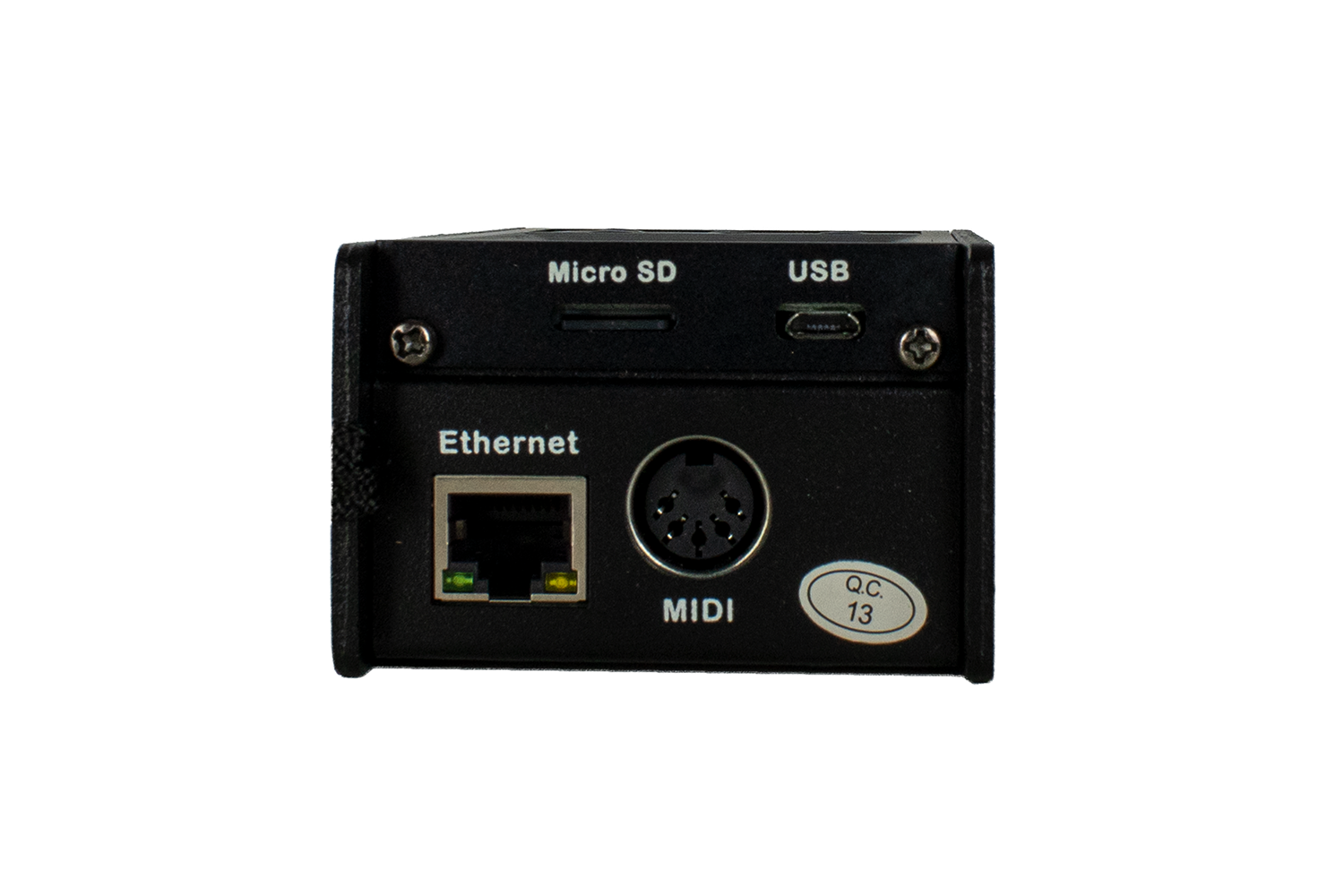

• Memory: SD card
• DMX in port: 5-pin male
• DMX out port: 5-pin female
• DMX port electrical standard: ANSI E1.11/ANSI E1.20
• USB port: Micro USB type B
• Battery: 9V block battery
• USB power consumption: 300mA max
• Cable tester: 5-pin, open circuit, short circuit, wrong wiring
• Operating temperature: 0°C-45°C
• Dimensions: 67x115x45 mm
• Weight: 343g (without battery)

Firmware

• Received DMX channels: 512
• Transmitted DMX channels: 512
• Refresh rate: 10,15,20,25,30,35,40 frames per second
• Transmitter break length: 160-180 microseconds (not configurable)
• Transmitter MAB length: 28-32 microseconds (not configurable)
• Timing measurement: Frames per second/break/MAB
• Display format: Percentage, decimal, hexadecimal
• DMX scene storage: SD card, 512 channels each
• Number of sequences: varies based on SD card capacity
• Steps in each sequence: 99

Download the User Manual

Warranty: 1 year
