Event Lighting PAR5X8A - 5x 8 W RGBA Pro PAR

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

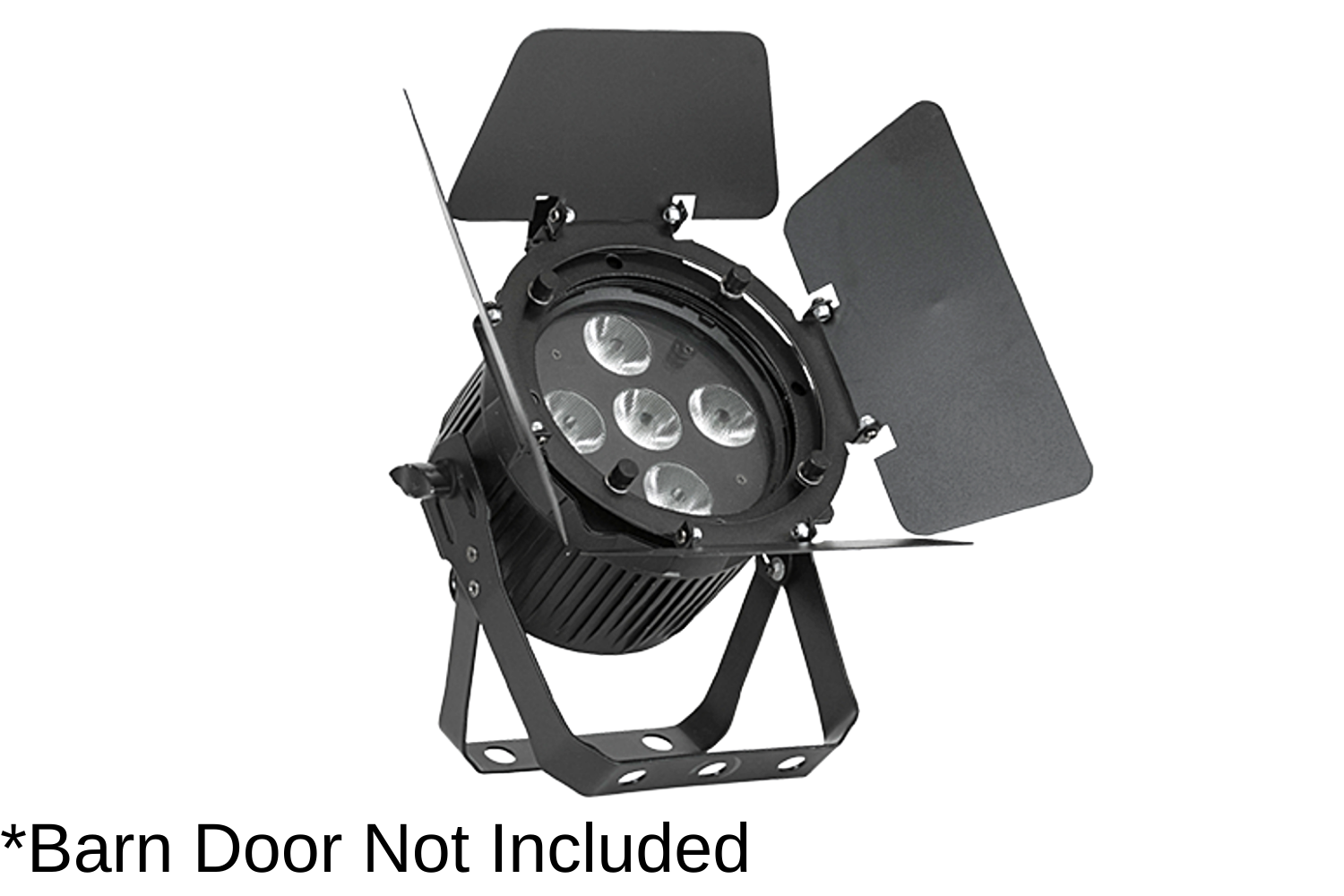

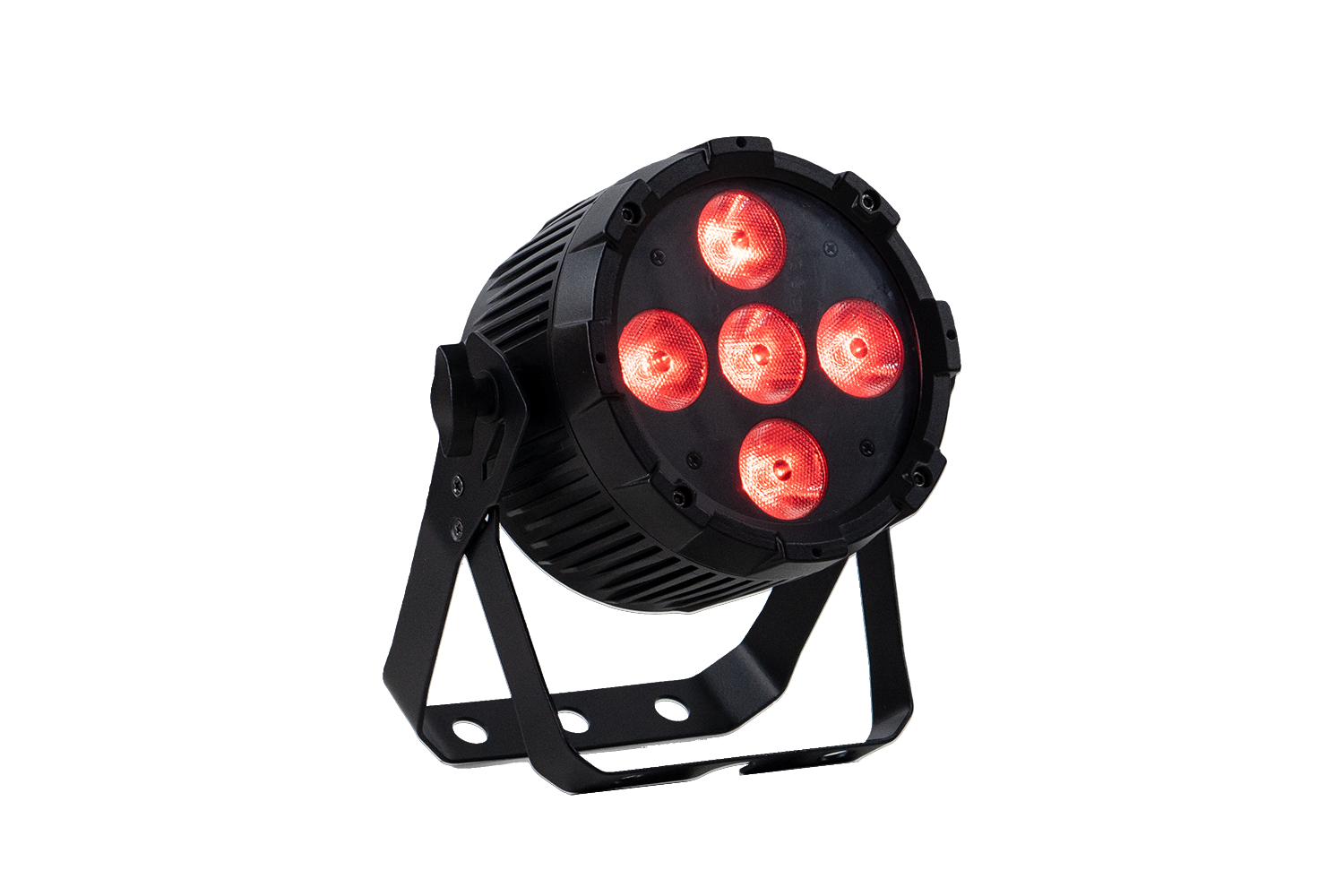

The PAR5X8A is a 5-LED 4-in-1 fixture with RGBA LEDs.

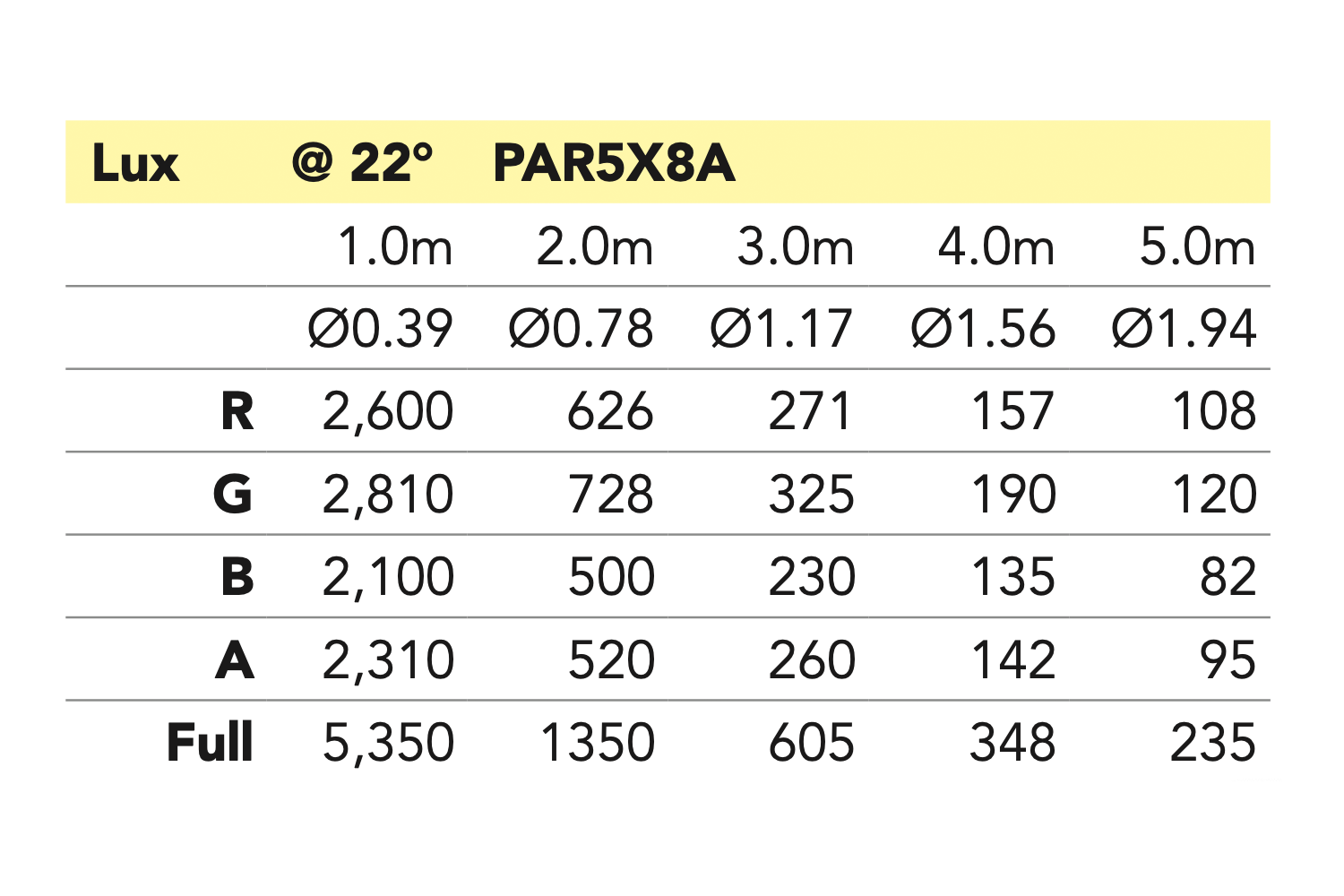

Photometrics

• Light Source: 5x 8 W RGBA LEDs

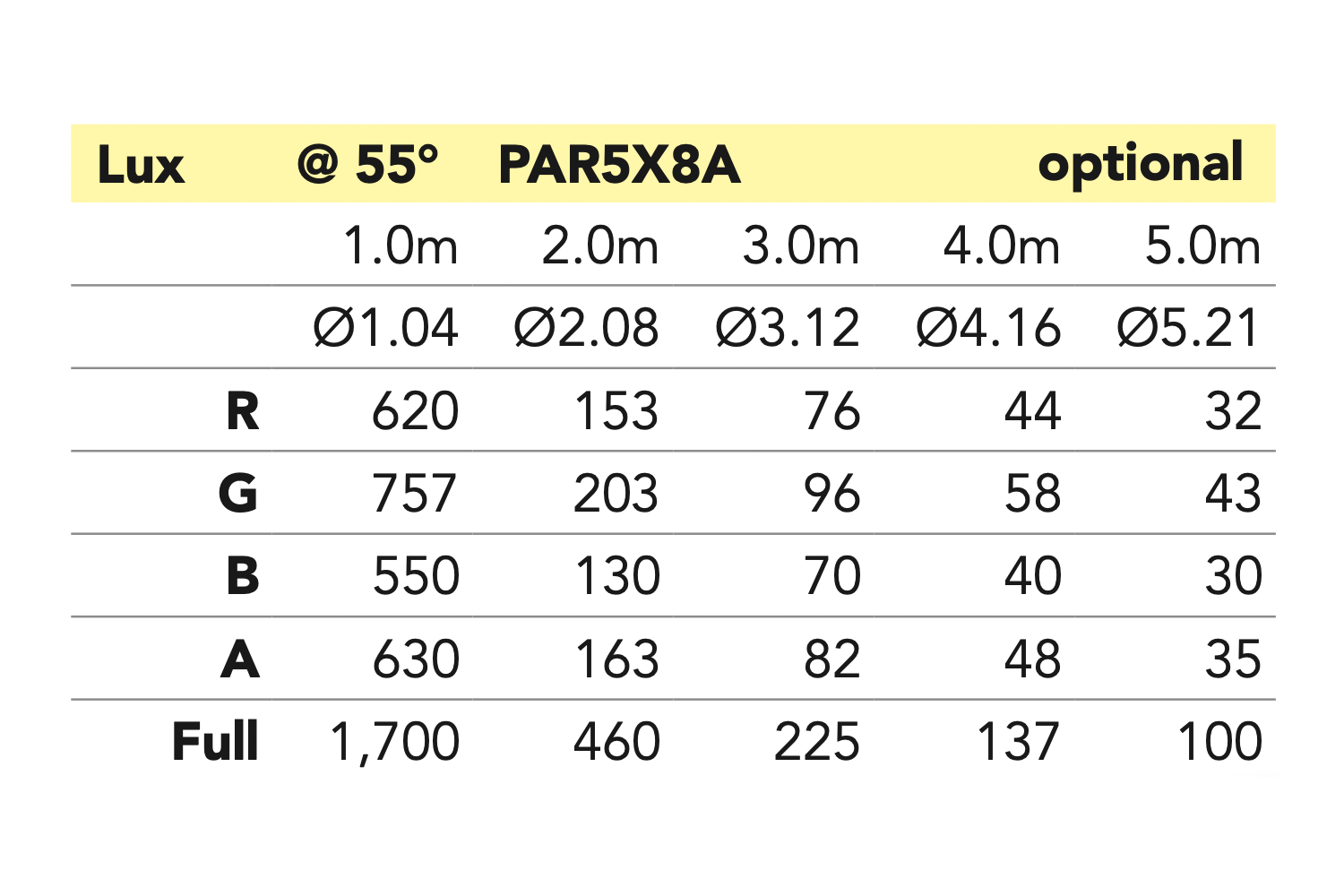

• Beam Angle: 22° (Optional: 55°)
• Output: 1,350 lux @ 2 m RGBA full on
• PWM: 2,940 Hz
• LED Life: 50,000 hours

Effects

• Dimming: 8-bit Dimming Control / 3x 16-bit Dimming Curves
• Strobe: 1~30 Hz

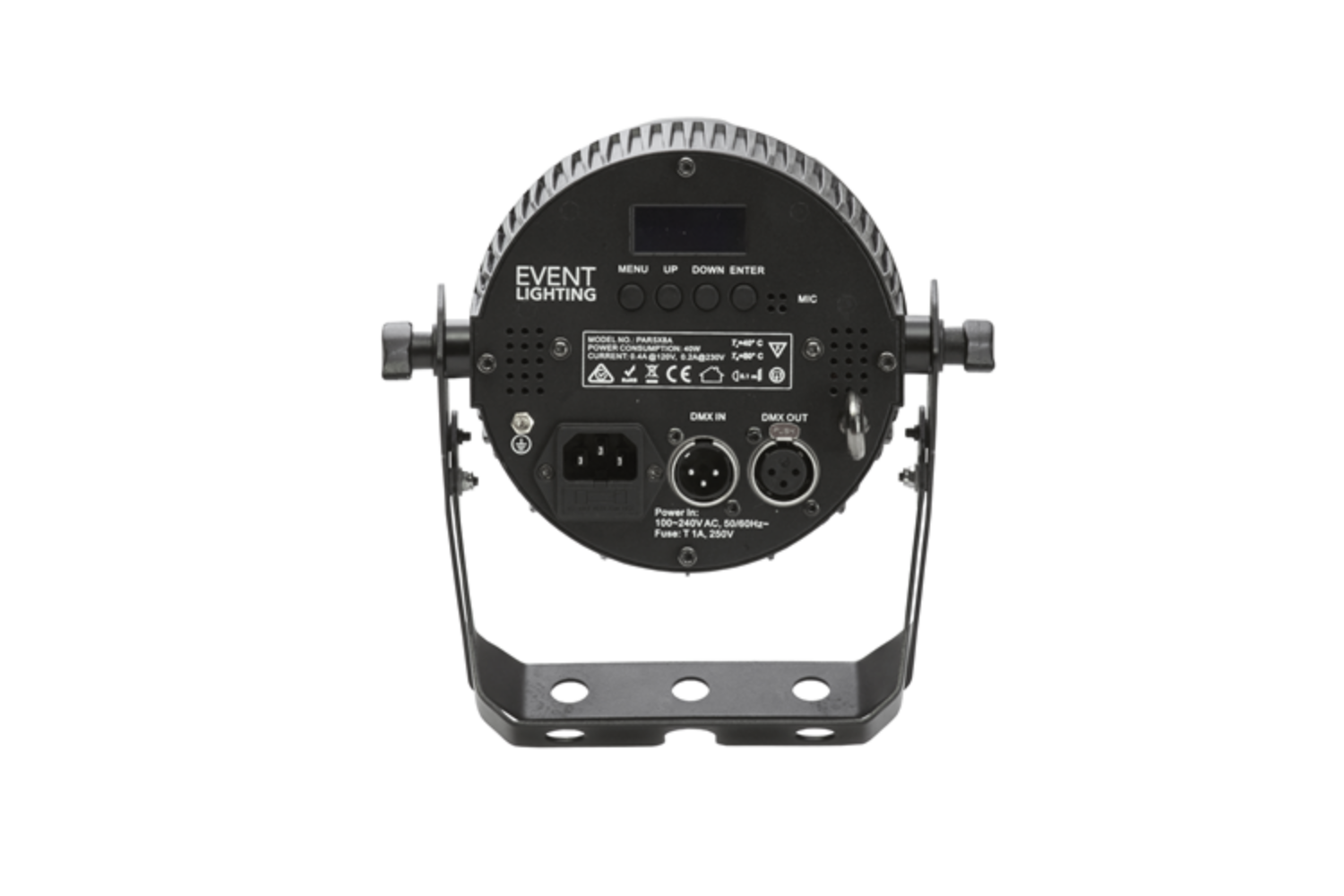

Power

• Input Voltages: 100~240 V AC,50/60 Hz, 40 W
• Power Connection: IEC in

Control

• Operation Modes: DMX, manual, auto, sound active, master/slave
• Display: 4-button LCD control panel
• Control Protocol: DMX512
• DMX Channel Mode: 2 / 3 / 4 / 6 / 10
• Control Interface: 3-pin XLR (Optional: 5-Pin XLR)
• Software Upgrade via DMX: Yes

Housing

• Housing Materials: Die-cast aluminium housing, matte black finish
• Cooling: Fanless Cooling

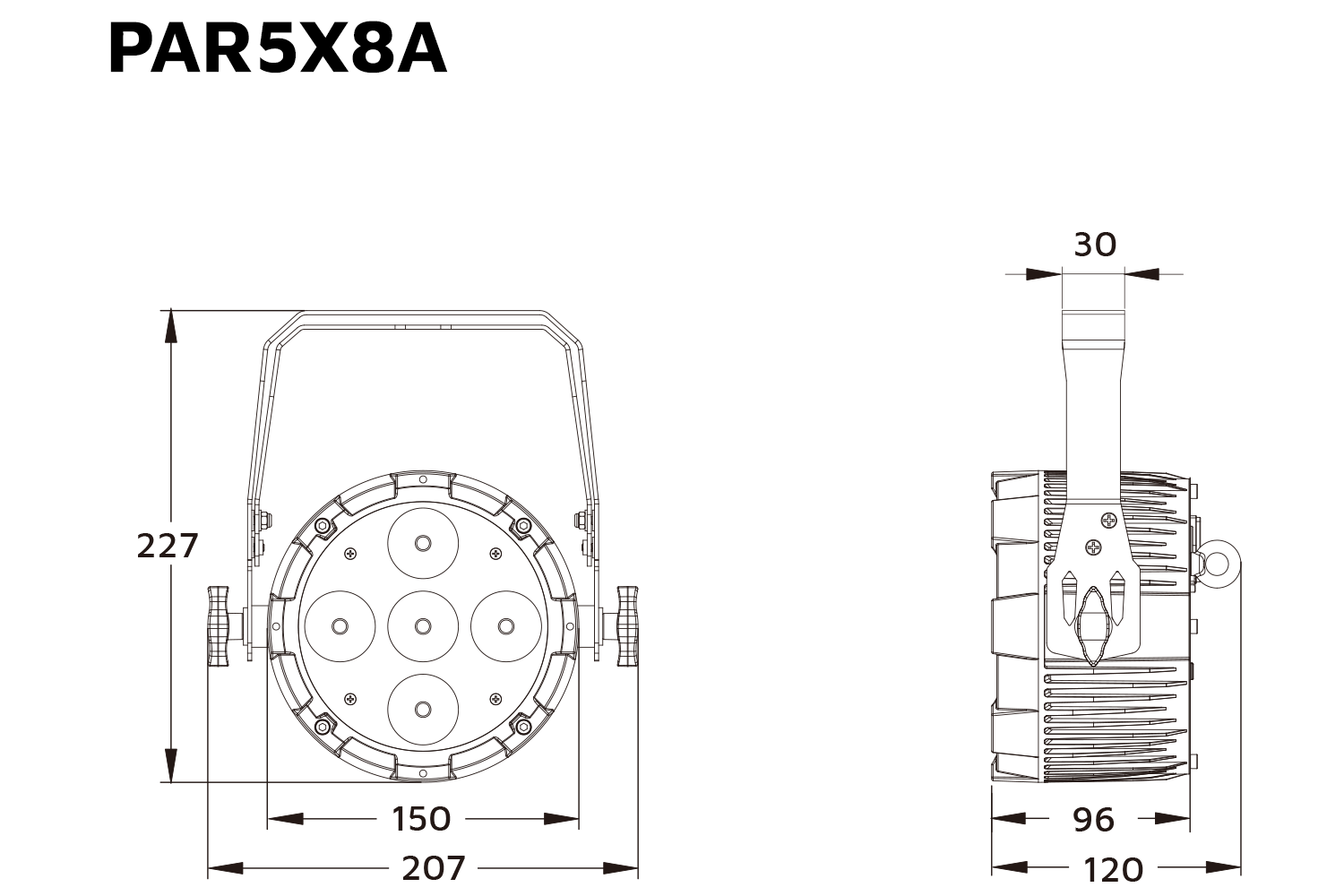

• Dimension: 207 x 227 x 120 mm
• Net Weight: 1.9 kg
