Event Lighting PAR12H - Indoor Pro Par with 12 x 12W RGBWAU LEDs

Event Lighting PAR12H - Indoor Pro Par with 12 x 12W RGBWAU LEDs

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

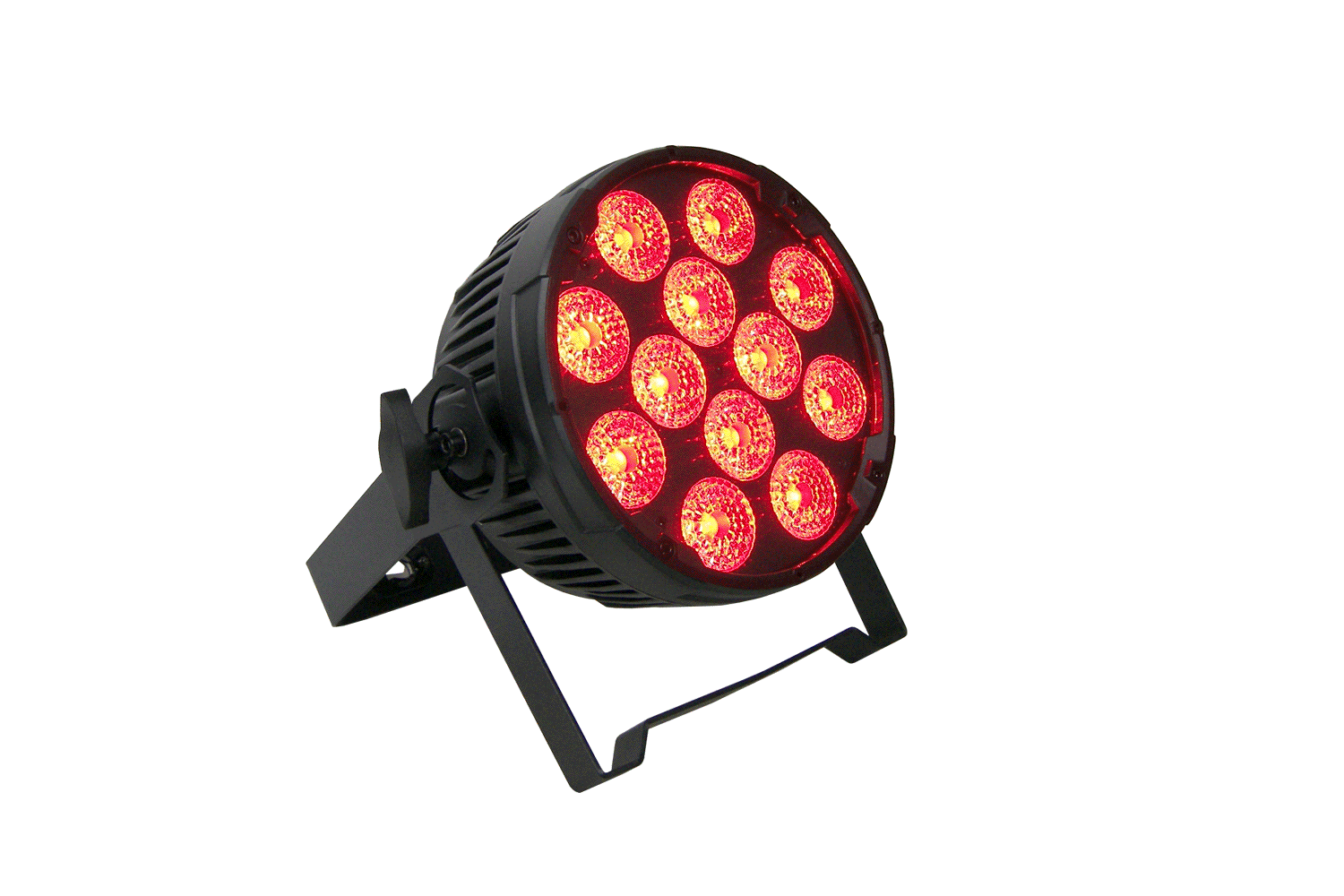

The Event Lighting PAR12H is a durable and versatile LED Pro Parcan. With 12 x 12W RGBWA+UV LEDs, it delivers stunning colour combinations to suit any space. Enjoy customizable beam angles with options for 30˚, 40˚, 25˚ and 15˚, providing the perfect spread for any application. Experience 3,150 lux output at 2.0 meters, ensuring vibrant illumination in any setting. Boasting a robust lifespan of 50,000 hours, this fixture is built to last.

With 5 x 16-bit Dimming Curves and adjustable strobe settings ranging from 1 to 30Hz, you have full control over your lighting effects. Its flexible operational modes include DMX, auto run, sound active, and more, all easily navigated through the intuitive 4-button LCD control panel. Plus, with a sturdy die-cast aluminum housing and fanless cooling design, durability and reliability are guaranteed.

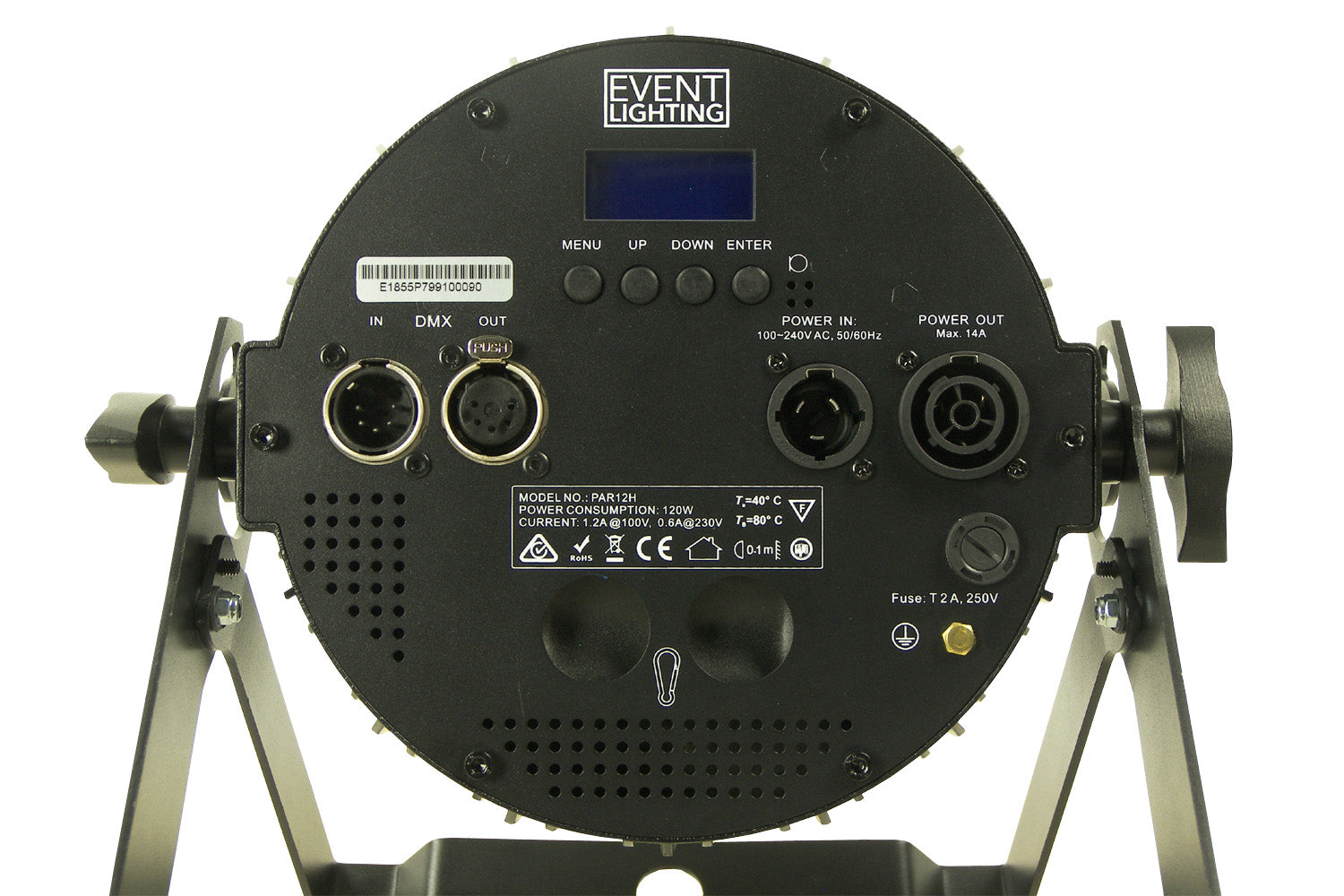

The PAR12H comes with True1 in/out, 5 pin DMX in/out and includes an omega bracket for quick and easy installation.



Specifications:

Photometrics

  • Light Source: 12 x 12W RGBWA+UV LEDs
  • Beam Angle: 30˚ (40˚, 25˚, 15˚ Optional)
  • Output: 3,150 lux @ 2.0 m full on
  • PWM: 2,940Hz
  • LED Life: 50,000 hours

Effects

  • Dimming: 5 x 16-bit Dimming Curves
  • Strobe: 1~30Hz

Power

  • Input Voltage: 100V~240 V AC, 50/60Hz, 120W
  • Power Connection: True1 in/out

Control

  • Operational Modes: DMX, WDMX (optional), auto run, sound active, master/slave, manual colour control, static colour control
  • Display: 4-button LCD control panel
  • DMX Protocol: DMX512
  • DMX Channel Mode: 1 / 2 / 3 / 4W / 4A / 6 / 8 / 12 / 14
  • DMX Interface: 5-pin XLR in/out

Housing

  • Housing Materials: Die-cast aluminium, matte black finish
  • Cooling: Fanless Cooling

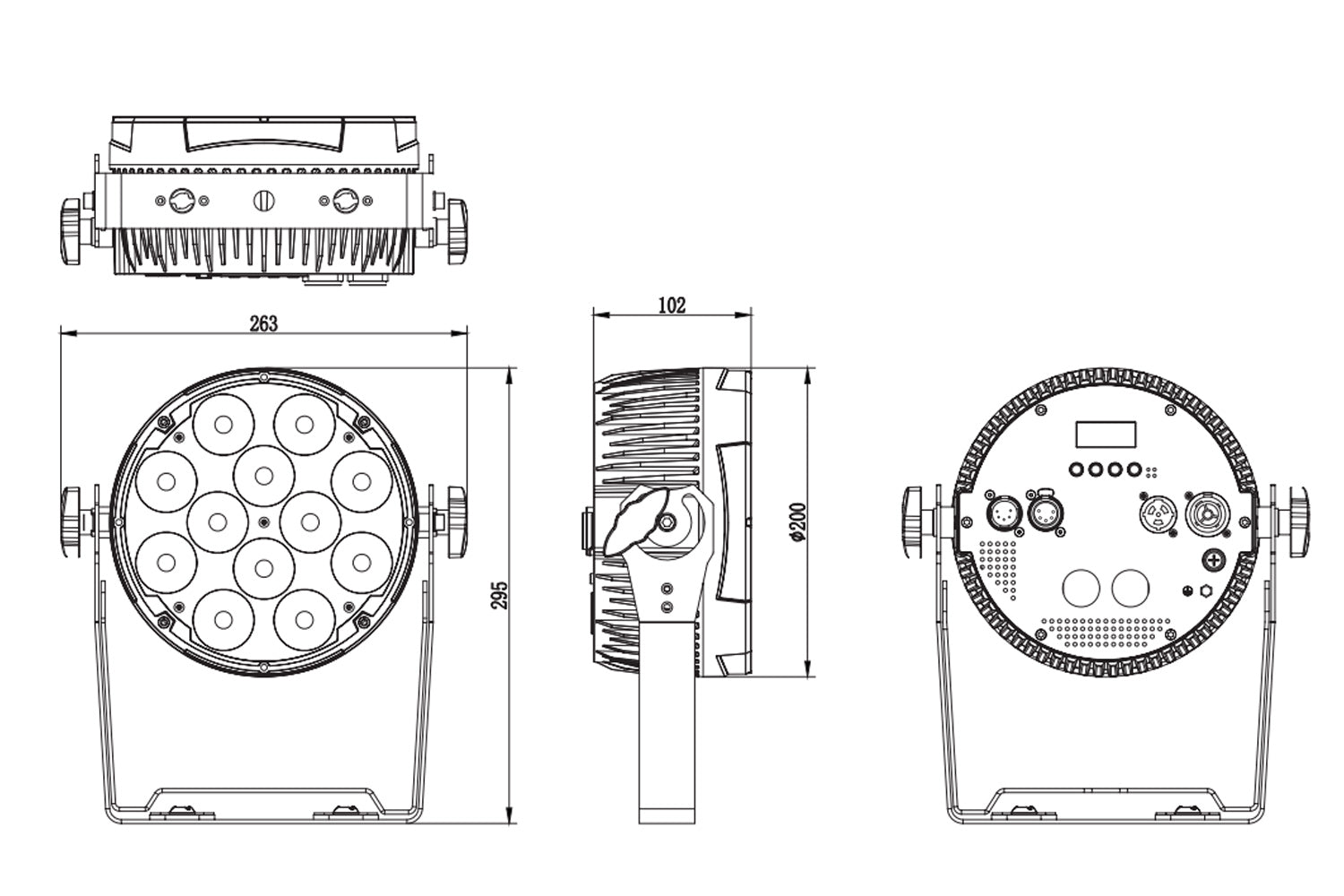

  • Dimension: 263 x 293 x 98mm
  • Net Weight: 3.2kg

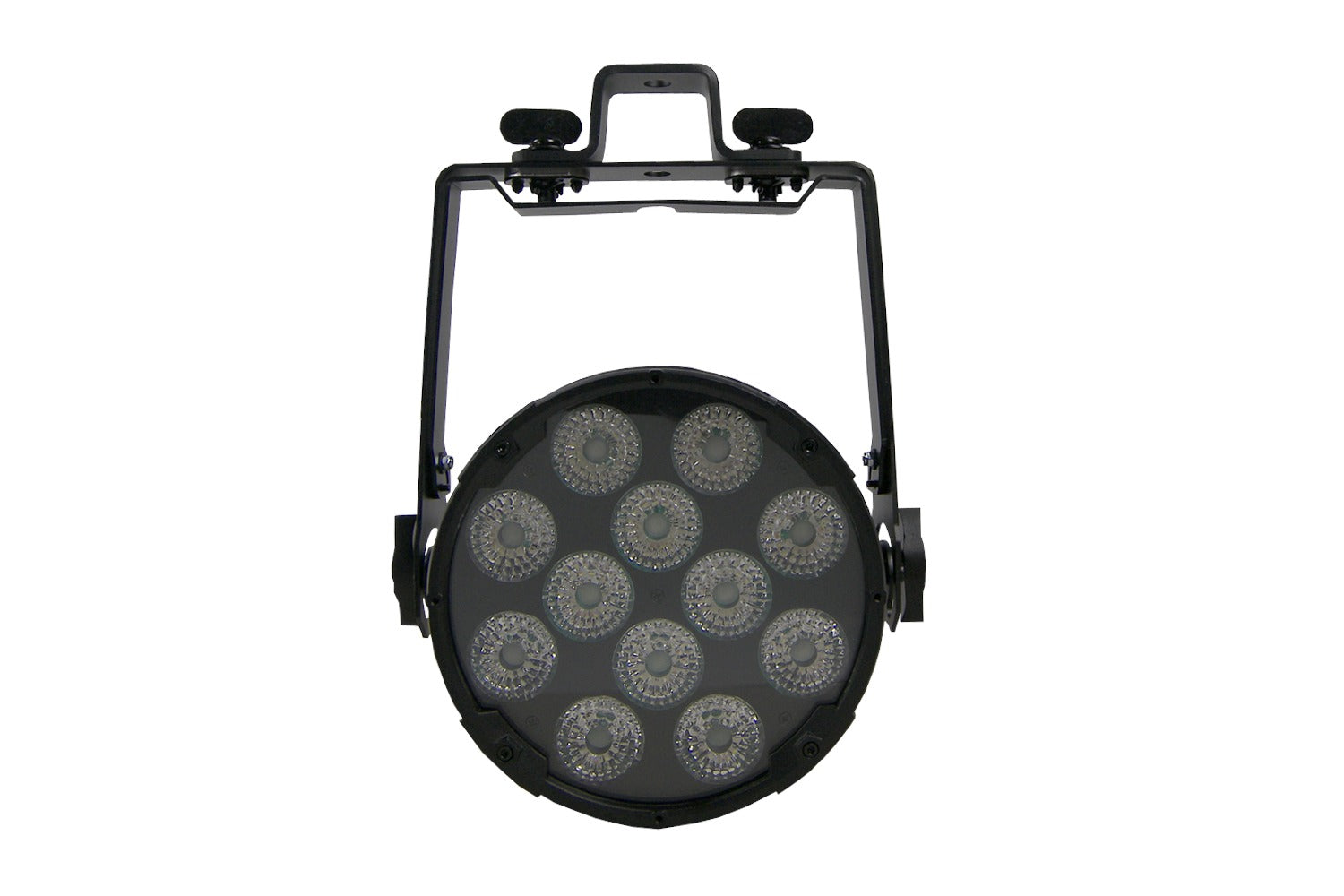

  • Rigging: 1 x Omega bracket with 1/4 turn quick locks

MISC






Download Product Datasheet

Download user manual

Warranty: 3 years
