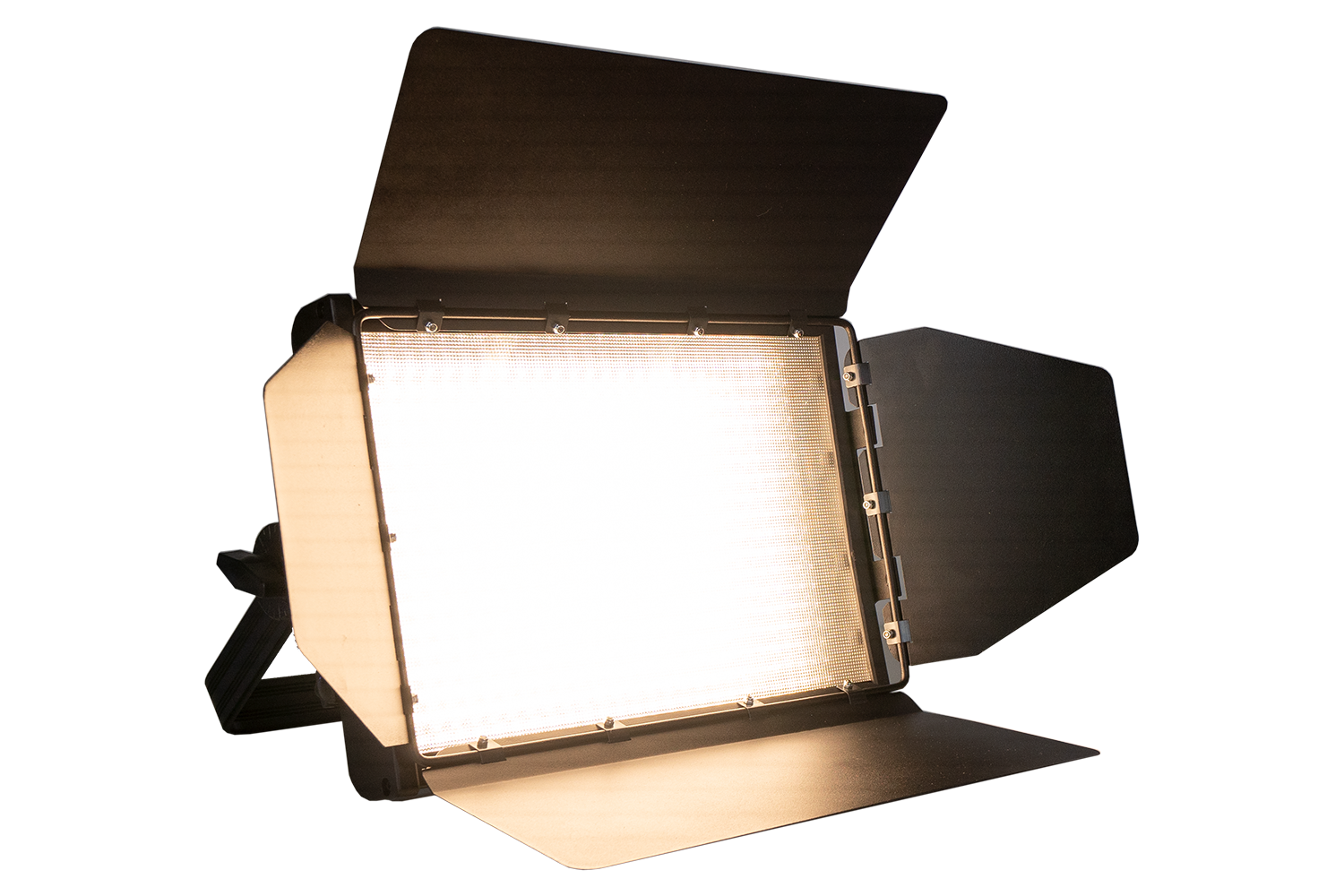

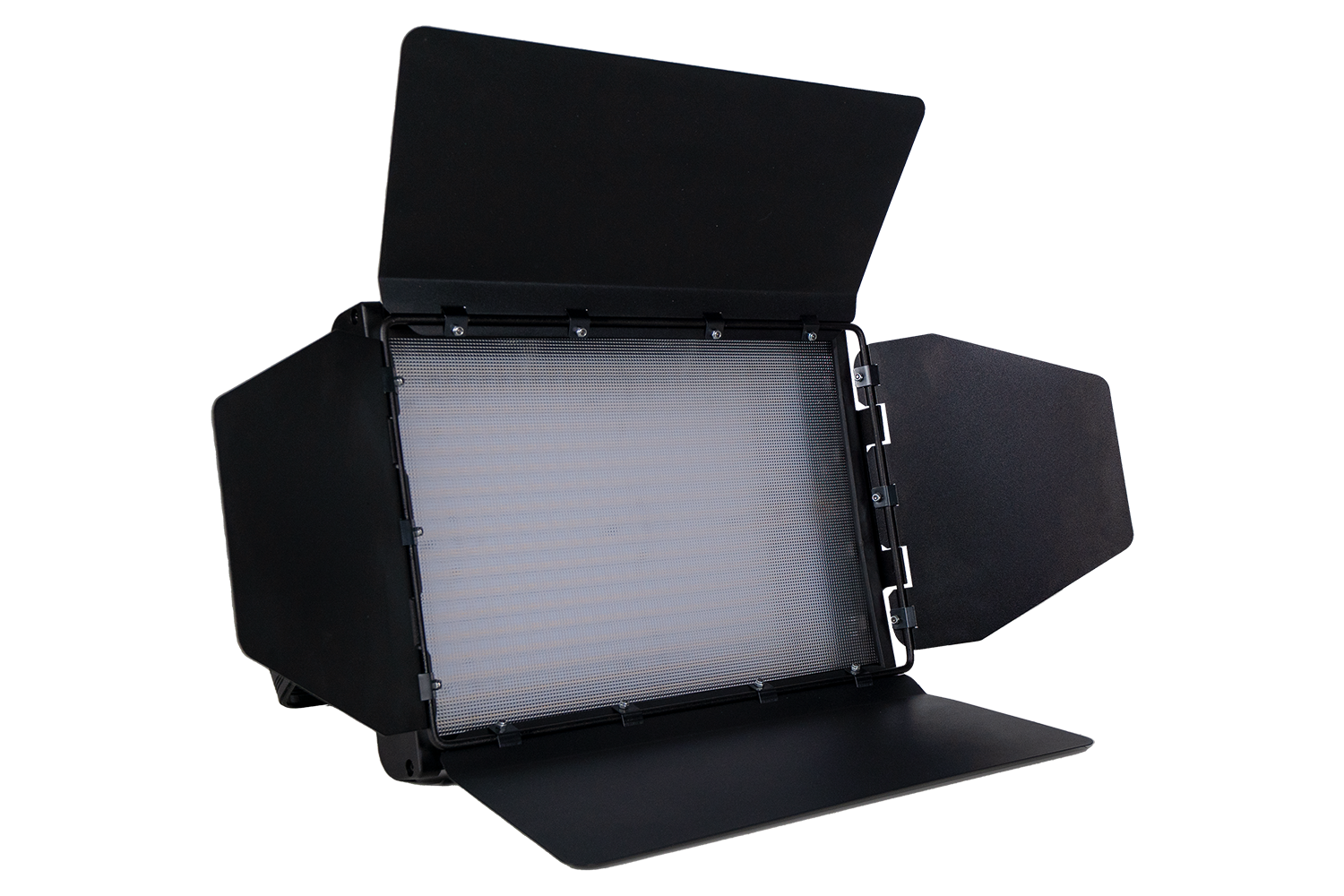

Event Lighting STUDIO100IW - 100W Tuneable White LED Panel with Barn Doors

Photometrics

• Light Source: 100W White SMD LEDs

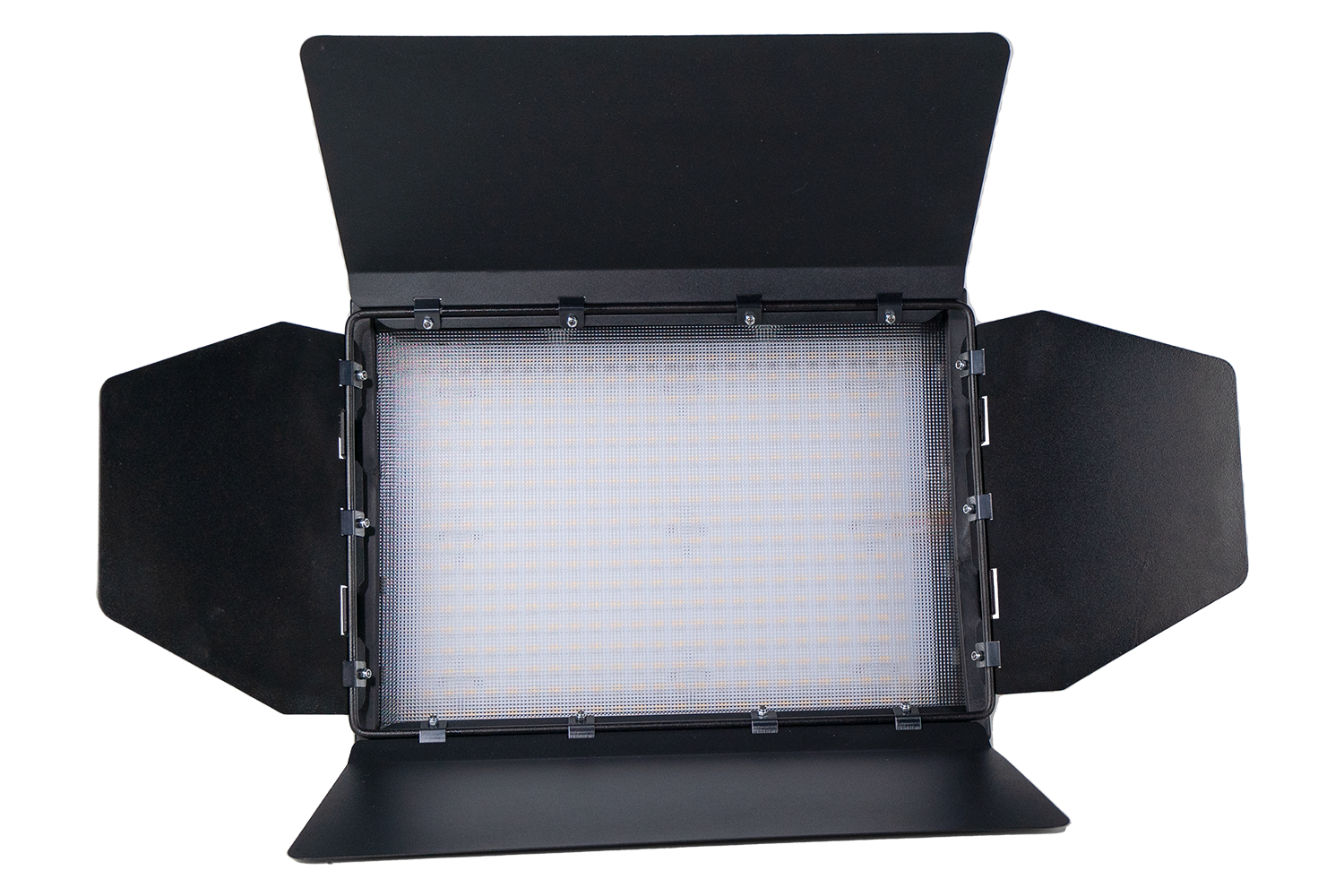

• Beam Angle: 120° with barn doors
• Refresh Rate: 600-5,000 Hz
• CRI: 97
• Colour Temperature: 3,200-5,600 K CCT

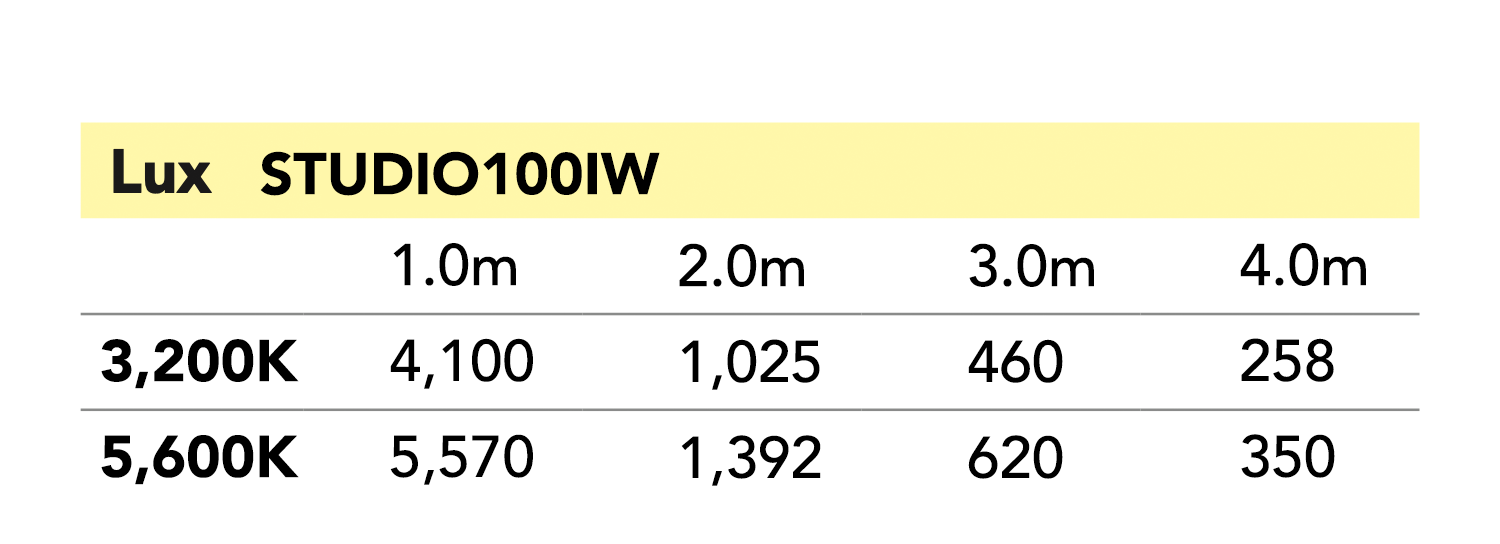

• Output:
• 3,200 K: 1,025 lux @ 2m
• 5,600 K: 1,392 lux @ 2m

Effects

• Dimming: 0-100%, 16-bit
• Dimming Curves: 4
• Preset Colours
• Strobe: 0-20 Hz

Power

• Input Voltage: 100-240V AC, 50/60 Hz, 100W
• Connection: TrueOne in/out

Control

• Operational Modes: DMX, manual

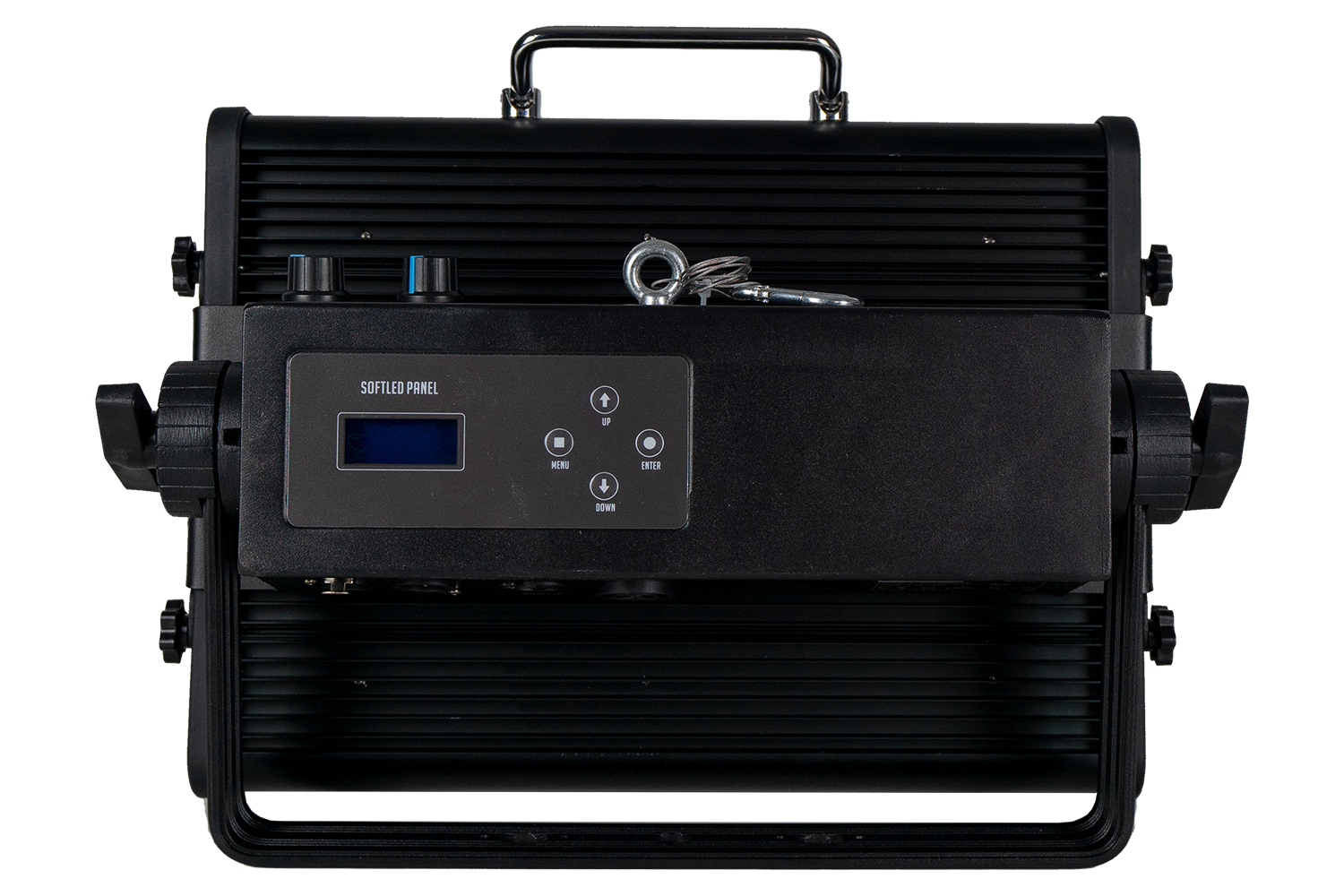

• Display: 4-button LCD Control Panel
• Control Protocol: DMX512, RDM
• DMX Channels: 2/3/5

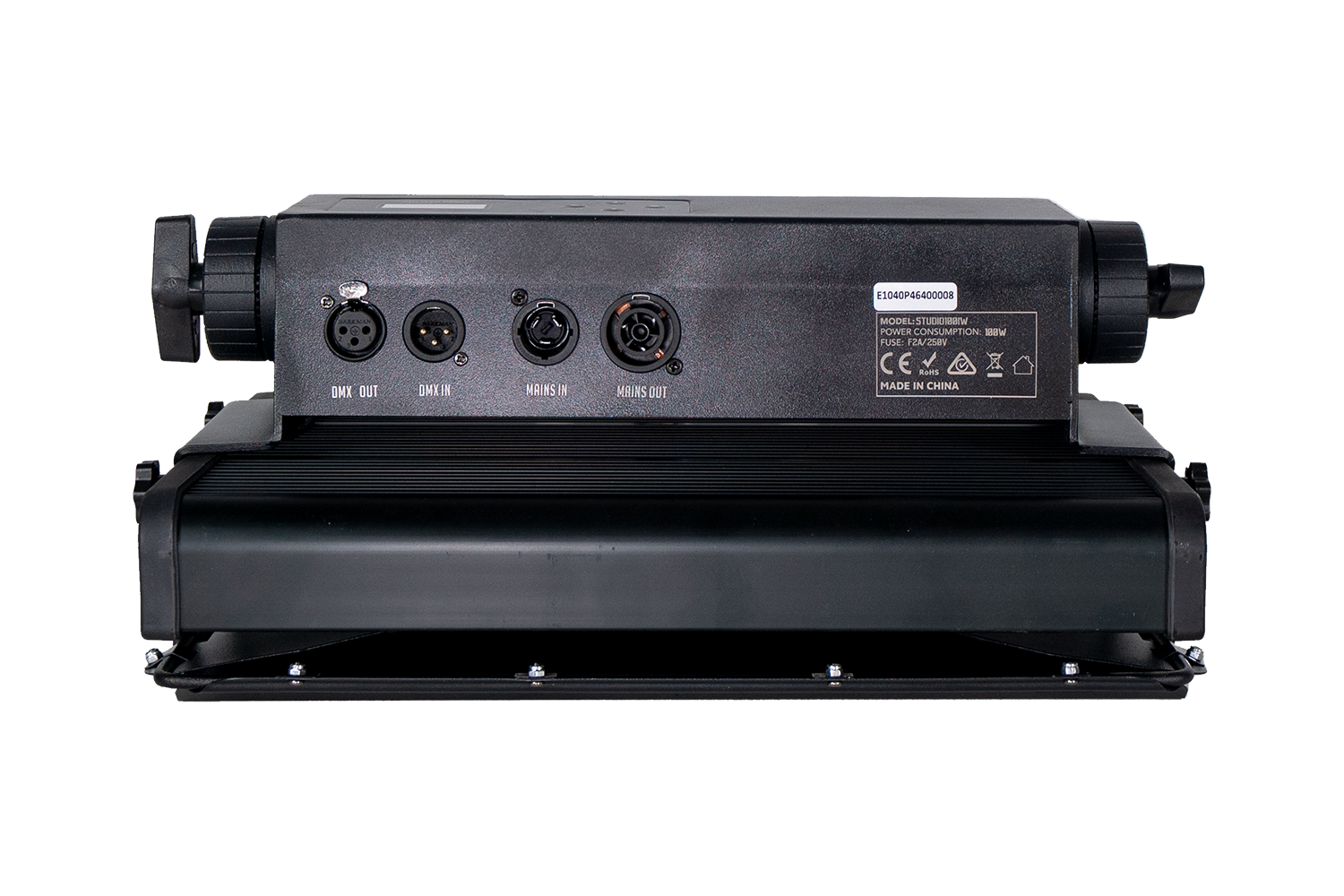

• Control Interface: 3-pin DMX in/out

Housing

• Materials: Die-cast aluminium, matte black finish
• IP Rating: IP20
• Cooling: Fanless
• Dimensions: 355x265x160 mm
• Net Weight: 3.8 kg

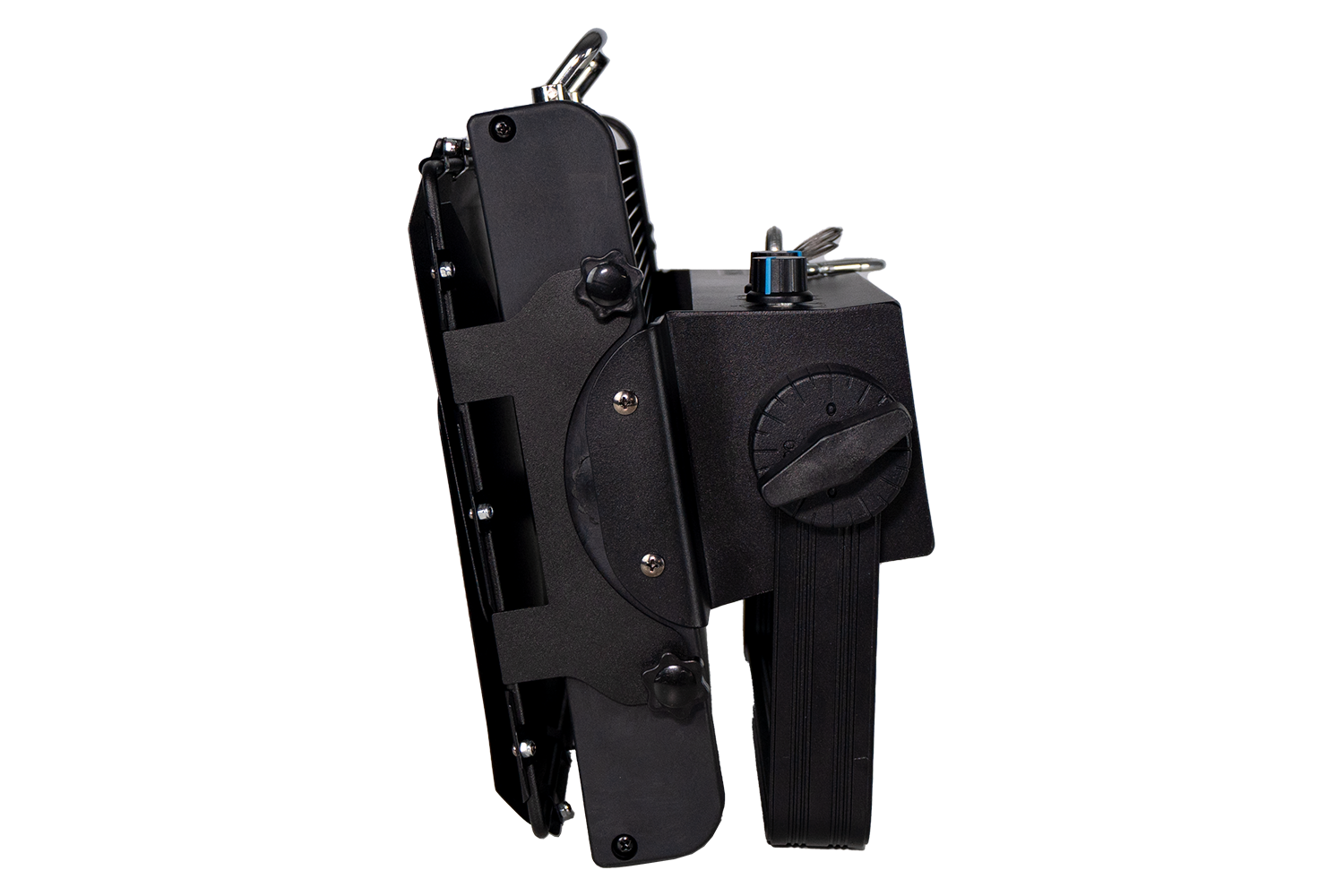

• Tilt Angle: ±90°

Download the User Manual

Warranty: 3 years
