Event Lighting ZP200LE - 200W LED Fresnel / Profile Spot - Light Engine

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

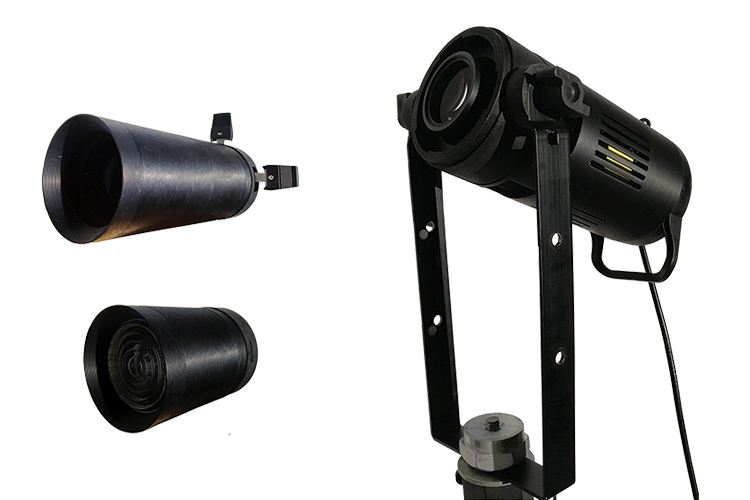

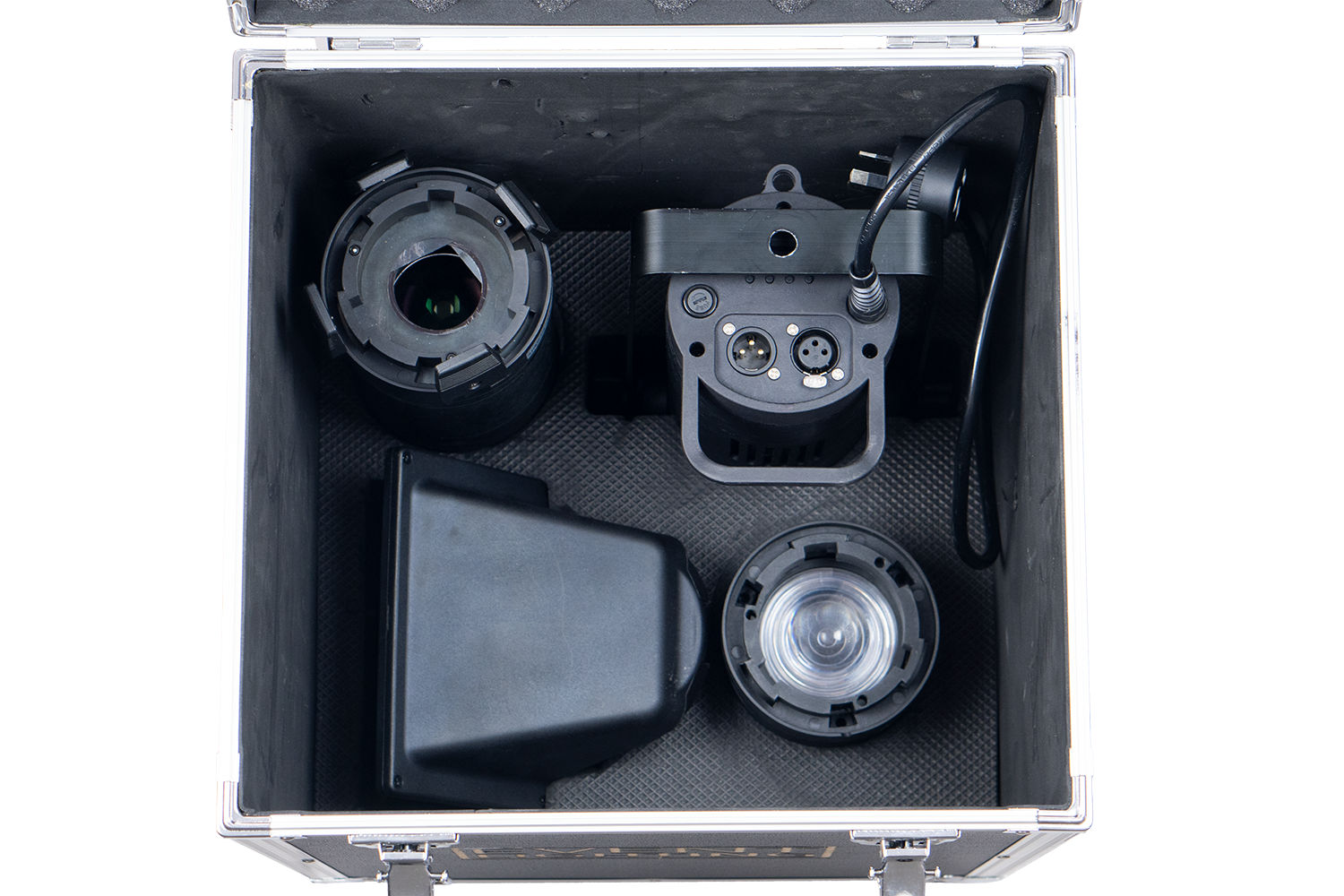

The versatile ZOOMPRO system is comprised of a 200 W Warm White LED Engine, with a choice of lenses. Options include two zoom profile lenses, fresnel lens and cyc lens.

Photometrics

  • Light Source: 3200 K 200 W COB LED
  • CRI: 95
  • PWM: 16,000 Hz
  • LED Lifespan: 50,000 hours

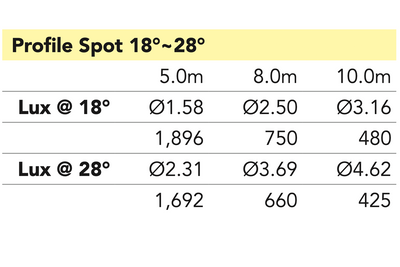

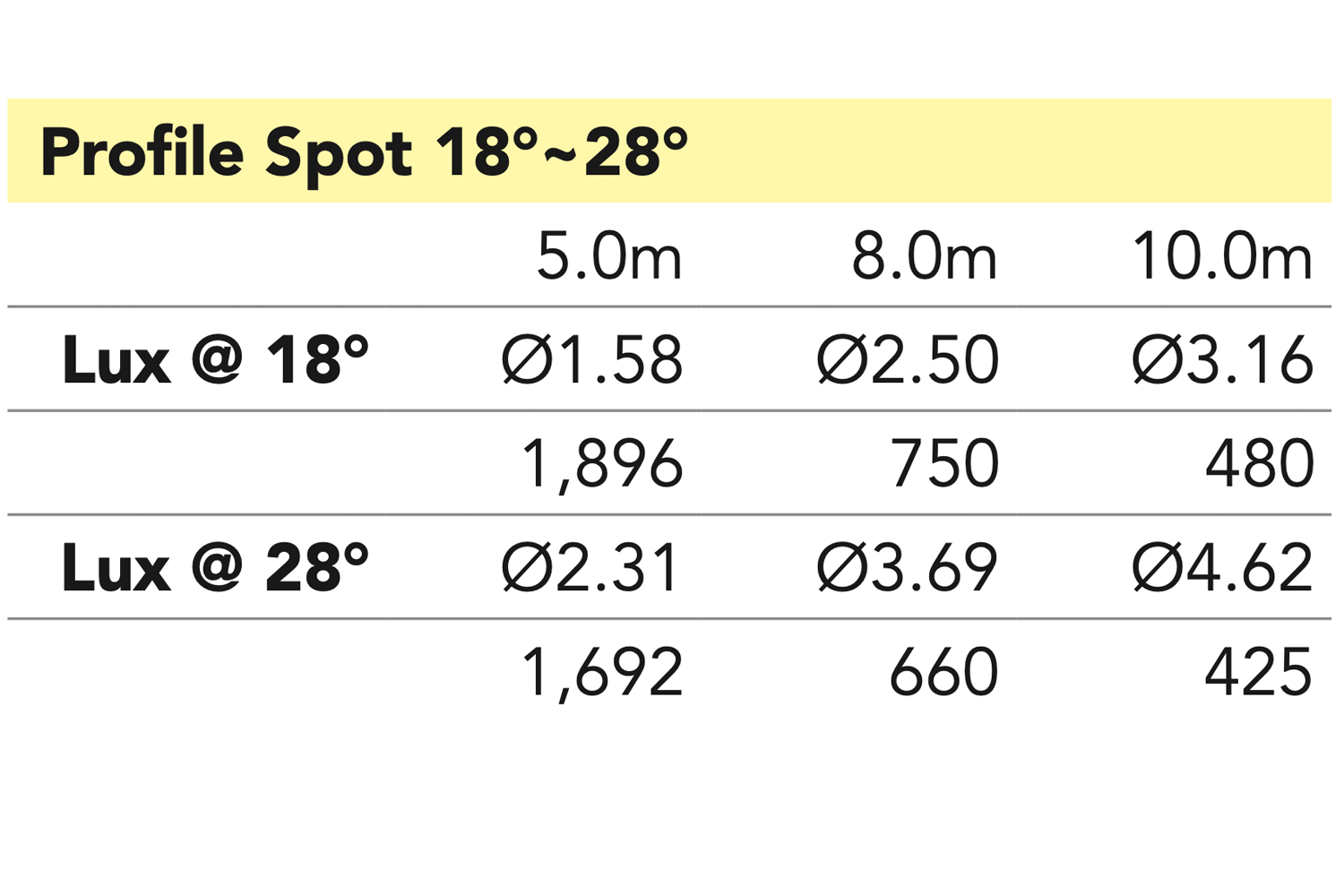

  • PROFILE Lens: ZPLP1828
    • Output: 1896 lux @ 5 m at 18°, 1692 lux @ 5 m at 28°
    • Beam Angle: 18°- 28°
  • PROFILE Lens: ZPLP2636
    • Output: 1896 lux @ 5 m at 26°, 1692 lux @ 5 m at 36°
    • Beam Angle: 26°- 36°

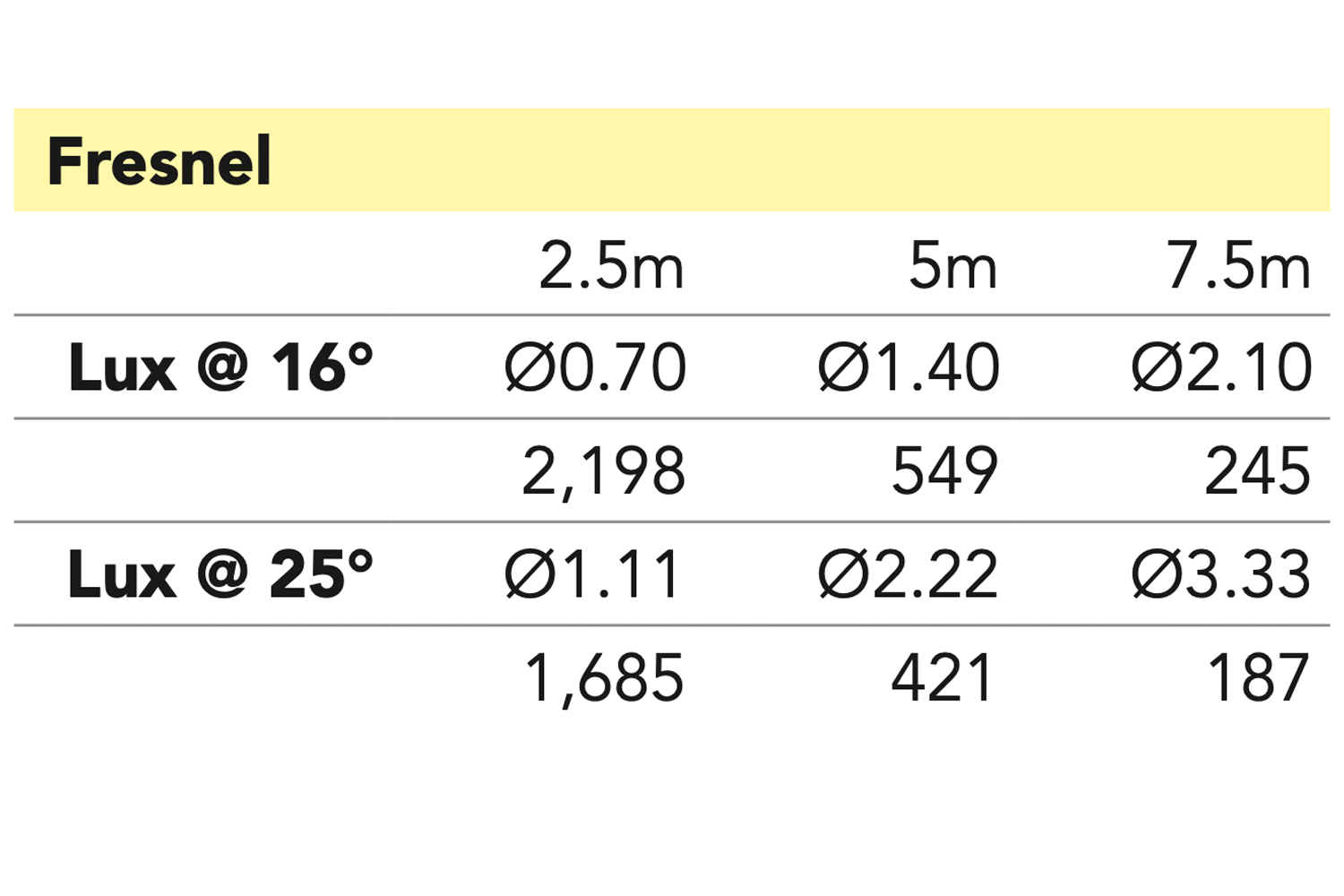

  • FRESNEL Lens: ZPLF 80mm Fresnel
    • Beam Angle: 16°- 25°
    • Field Angle: 30°- 55°
    • Output: 2198 lux @ 2.5 m at 16°, 1685 lux @ 2.5 m at 25°

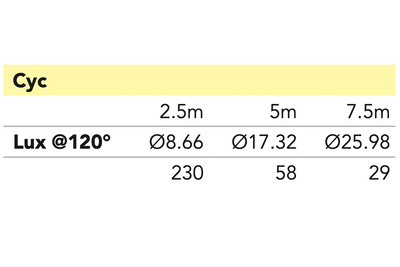

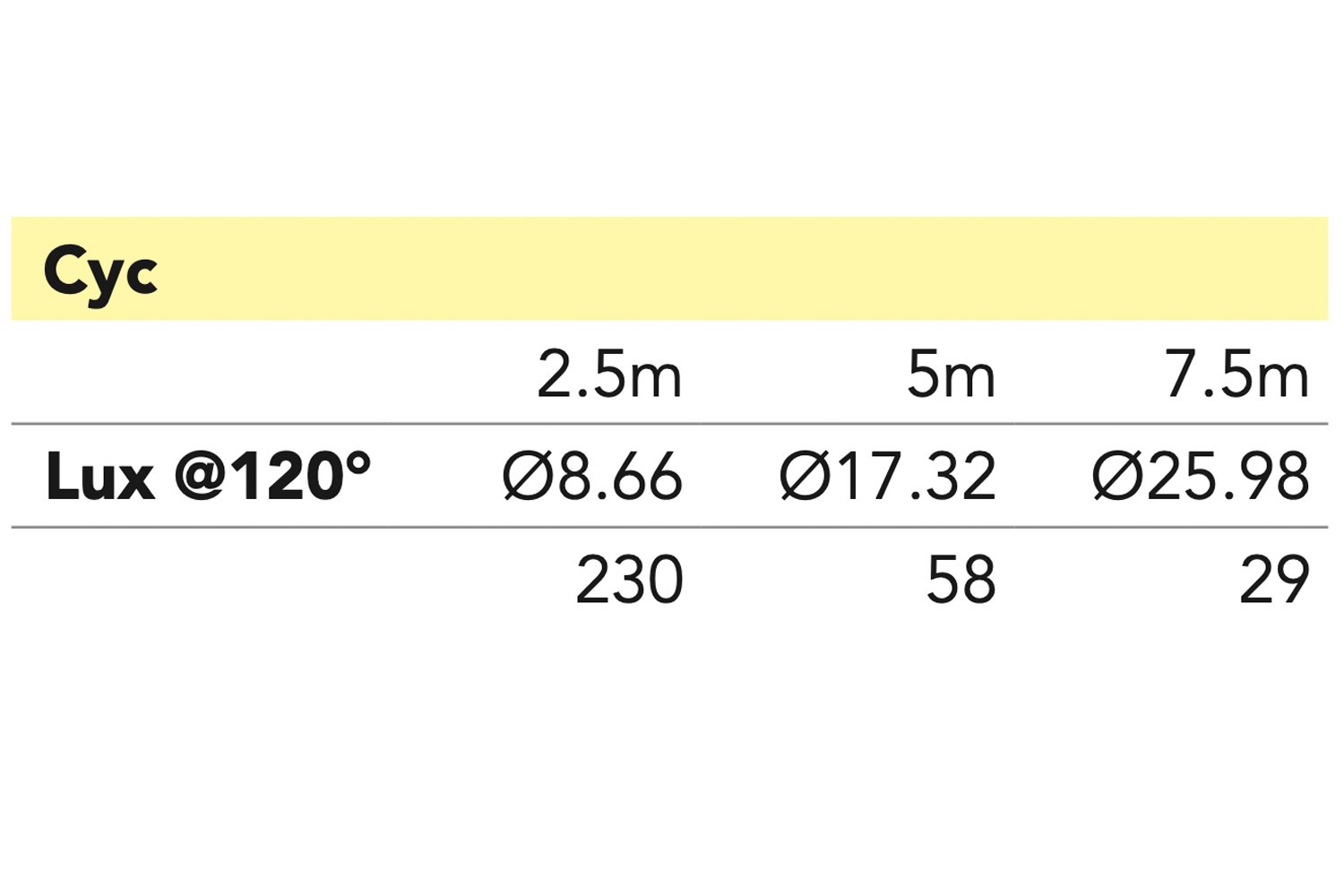

  • CYC Lens: ZPLCYC
    • Output: 210 lux @ 2.5 m at 120°
    • Beam Angle: 120°

Effects

  • Dimming: 0~100%, 8-bit / 16-bit
  • Strobe: 1~25 Hz
  • Zoom: Manual

Power

  • Input Voltage: 100~240 V AC, 50/60 Hz, 200 W
  • Power Connection: Fixed

Control

  • Operational Modes: DMX, Manual & Master / Slave
  • Display: 4-Button LCD control panel
  • DMX Protocol: DMX512
  • DMX Channel Mode: 1 / 2 / 3
  • DMX Interface: 3-pin XLR

Housing

  • Housing Materials: Aluminium, matte black finish
  • Cooling: Sensor Thermostat Controlled Variable Speed Fan

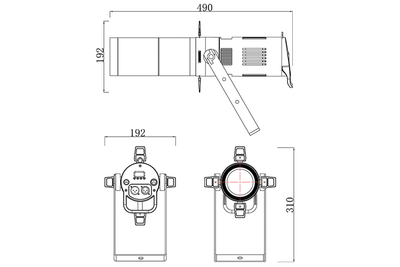

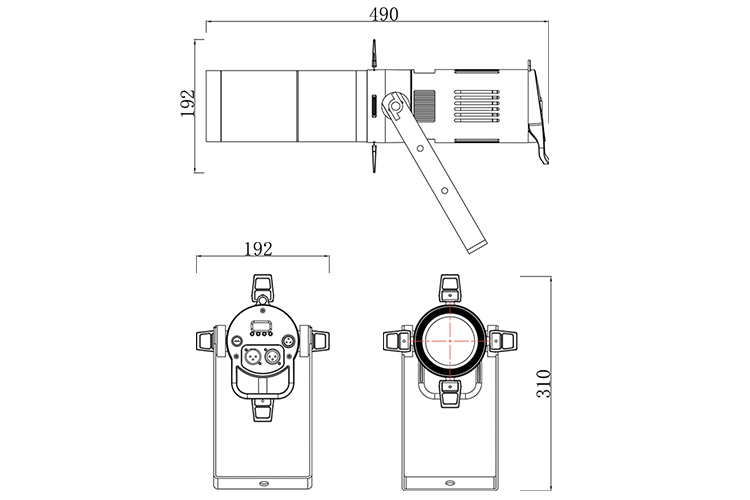

  • Dimension: LED Engine: 241 X 105 X 310 mm
    • Profile Lens: 262 X 192 X 192 mm
    • Fresnel Lens: 105 X 105 X 151 mm
  • Net Weight: LED Engine 9kg
    • Profile Lens: 1.9 kg
    • Fresnel Lens: 0.9 kg
    • Cyc Lens: 0.4 kg

Product Specification Sheet Download
