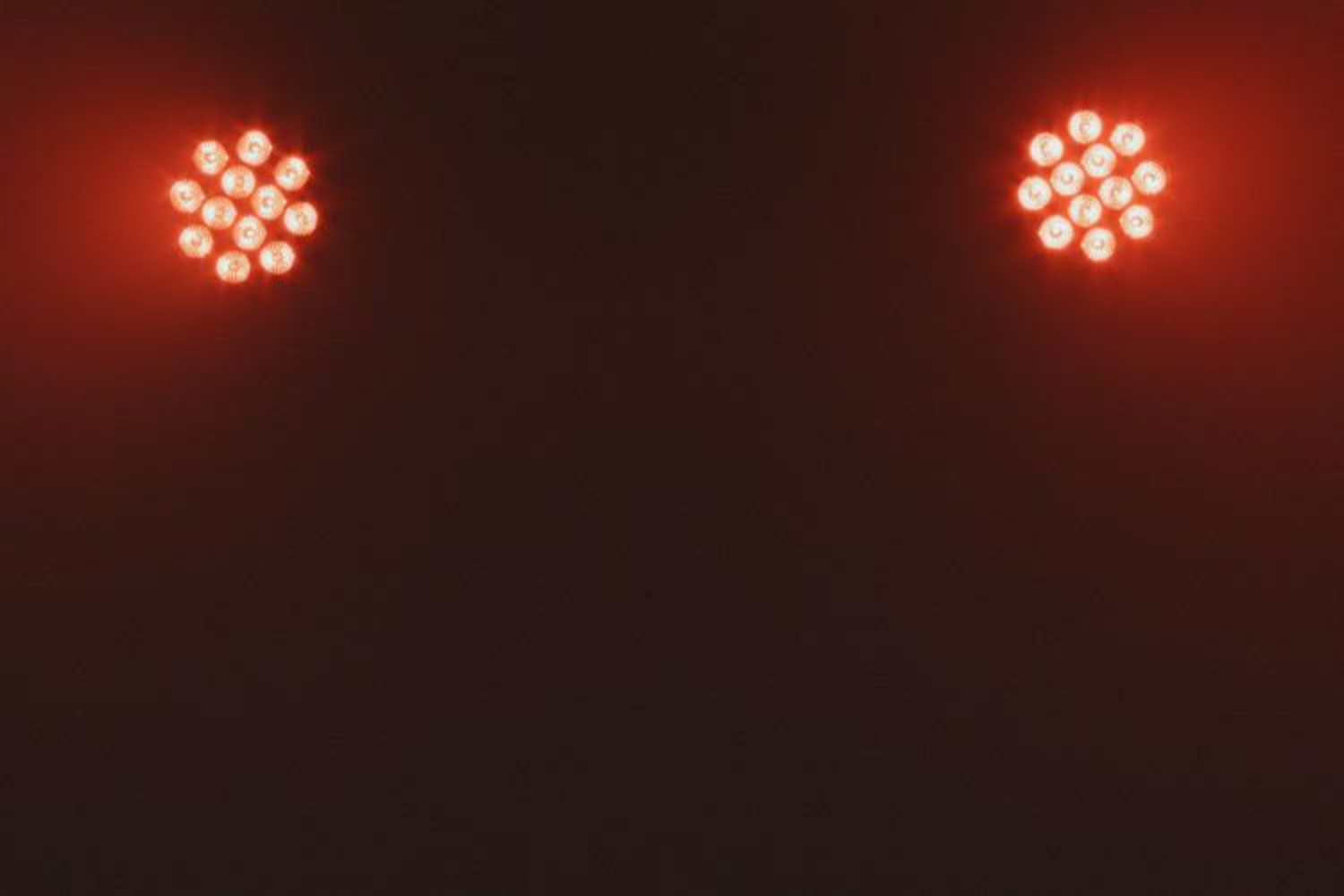

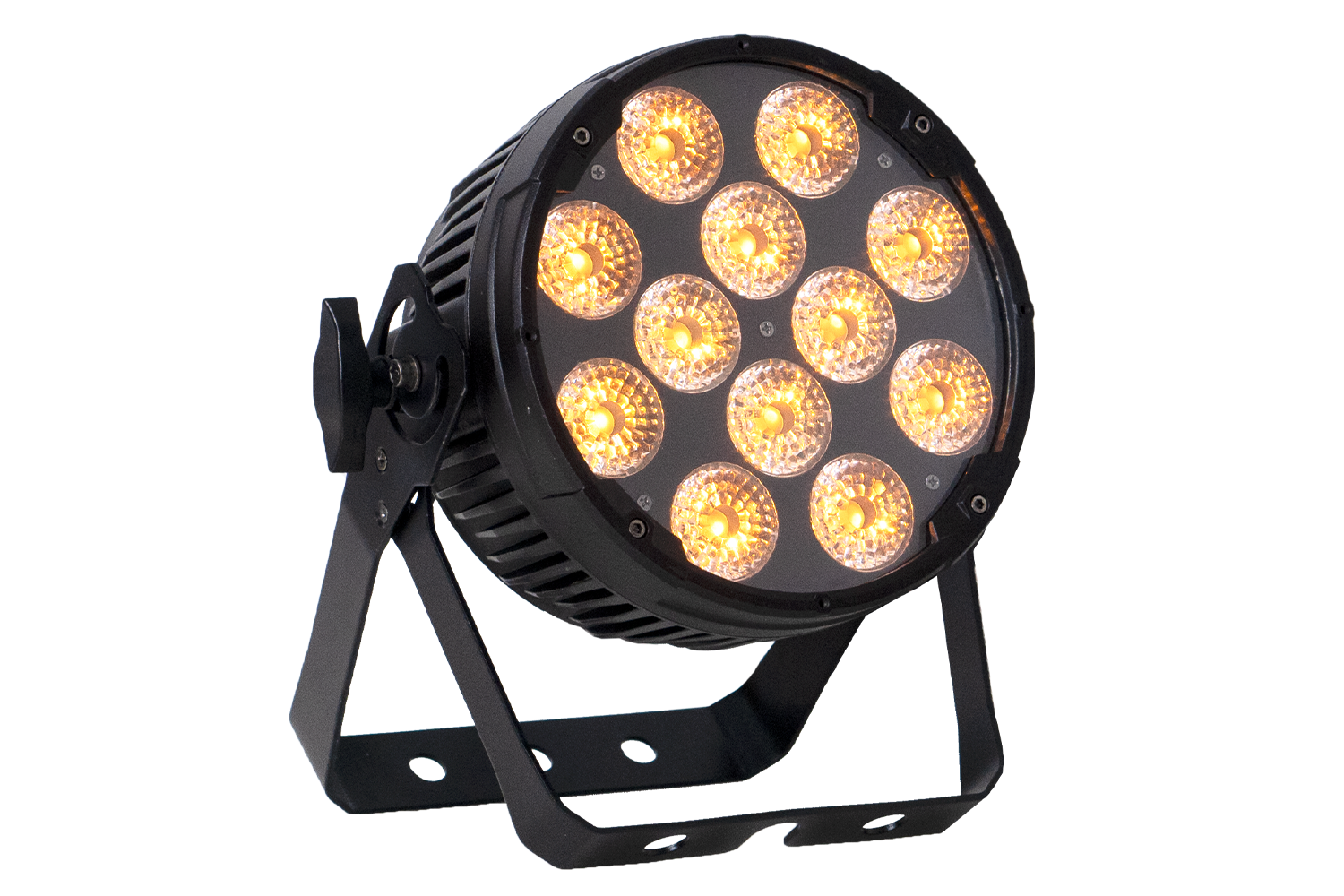

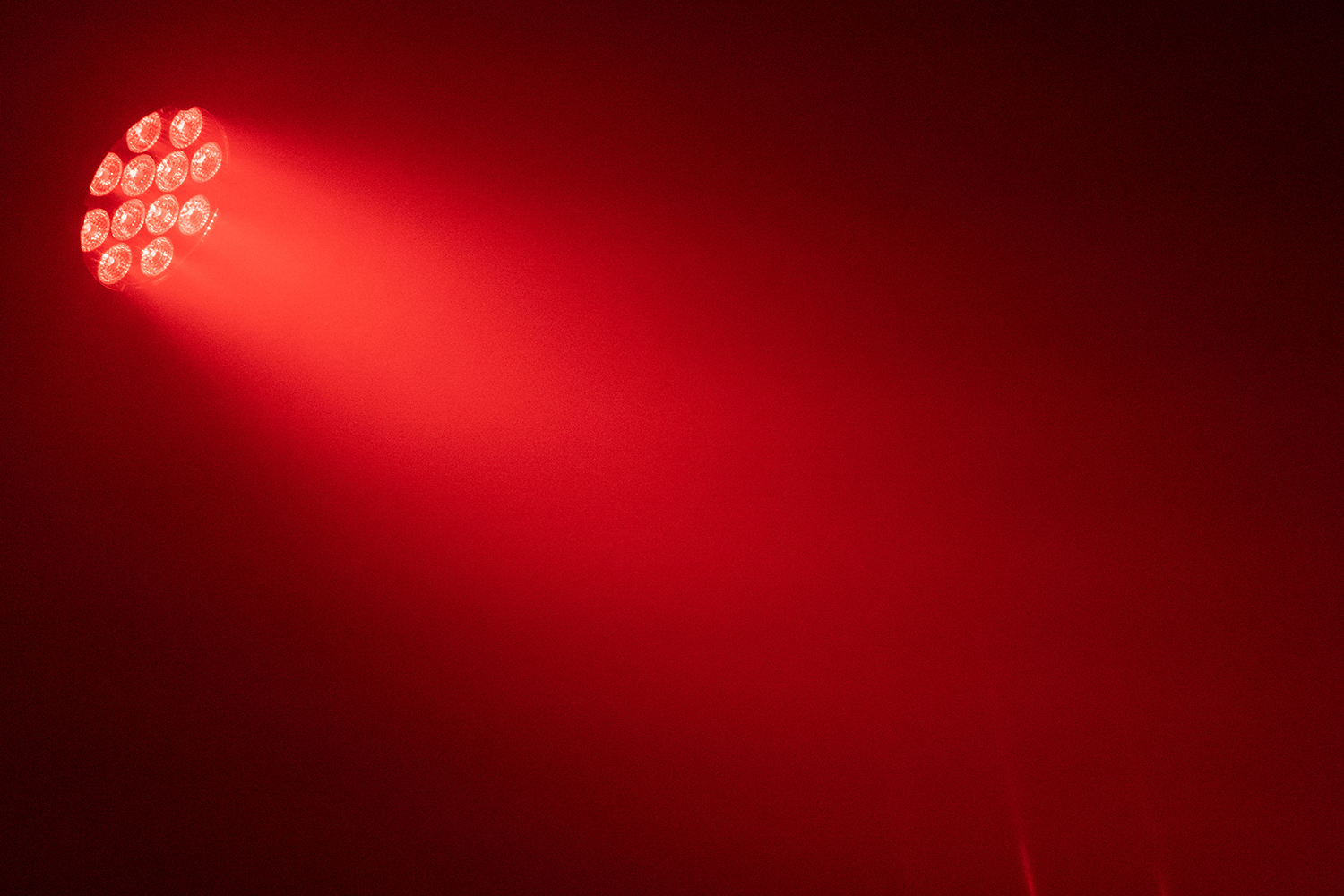

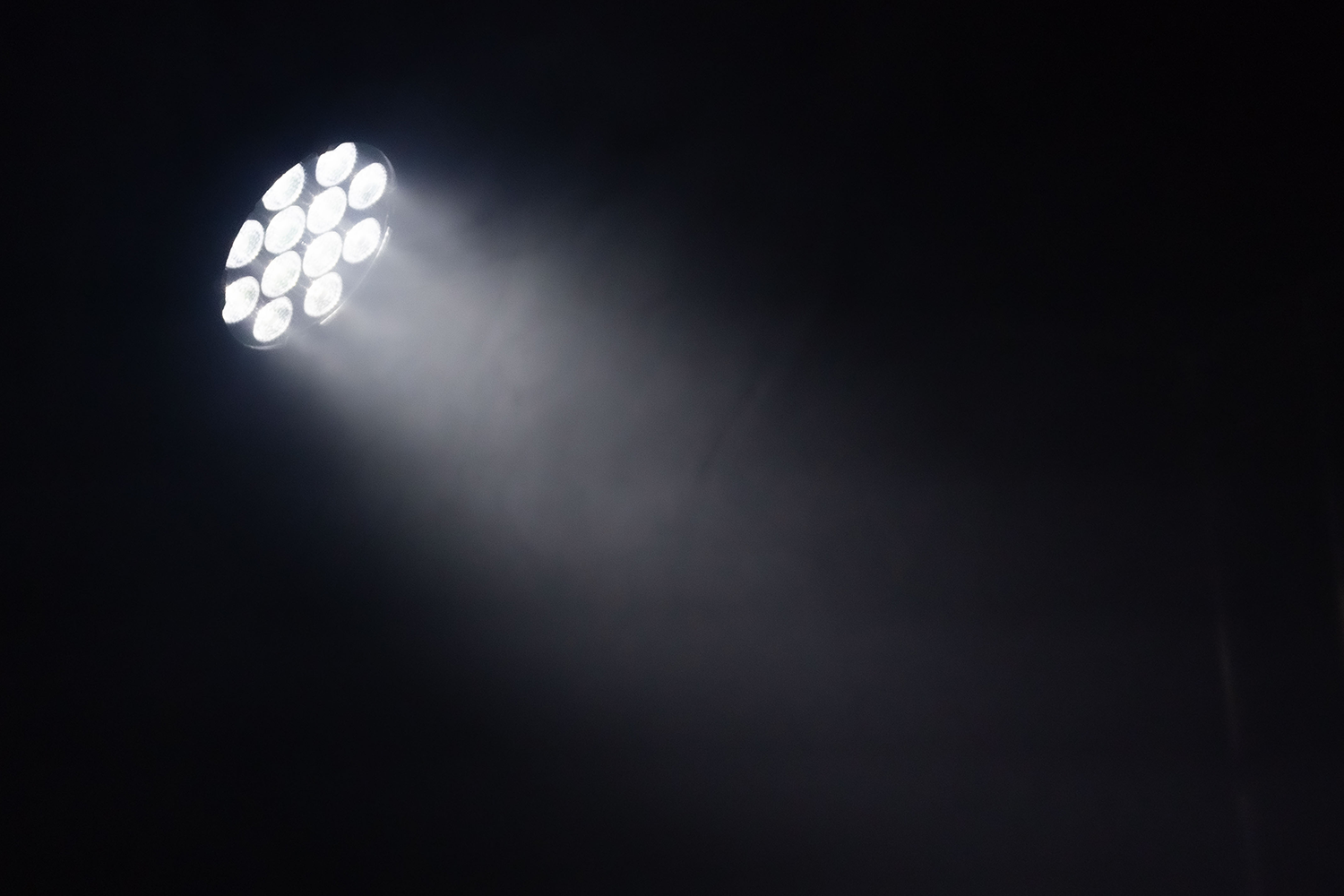

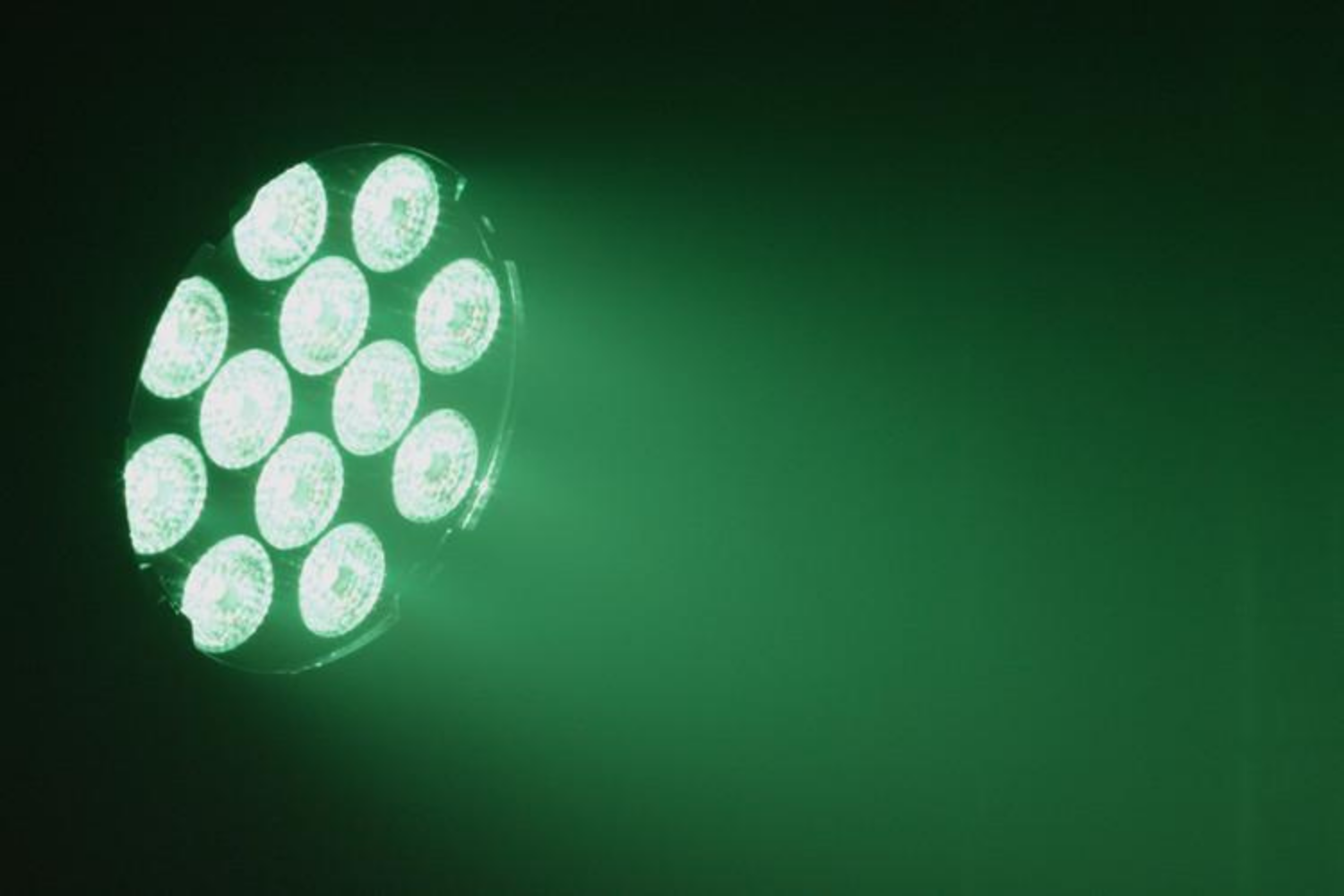

Event Lighting PAR12x12 - 12x12 W RGBWAU Pro PAR

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

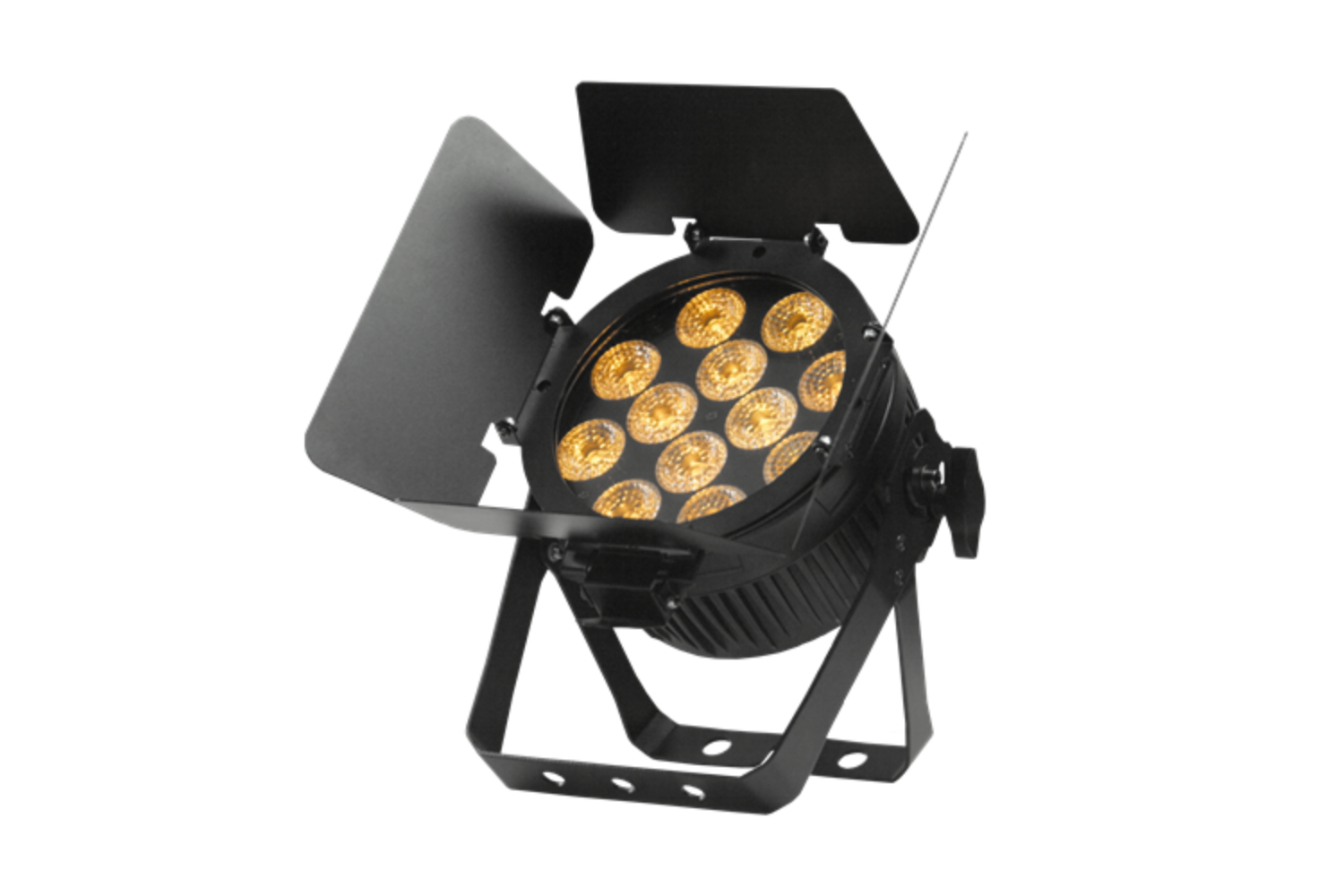

Event Lighting's most popular pro par, the PAR12X12 is a versatile 6-in-1 fixture in a tough die cast aluminium housing.

Photometrics

  • Light Source: 12x 12W RGBWAU LEDs

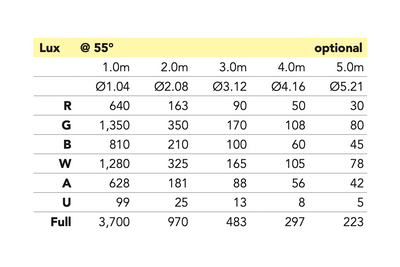

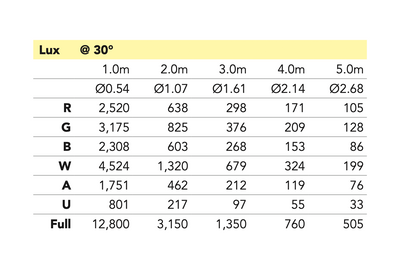

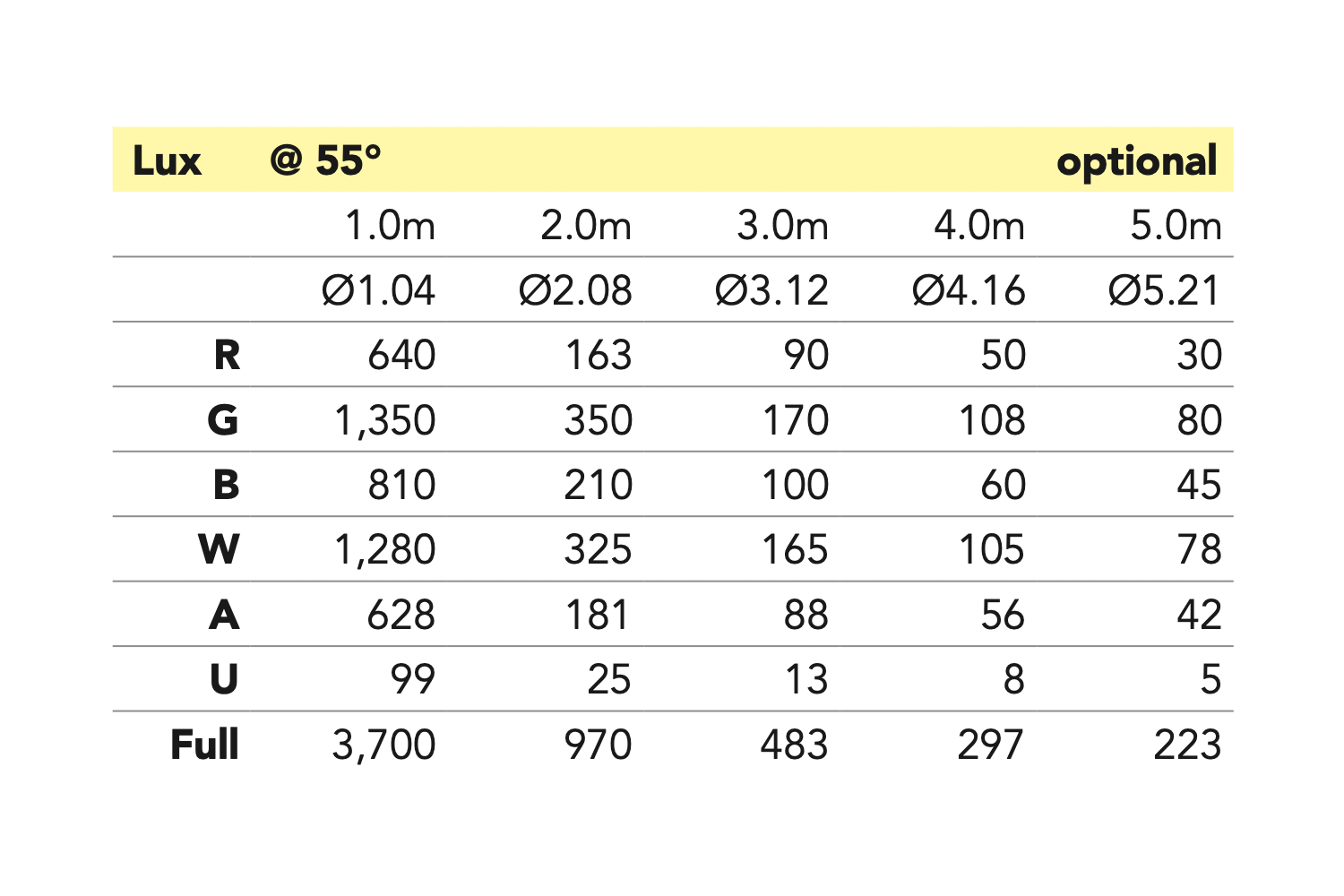

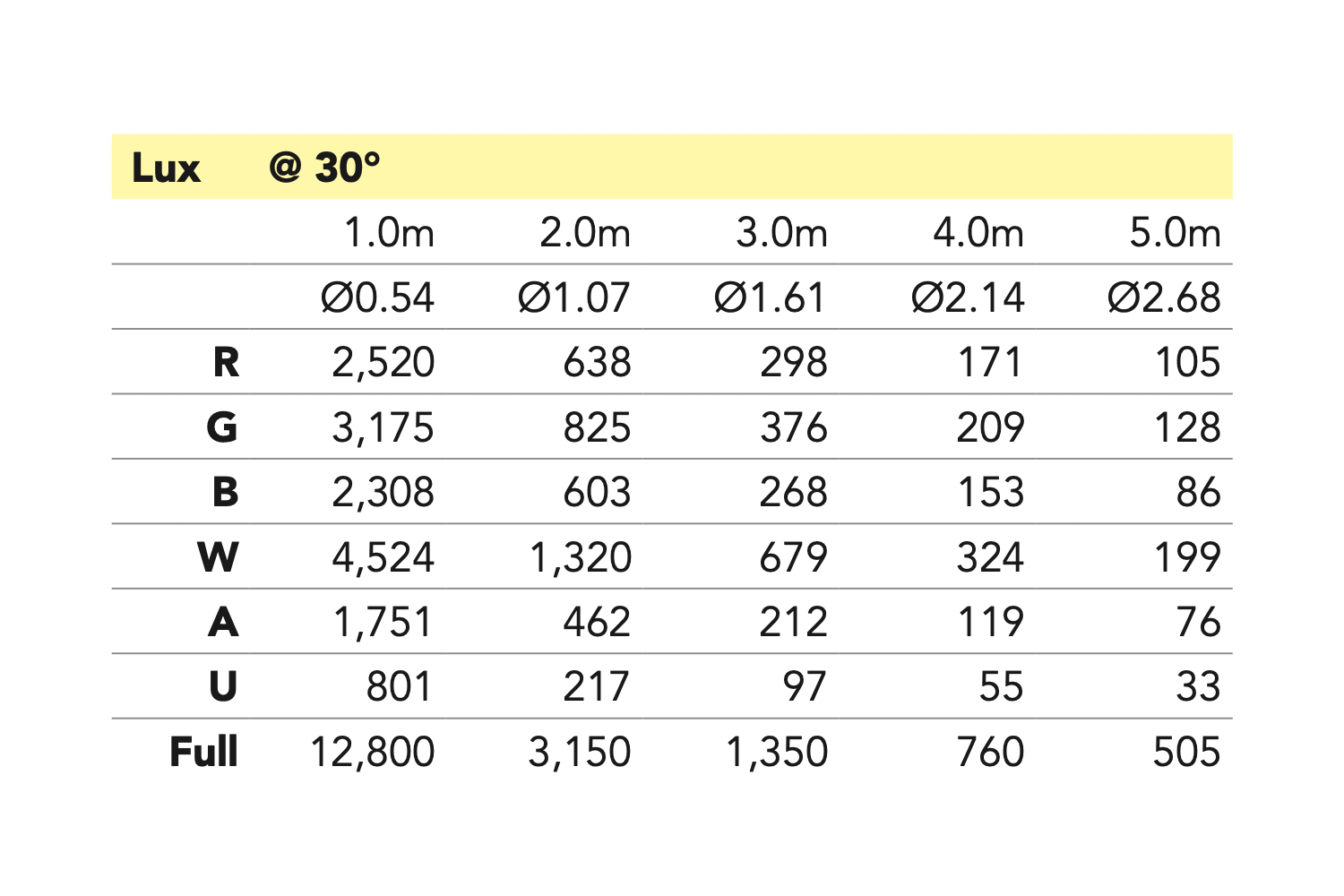

  • Beam Angle: 30° (optional: 55° )
  • Output: 3,150 lux @ 2.0 m RGBWAU full on
  • PWM: 2,940 Hz
  • LED Life: 50,000 hours

Effects

  • Dimming: 8-bit Dimming Control / 4 x 16-bit Dimming Curves
  • Strobe: 1~30 Hz

Power

  • Input Voltage: 100V~240 V AC, 50/60Hz, 120 W

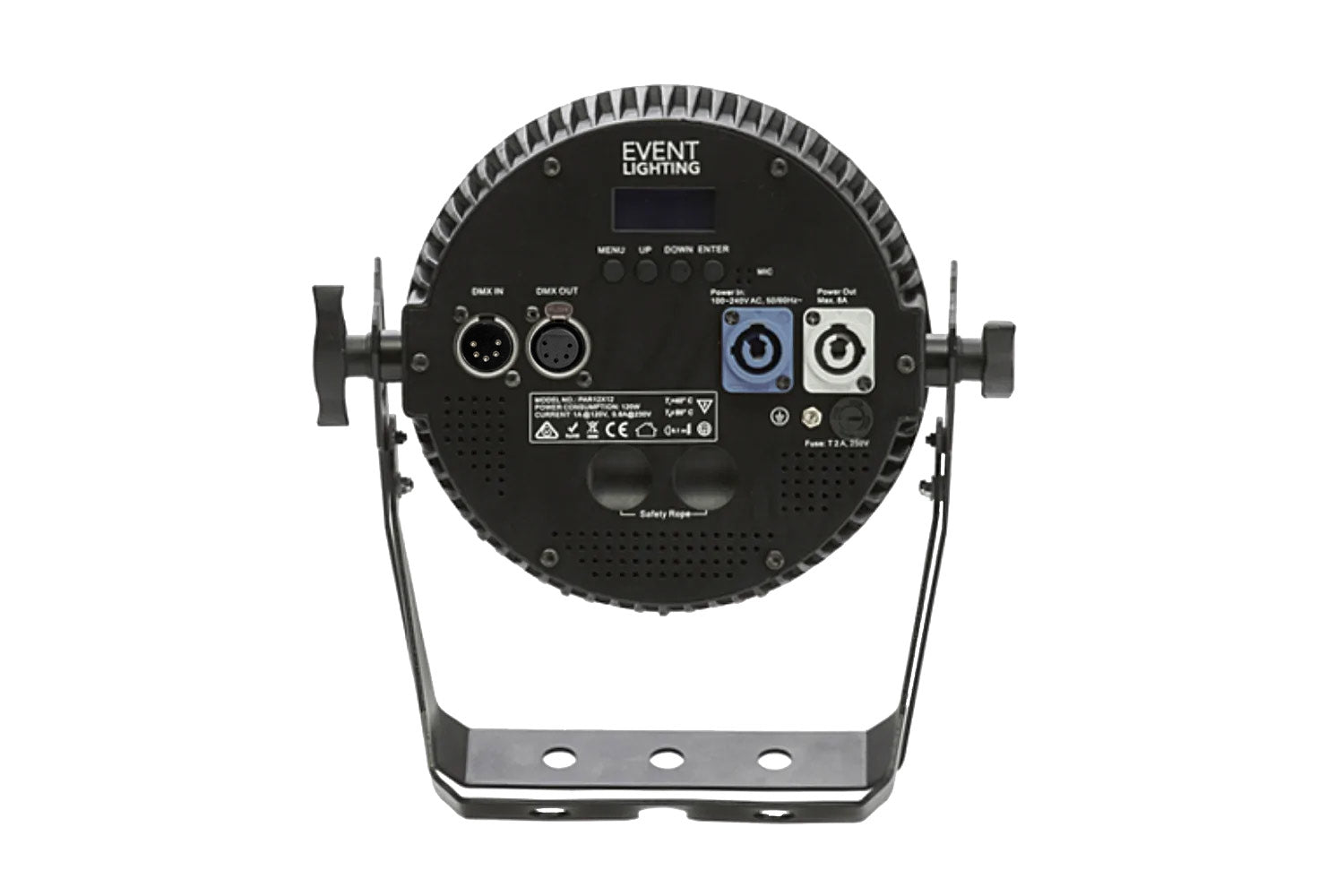

  • Power Connection: Neutrik® powerCON in/out

Control

  • Operational Modes: DMX, manual, auto, sound active, master/slave, multi-fixture chase
  • Display: 4-button LCD control panel
  • DMX Protocol: DMX512
  • DMX Channel Mode: 2 / 3 / 6 / 8 / 12
  • DMX Interface: 3-pin XLR (optional: 5-pin XLR)
  • Software Upgrade via DMX: Yes

Housing

  • Housing Materials: Die-cast aluminium, matte black finish
  • Cooling: Fanless Cooling

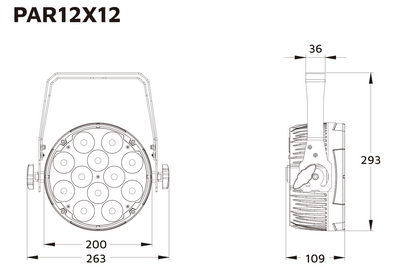

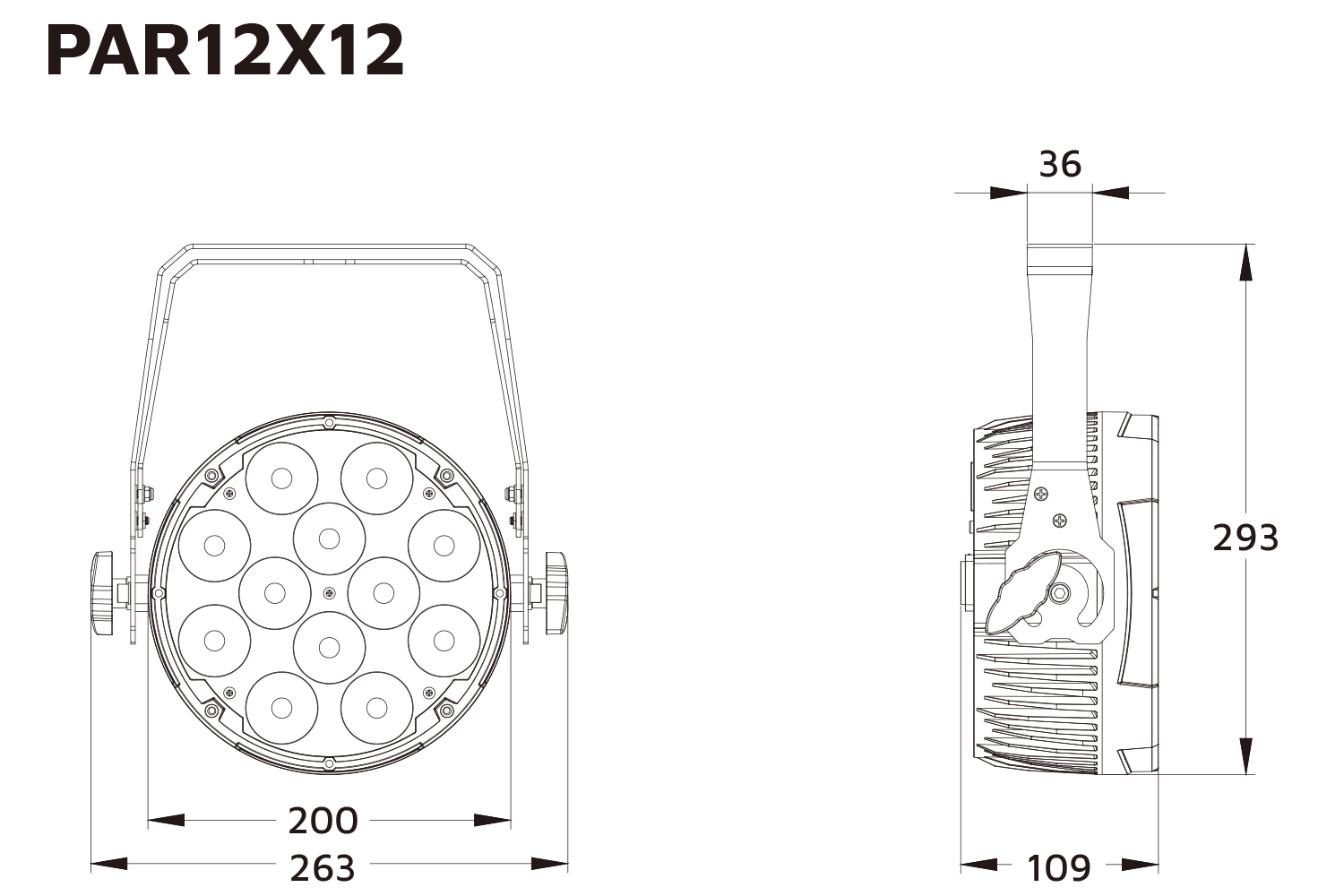

  • Dimension: 263 x 293 x 109 mm
  • Net Weight: 3.2 kg

Product Specification Sheet Download

User Manual Ver2.0 Download
