Event Lighting M19W20RGBW - 19x 20W Zoom Wash Moving Head

Photometrics

• Light Source: 19 pcs Osram® 20W RGBW LED
• Beam Angle: 6 - 60°

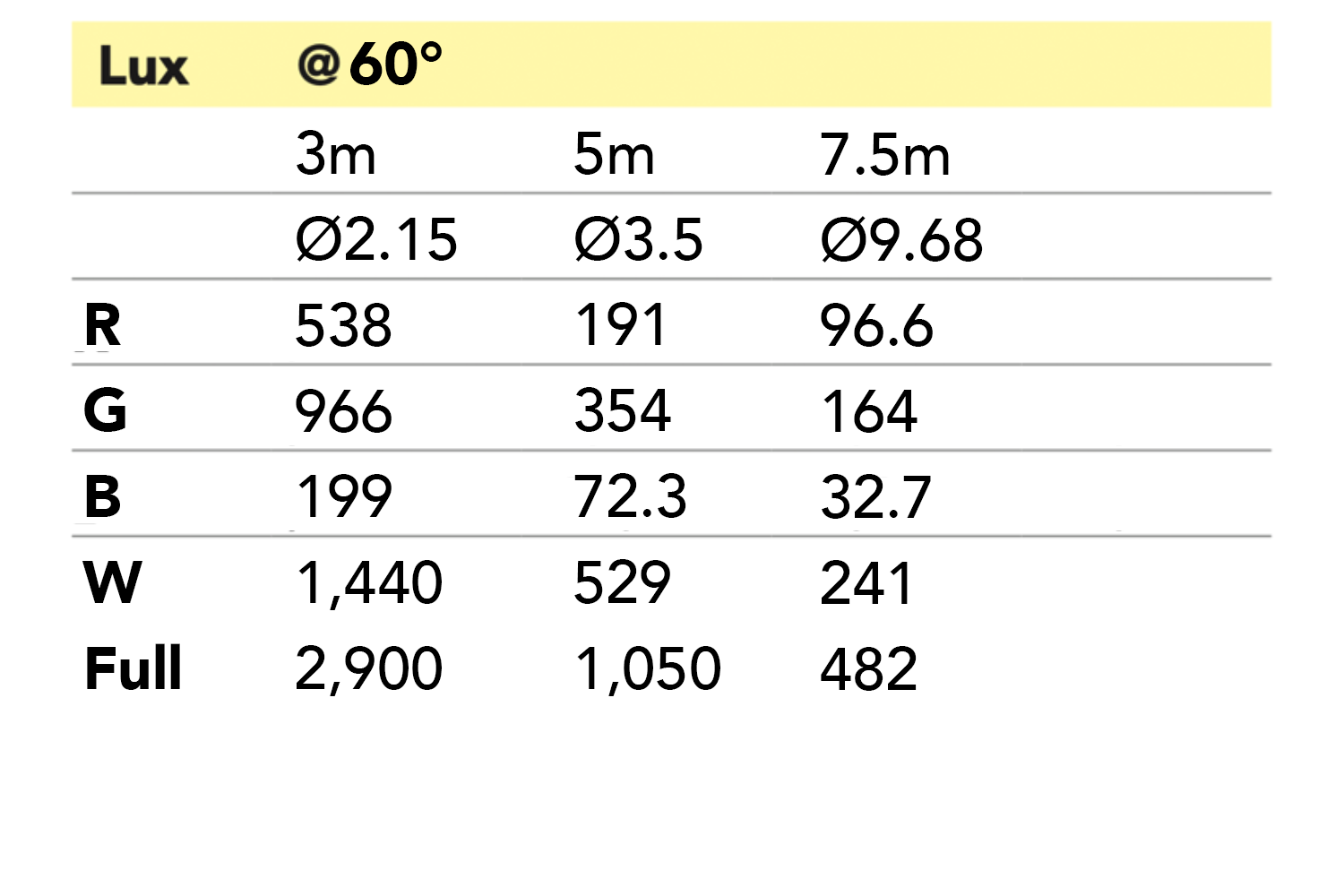

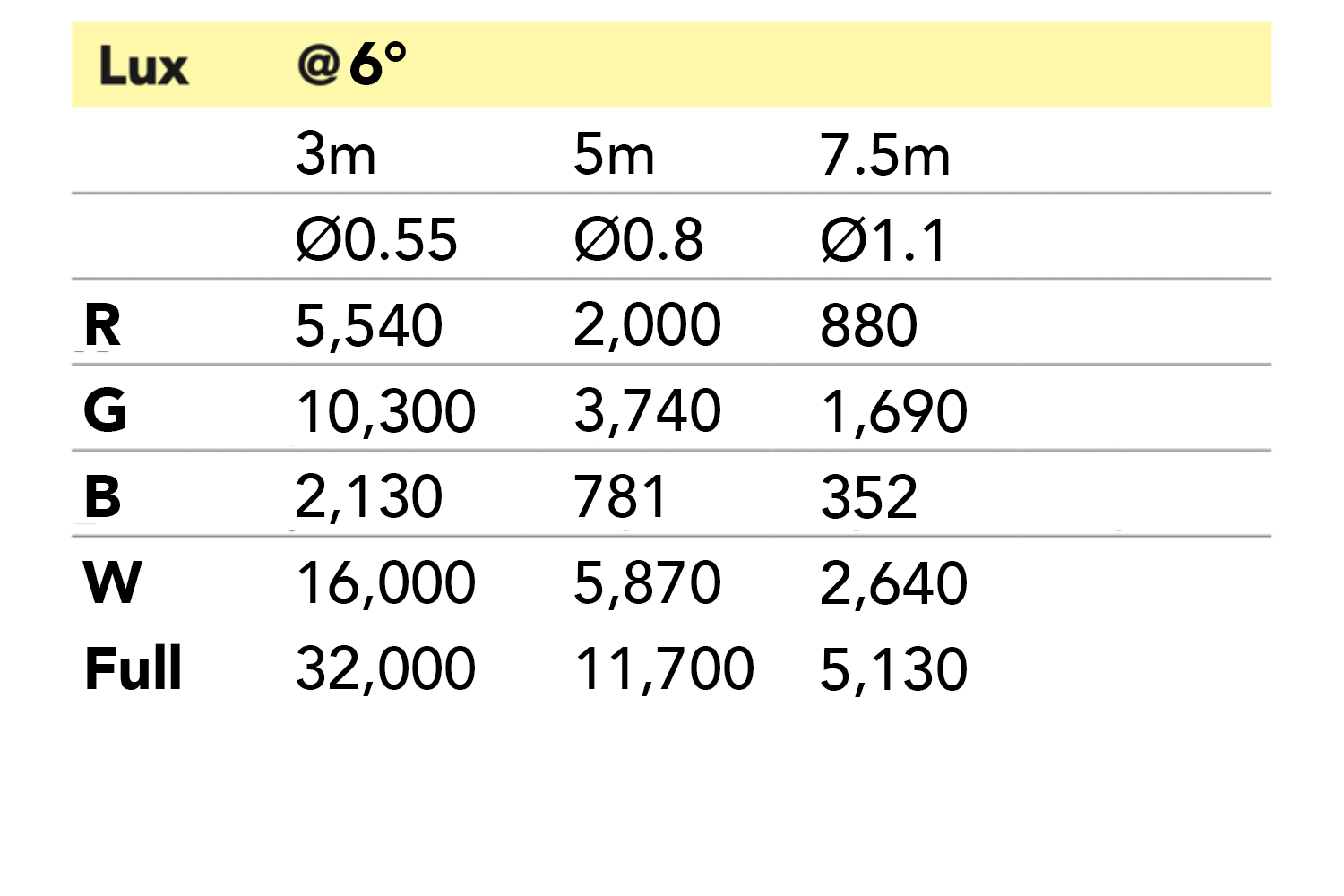

• Output: 31,500 lux RGBW full on @3M at 6°, 2760 lux RGBW full on @3M at 60°
• PWM: 1200Hz
• LED Lifespan: 60,000 hours

Effects

• Dimming: 0 ~ 100%
• Pixel Control: Yes
• Strobe: 0.5 ~26 Hz
• Zoom: Electronic Linear 6 - 60°

Movement 8 / 16 bit Auto Reposition

• Pan: 630°( 2.2 sec) or 540°( 2.0 sec)
• Tilt: 265° (0.85 sec)

Control

• Operational Modes: DMX, Auto Program, Sound Active, Master / Slave
• RDM: Yes
• Protocol: DMX512 (W-DMX™ Optional)
• DMX Channels: 19 / 98 / 18 /20
• Interface: 3-pin XLR & 5-pin XLR
• Display: 2.4″ Colour LCD control panel with back-up power.
• Software Upgrade via DMX: Yes

Power

• Input Voltage: 100~240V AC, 50/60 Hz
• Power Consumption: 240W (input)
• Connection: Neutrik® PowerCON – In / Out

Housing

• Materials: ABS & Steel
• Finishing: Matte black
• Cooling: Multi Sensor Thermostat Controlled Variable Speed Fan
• IP rating: IP20
• Net Weight: 12 kg
• Rigging: 2pcs Omega Brackets with 1/4-turn Quick Locks

MISC

• Road case: MCASE2LS
