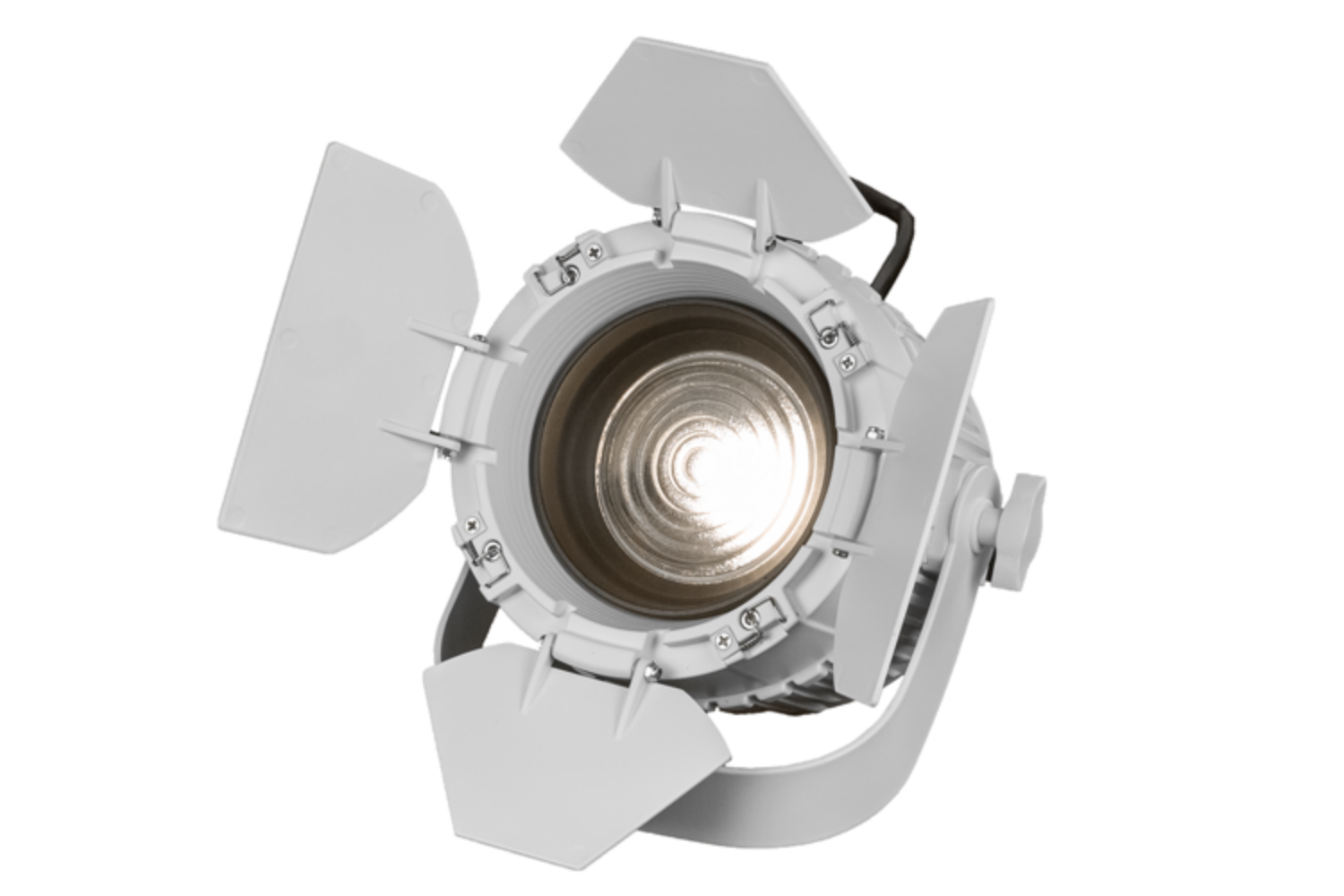

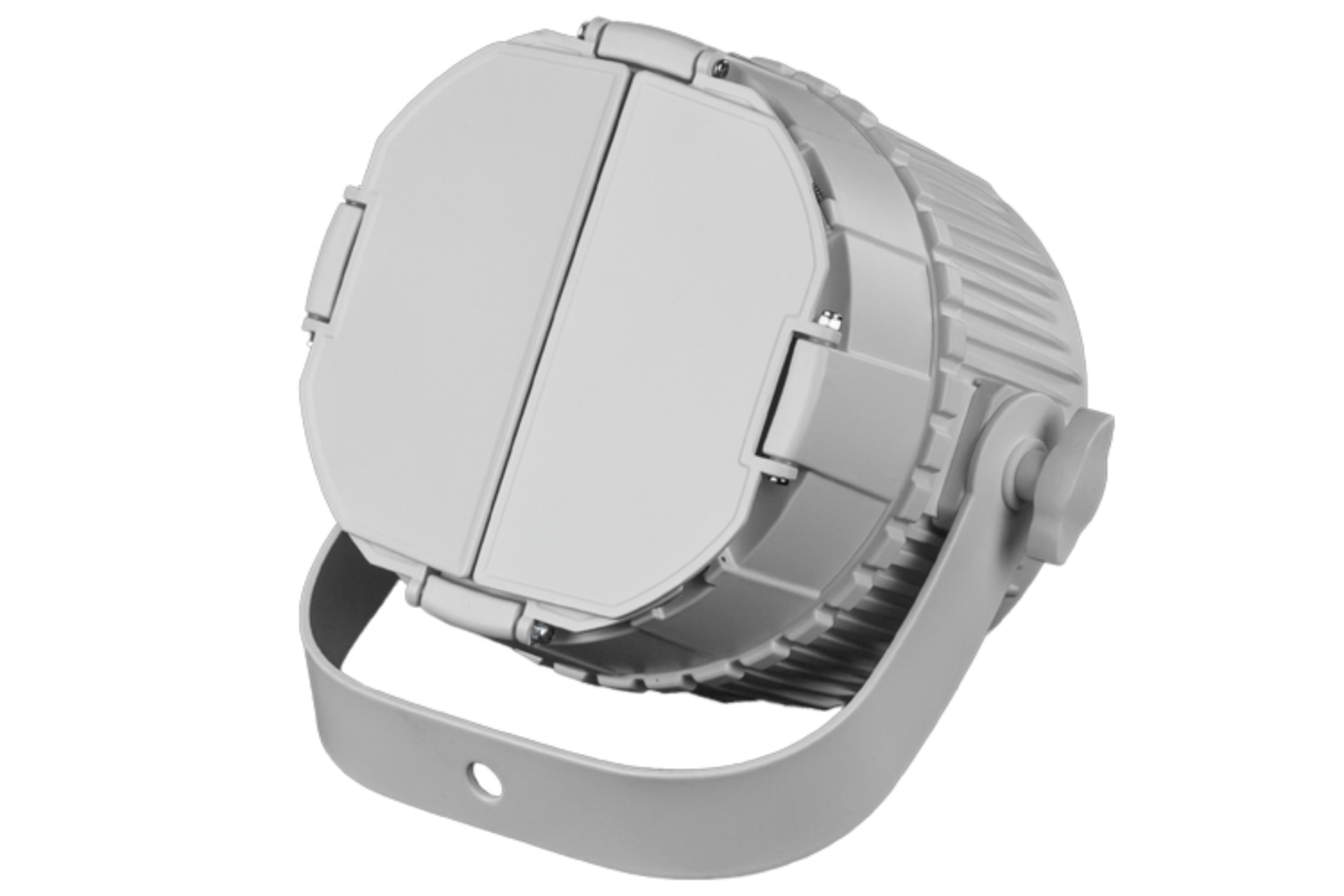

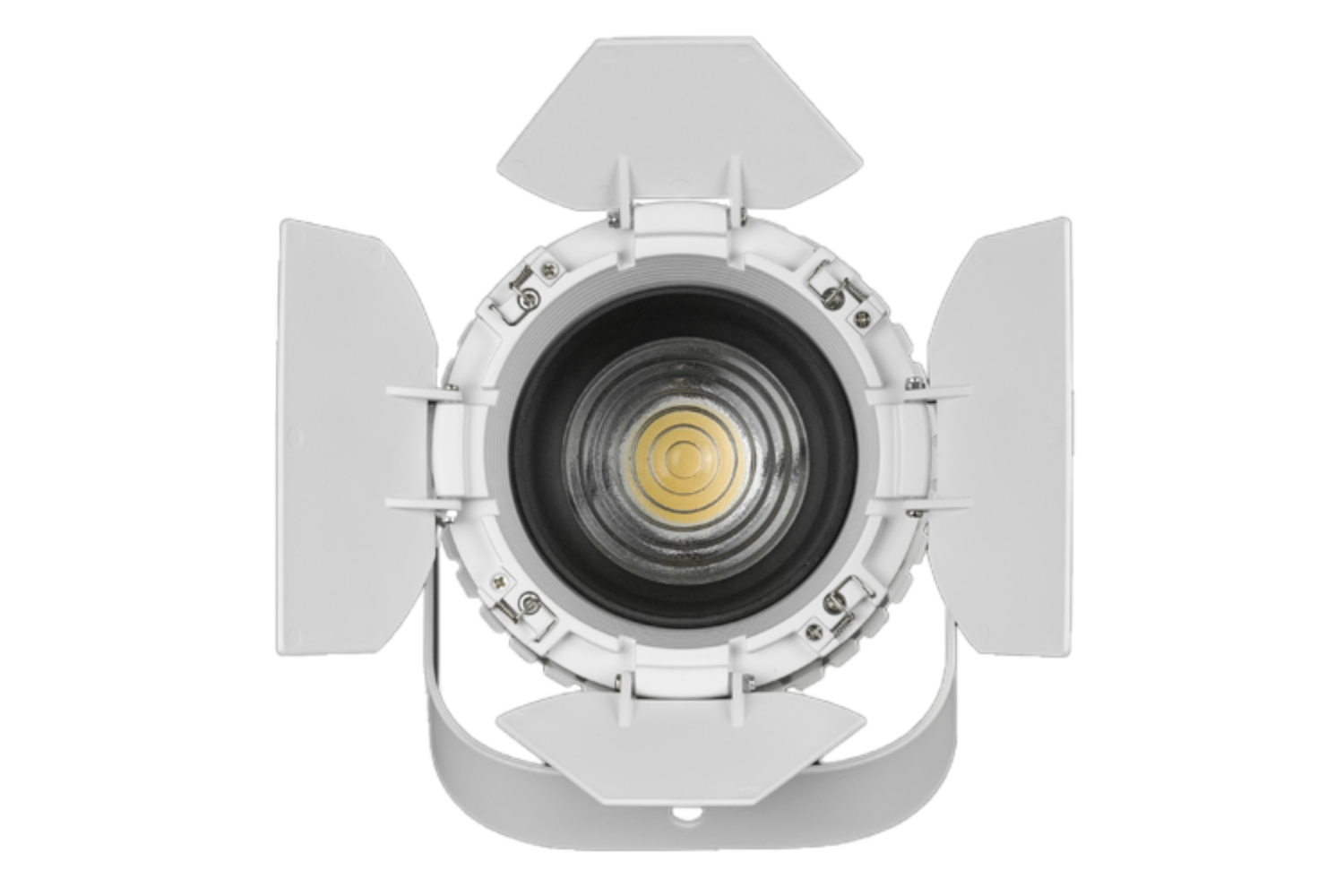

Event Lighting F2X48W - Variable Colour Temperature Fresnel with Manual Zoom (White)

Power

• Power Supply: 100~240V AC, 50/60 Hz
• Power Consumption: 75W
• Power Connection: Neutrik® PowerCON in / out

Photometrics

• Light Source: 1 x 48W cool white 5700K and 1 x 48W warm white 2700K COB LED
• CRI: 95
• Beam Angle: 20° - 50°
• Field Angle: 50° - 67°

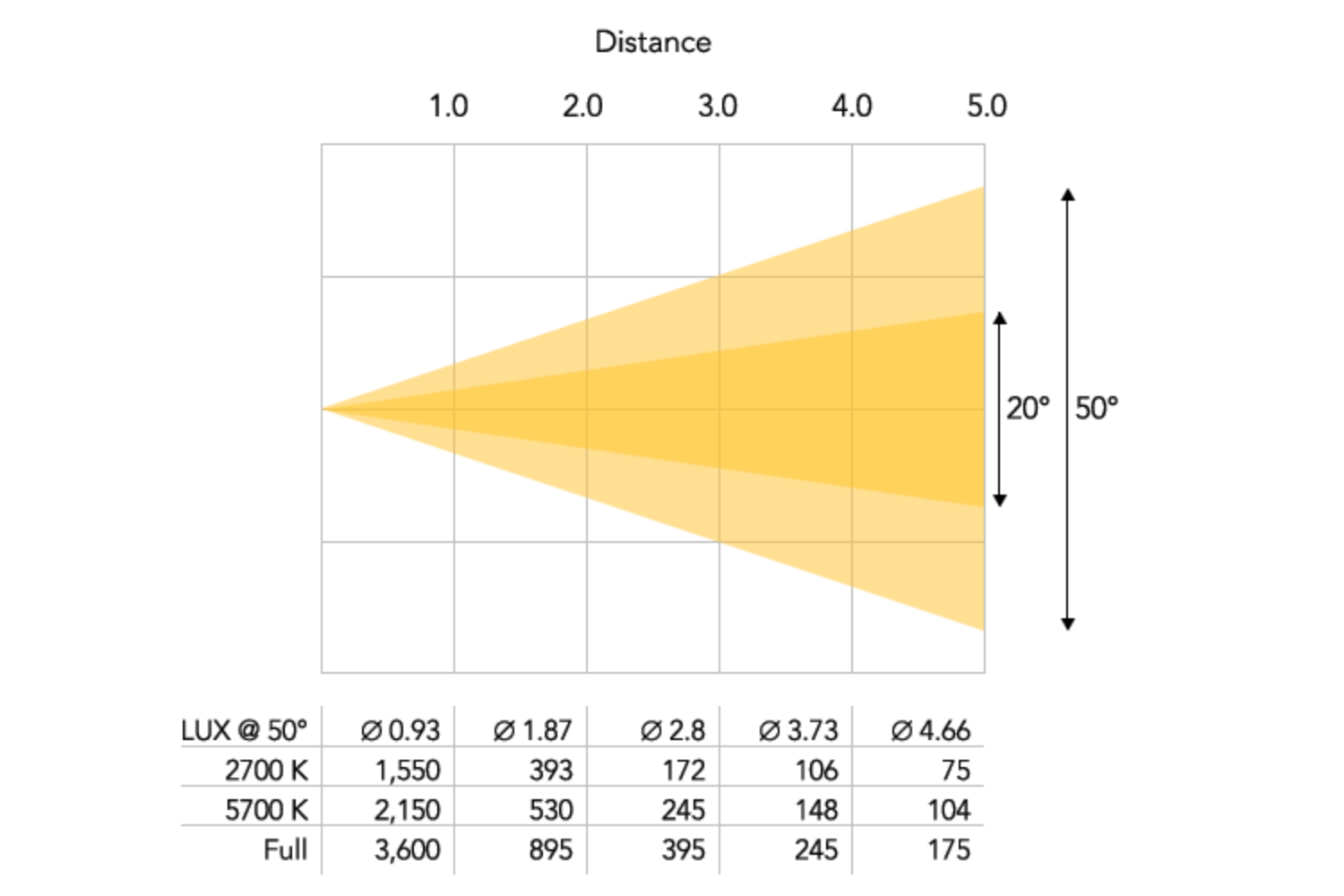

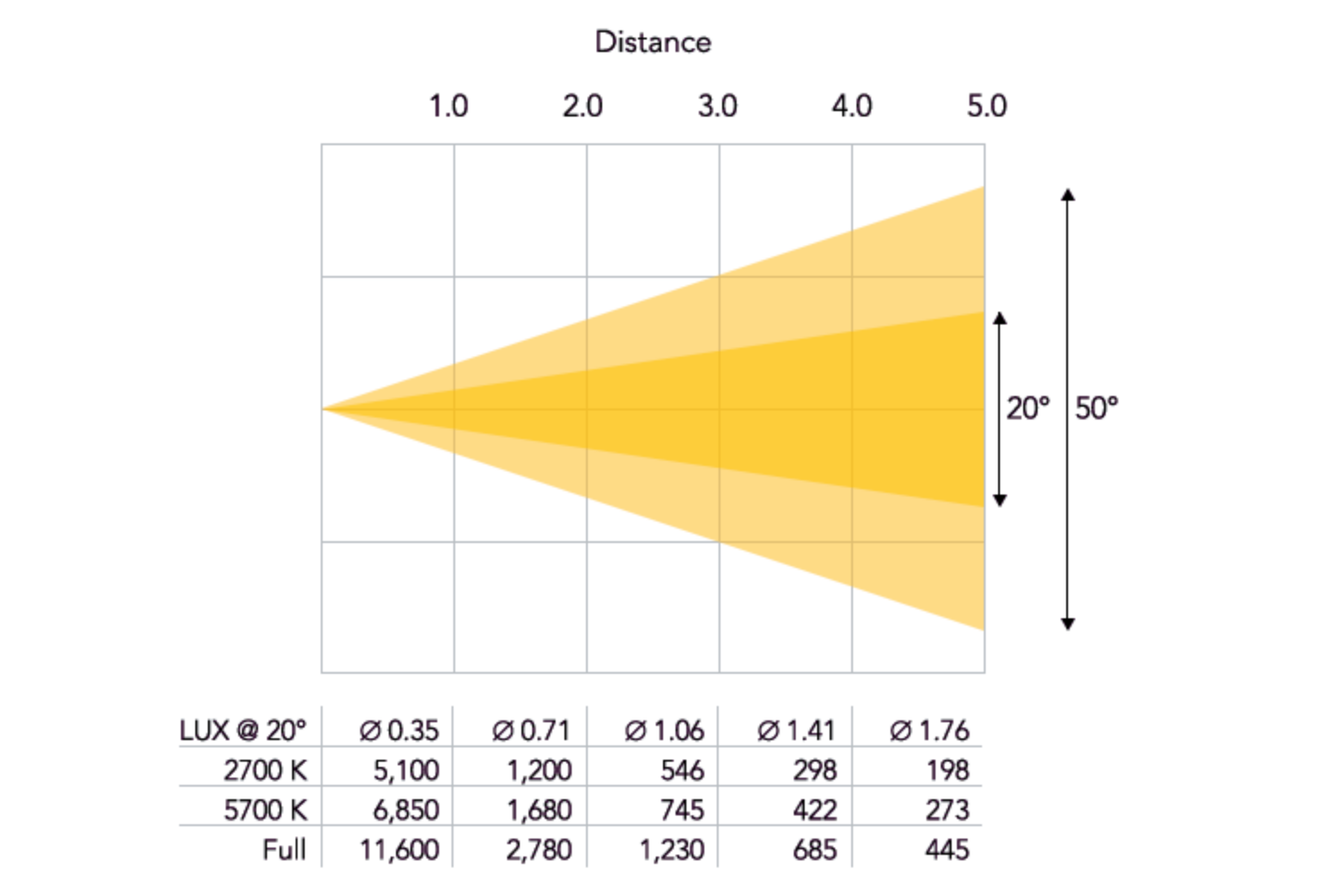

• Output: 1420 lux @3M at 20°, 535 lux @3M at 50°
• Lens: 80mm Fresnel
• PWM: 1,200Hz
• LED Lifespan: 50,000 hours

Effects

• Dimming: 16-bit 0 - 100%
• Strobe: 1 – 25 Hz
• Zoom: Manual Zoom 20° to 50°

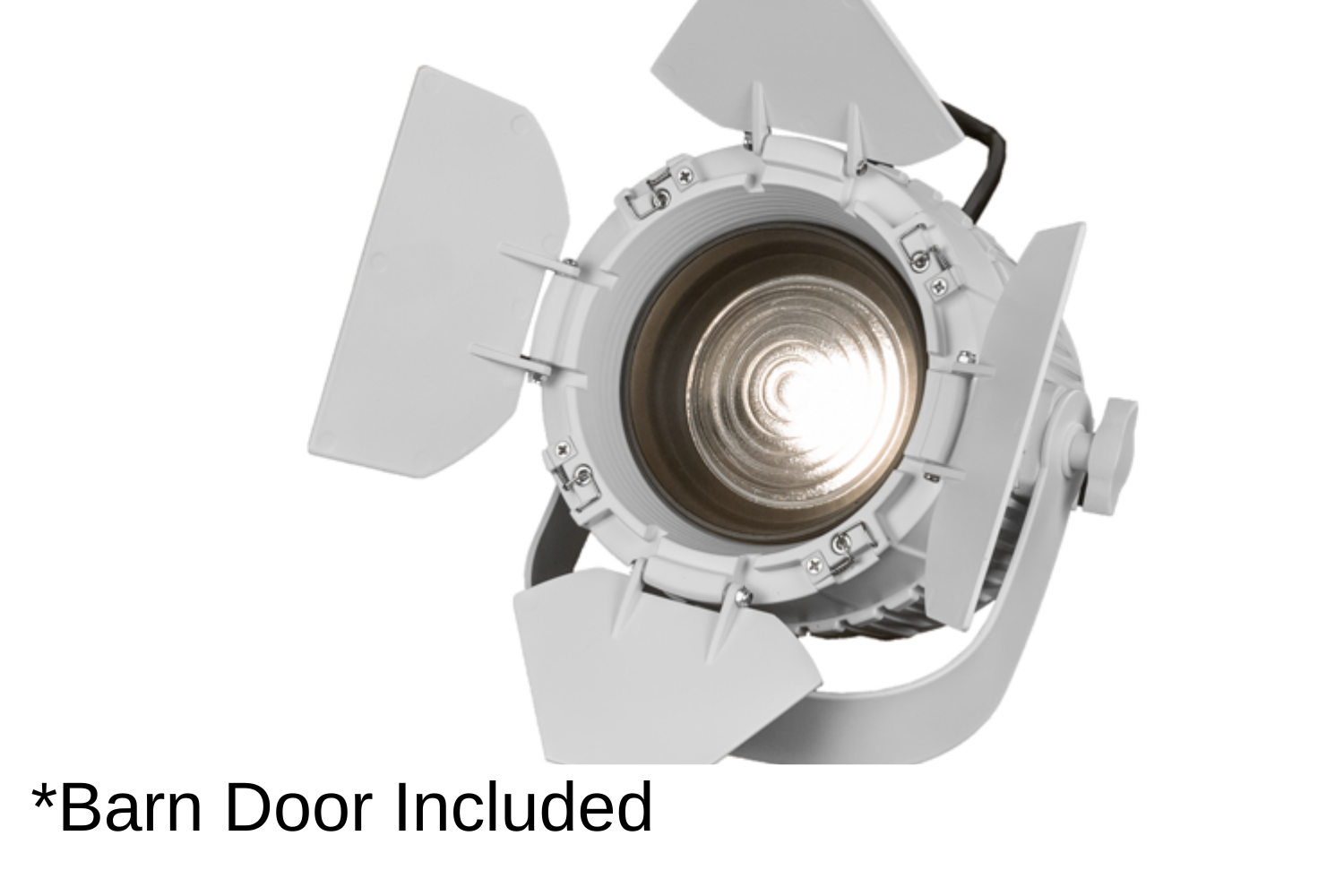

• Barn Door: Included
• Gel Clip: Included

Control

• Operational Modes: Manual, Master / Slave & DMX

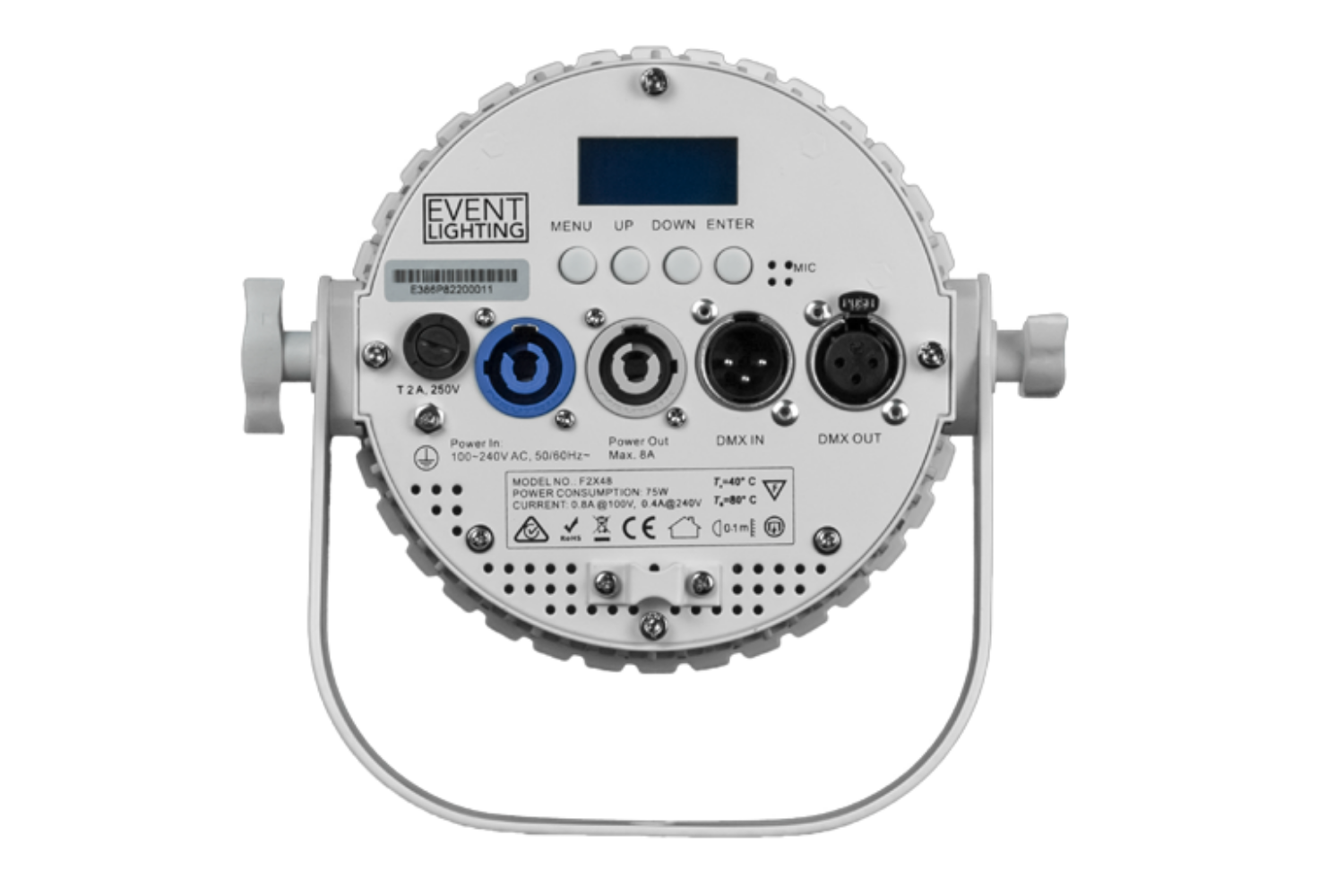

• Display: 4-button LCD control panel
• DMX Protocol: DMX512
• DMX Channel Mode: 1 / 2 / 5
• DMX Interface: 3-pin XLR (Optional 5-pin XLR)

Housing

• Housing Materials: Die-cast Aluminum Housing
• Housing Finishing: White
• Cooling: Fanless Cooling with Temperature Protection
• Net Weight: 2.3 kg

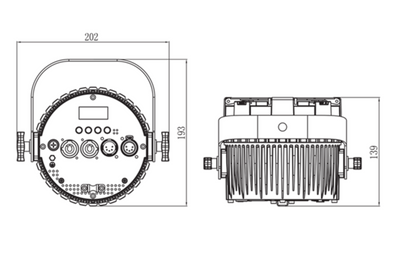

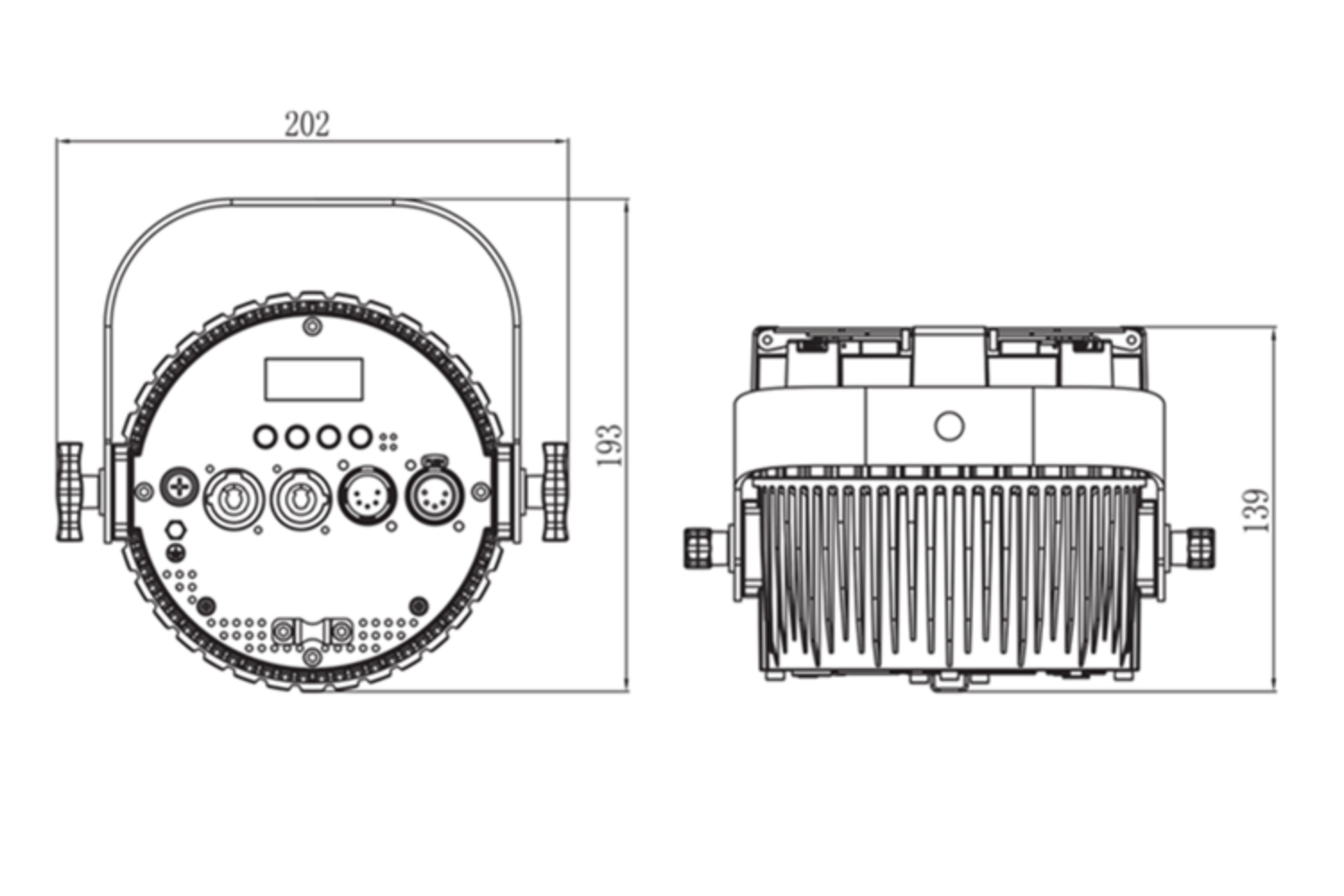

• Dimension: 202 X 139 X 193mm

Product Specification Sheet Download

User Manual Download

Spare Parts

Warranty: 3 years
