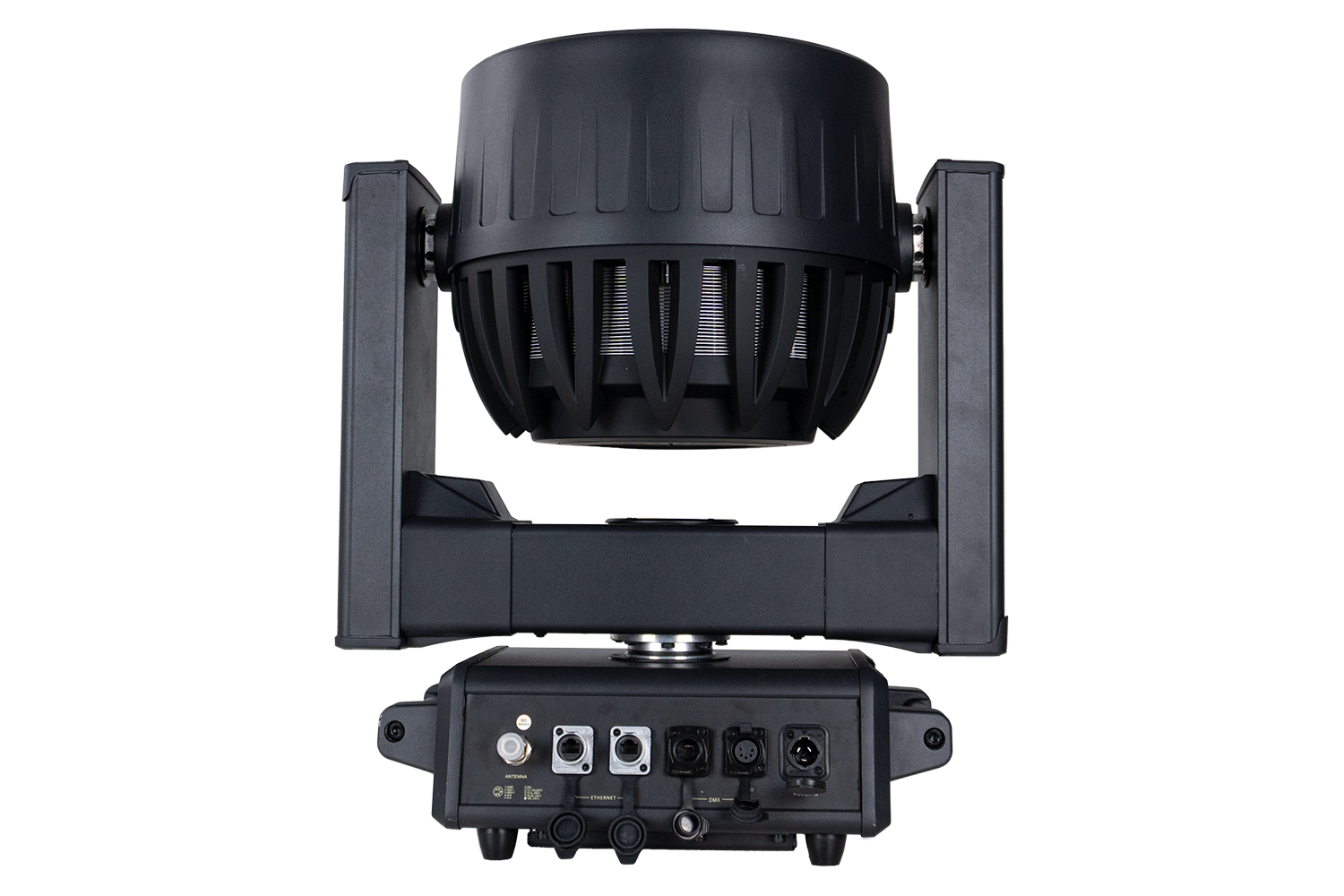

Event Lighting M19IPW40RGBW - 19x 40 W RGBW Outdoor Wash Zoom Head with Pixel Control

Notify me when this product is available:

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

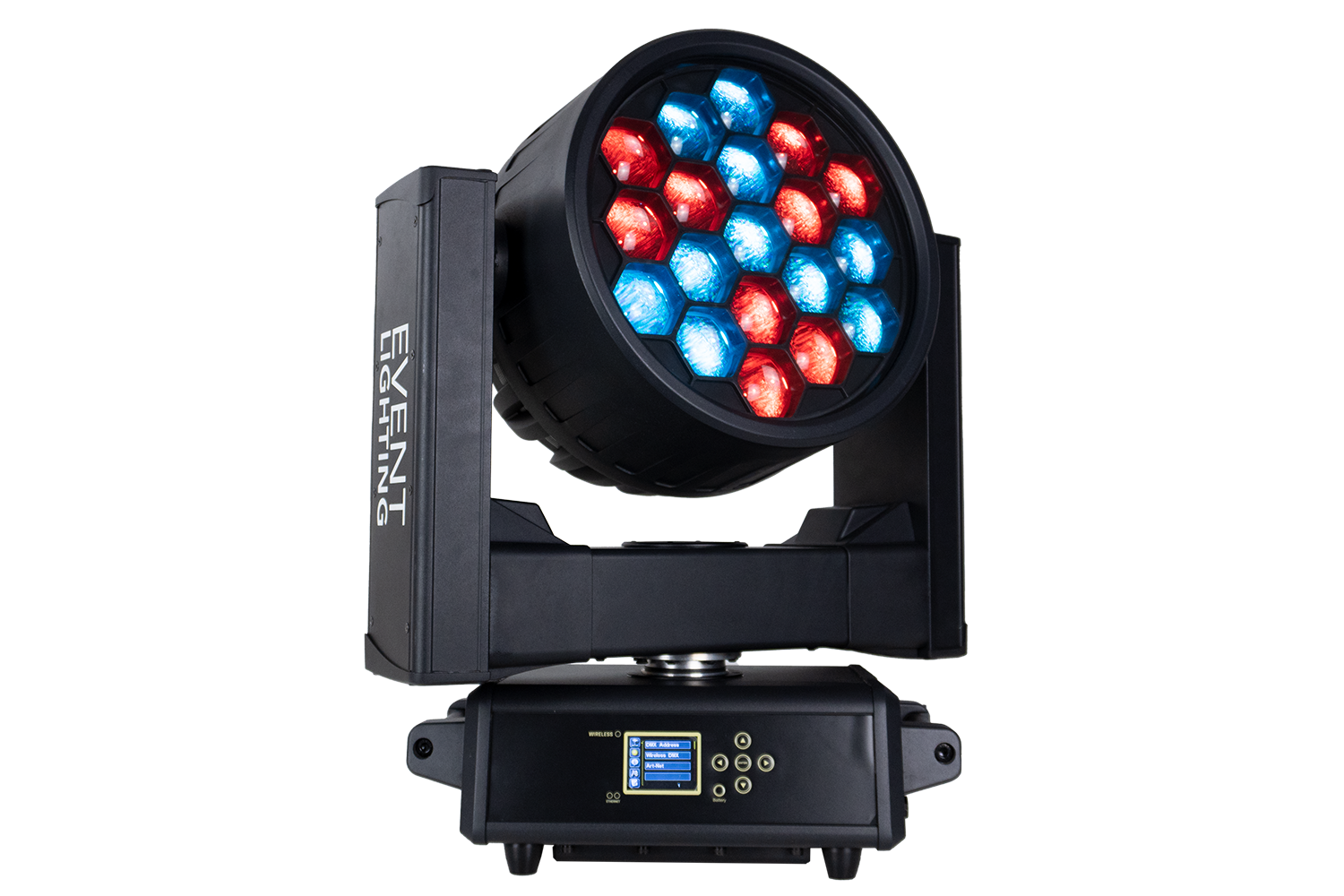

The M19IPW40RGBW is an IP rated moving head fixture featuring 19x 40 W RGBW 4-in-1 LEDs. Features include motorised zoom from 4~36°, various preset colour temperatures and Seetronic® outdoor 5-pin XLR in/out plus Ethernet.

Photometrics

  • Light Source: 19x Osram® 40 W RGBW 4-in-1 LED
  • Beam Angle: 4~36°

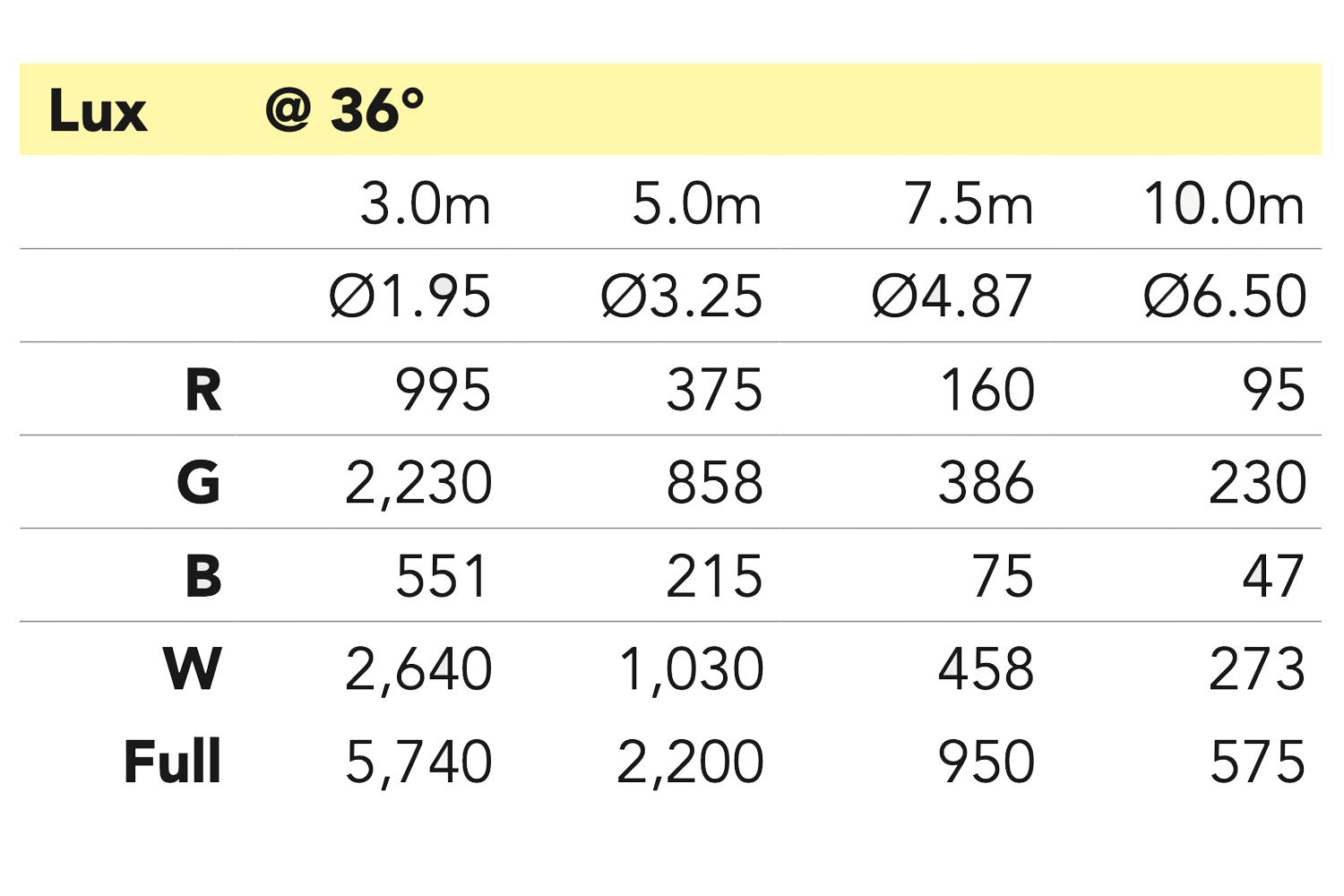

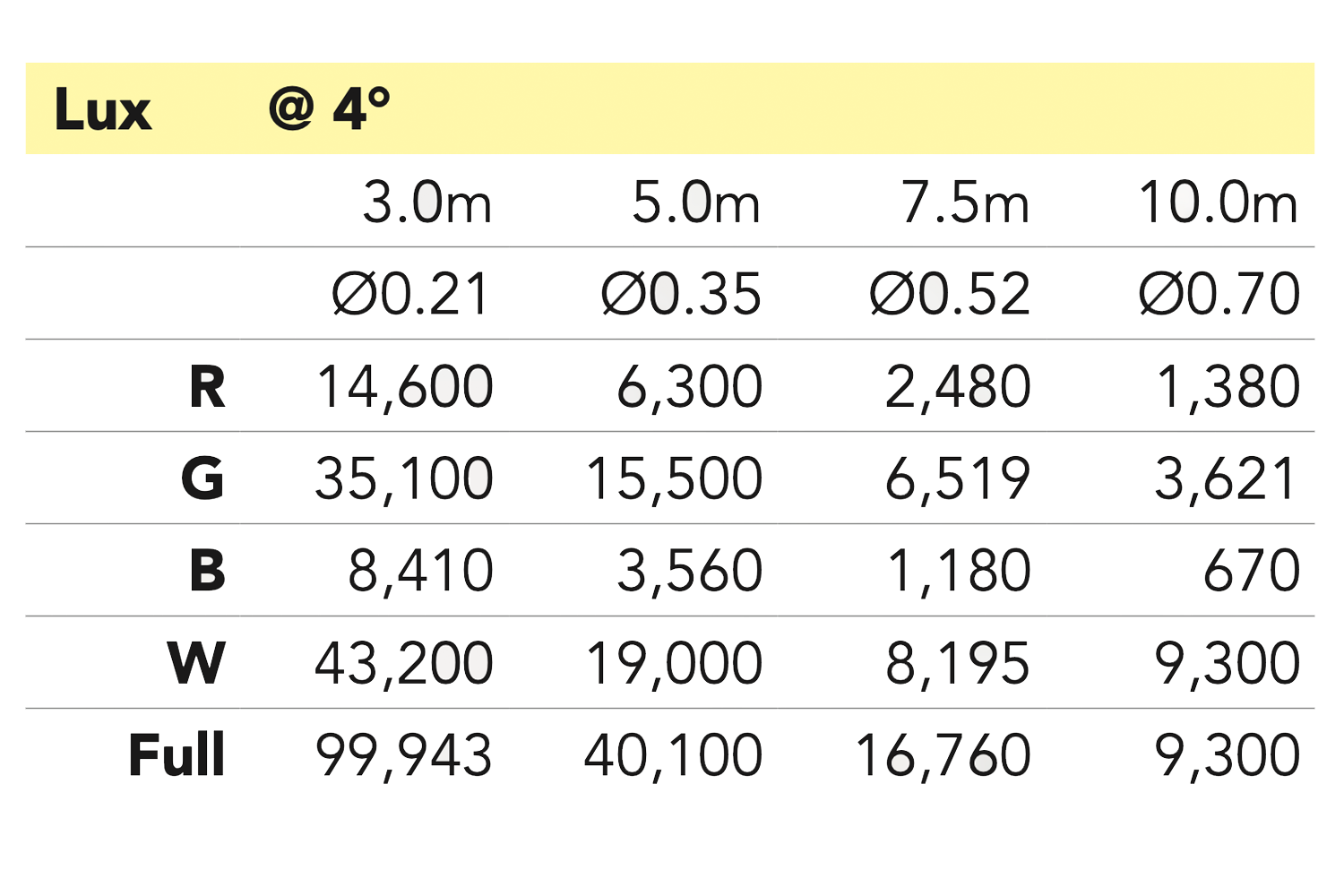

  • Output: 13,000 lumen, 99,943 lux @ 3 m RGBW at 4°, 5,740 lux @ 3 m RGBW at 36°
  • PWM: 1,200 Hz
  • LED Lifespan: 60,000 hours

Effects

  • Dimming: 0~100%
  • Pixel Control: Yes
  • Strobe: 0.5~26 Hz
  • Zoom: Motorised 4 - 36°
Movement 16 – bit, Auto-reposition
  • Pan: 630° (1.56 sec) / 540° (1.3 sec)
  • Tilt: 265° (0.85 sec)

Power

  • Input Voltage: 100~240 V AC, 50/60 Hz, 615 W
  • Connection: Seetronic® Outdoor True1 in

Control

  • Operation Modes: DMX, auto, sound active, master/slave
  • Preset colour temperature at 2000k-2700K, 3200K, 4200K, 5600K and 8000K
  • Protocol: DMX512, RDM, Ethernet (optional: W-DMX™)
  • DMX Channels: 22 / 99 / 19 /21
  • Interface: Seetronic® outdoor 5-pin XLR in/out, ethernet in/out
  • Display: 2.4″ colour LCD control panel with auto lock
  • Software Upgrade via DMX: Yes

Housing

  • Materials: Die-cast Aluminium & Steel, matte black finish
  • Cooling: Multi-sensor thermostat controlled variable speed fan
  • IP rating: IP65
  • Net Weight: 31 kg
  • Rigging: 2x omega brackets with 1/4-turn quick locks
