Sold Out
Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

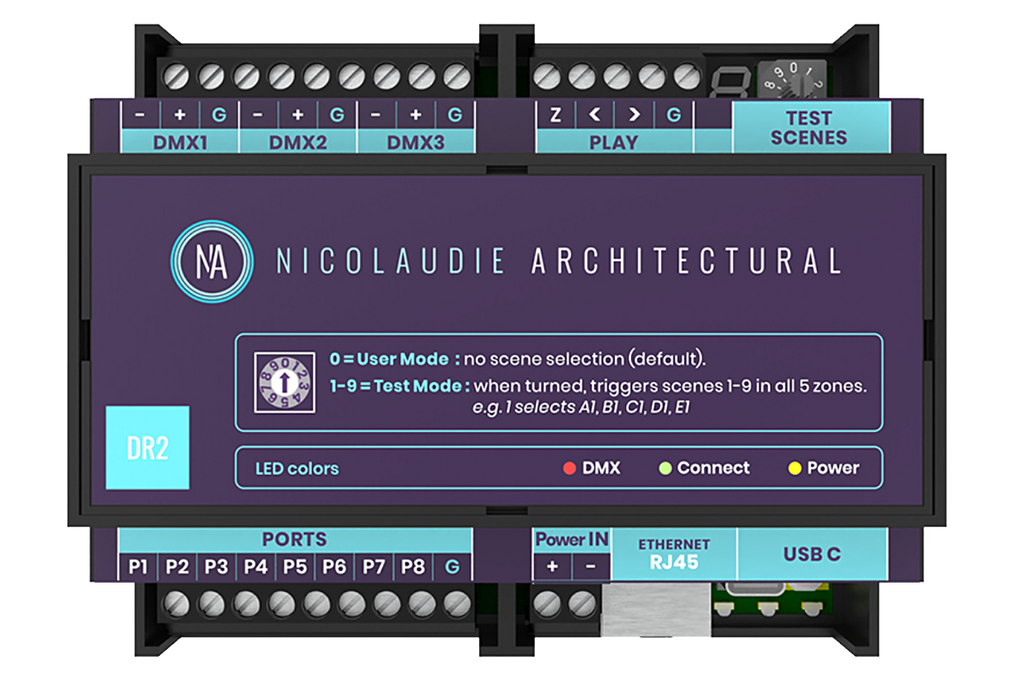

The DINA-DR2 is built on the latest generation of lighting controllers from Nicolaudie Architectural and combines all our recent innovations. Designed for DIN rail mounting, the DINA-DR2 is the perfect solution for mid-range lighting installations. Delivered with 1024 DMX channels (512 for DINA-DR2 LITE), the controller can be upgraded to 1536 by adding a 3rd DMX universe. The lighting levels, color and effects can be programmed from a PC, Mac, Android, iPad or iPhone using software from our website.
Key Features
Please Note: Shipping at checkout for this item may be an estimate only and may apply only to some metro areas, or a specific distance from supply location. Please use the contact us form to get an accurate shipping quote based on your order quantity and location.
Optional Accessories
POWER 12V AC/DC power supply
Technical Data | |
---|---|
Input Power | 12v DC (8-15V range) |
Output Protocol | DMX512 (x3) |
Programmability | PC, Mac, Android, iOS |
Connections | USB-C |
Ethernet | |

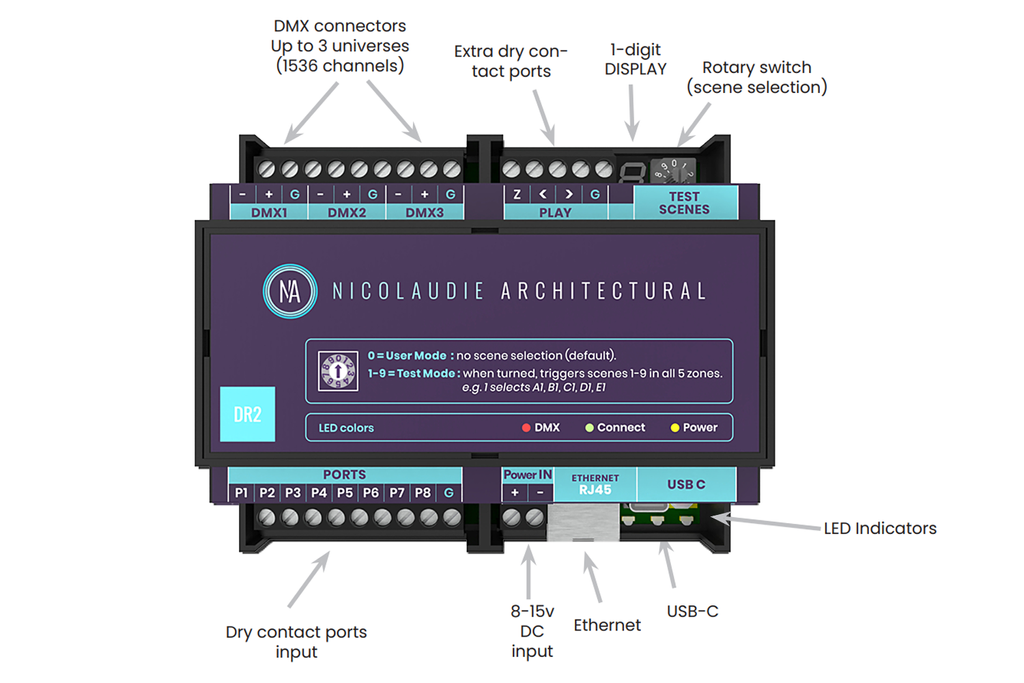

Screw terminals for : | |
- 3 DMX / RDM Universes | |
- 8+3 Contact ports | |
- 12v power-in | |

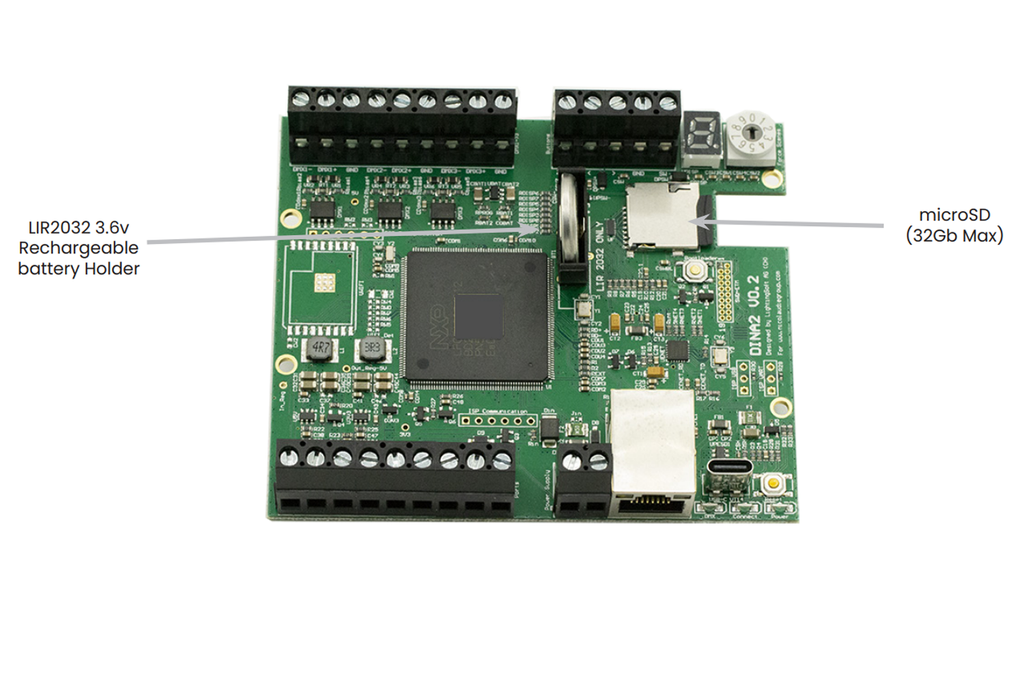

Battery holder (CR2032) | |
microSD slot | |
Memory | SD Card |
Environment | IP20 / to 0 to +50°C |
Buttons | Rotary switch |
Dim / Weight | 160 x 91 x 62 mm 317g |
OS Requirements | Mac OS X 10.8-10.14 |
Windows 7/8/10 | |
Standards | CE, ETL, Low voltage, EMC, and RoHS |
