Event Lighting DMXDIM4LED 4 channel DMX dimmer / switch pack

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

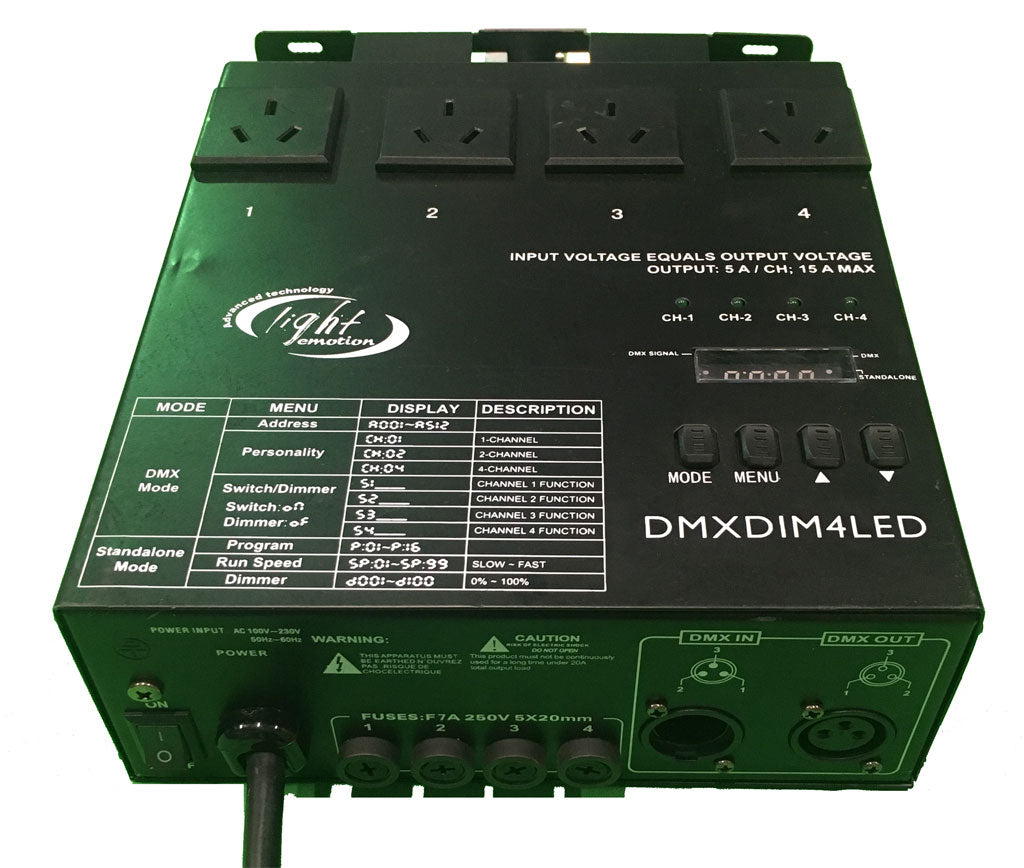

DMXDIM4LED
Upgraded 4 channel DMX dimmer / switch pack
Suitable for switch mode power supply devices

Power:
CAUTION: This lighting effect is designed to operate on 240VAC
Power Consumption: 100W
Fuse: M205 10A fast blow for DMXDIM4LED, M205 6.3A fast blow for each channel.

Specifications:
• Weight: 2.3kgs
• Size:21×20×7cm
• Power input: 240V 50HZ
• Power output: 5A/Channel, Max15A
• LEDS: 18PCS 5W (4 IN 1)
• 3PIN female DMX XLR socket and 3PIN male DMX XLR socket
• 4 button Digital LED menu

Operation:
Dimmer/switch packs are mainly used for lamp based par cans, Damage may occur if connected to a unit with an electronic (switch mode) power supply. The DMXDIM4LED allows you switch on & off loads with electronic (switch mode) power supplies such as Laser and LED fixtures. BEFORE this can be done you must ensure there are no devices connected to the dimmers outputs and put the fixture into “switch” mode.

  1. Changing between “Dimmer” mode and “Switch” mode:
    A. Make sure there are no fixtures connected to the output channels, if there are please disconnect these fixtures.
    B. Turn on the DMXDIM4LED.
    C. Press the “mode” button until “A001-A512” appears
    D. Press the “menu” button until “S1**”, “S2**”, “S3**”, “S4**” appears
    E. You can now use the “up” and “down” buttons and select either “oN” or “oF”. When “On” is selected, the particular channel will be in “Switch” mode. “Of” will set the channel on “dimmer” mode
    F. Repeat steps 1-5 for the rest of the channels.
  2. Select DMX mode. Also it can run in 3 different channel modes. Press MODE button to switch between
    “DMX Mode” and “Standalone Mode”.
    Choose the DMX starting address. Press MODE button until the display shows “AXXX ”, then you can
    choose “XXX” from 001 to 512 by press UP or DOWN buttons.
    Choose the DMX channel mode. Press MENU button until the display shows “CH:XX ”, then you can choose “XX” from 01 to 04 by press UP or DOWN buttons.
    On CH:01 mode, DMX channel 1 will control 4 output together.
    On CH:02 mode, DMX channel 1 will control output 1 and 2 together. DMX channel 2 will control output 3 and 4 together.
    On CH:04 mode, DMX channel 1 will control output 1, channel 2 will control output 2, channel 3 will control output 3 and channel 4 will control output 4.
  3. Select Standalone mode. There are 16 chase programs that a user can select.
    Choose the program. Press MODE button until the display shows “P:XX ”, then you can choose desired program “XX” from 01 to 16 by press UP or DOWN buttons. After you have selected the desired program you can then adjust the speed and intensity as required.
    Choose the speed. Press MENU button until the display shows “SPXX ”, then you can choose the desired speed “XX” from 01 to 99 by press UP or DOWN buttons.
    Choose the intensity. Press MENU button until the display shows “DXXX ”, then you can choose “XX” from 000 to 100 by press UP or DOWN buttons.
