CR2/3 CONTROL RELAY DPDT 3PK FORGE 01306019

$94.25

Overview

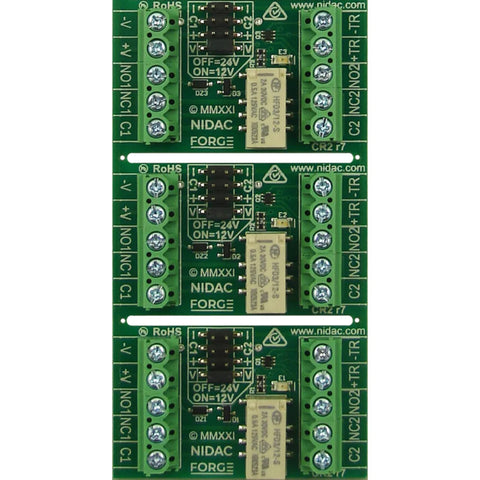

CR2/3 CONTROL RELAY DPDT 3PK - FORGE

The CR2 Control Relay is a 2 pole, double throw device available as strip of 3 with common supply rails.The CR2 offers flexibility of use and is a suitable device for multiple applications including industrial uses.

Features:

Expected lifetime of 100,000 operations at full load
LED indication of operation
Easy mounting with double sided adhesive tape included as standard
2 Amp. rated relay, low 1.2 mA input current
In-built -TR pull-up resistor and +TR pulldown resistors
2 Pole change over contacts, can jumpper +V or –V to common contacts, C1 & C2
12 or 24 Volt D.C. operation

Spesc:

12 or 24 Volt D.C. operation (10 - 18V V Link ON),
Maximum Switch Current: 2A at 30V
+TR Trigger: 2 to +V, 1.2mA @ 12V, 2.4ma @ 24V
-TR Trigger: 0 to (+V-2V) -1.2mA @ 12V, -2.4ma @
24V * all voltages D.C.
Single unit: 50mm x 31mm x 15mm
Strip of 3: 50mm x 93mm x 15mm

Please Note: Online stock only for this item. Shipping at checkout for this item may be an estimate only and may apply only to some metro areas or to a specific distance from supply location. Local pickup may be available on some items by prior arrangement. Shipping charges may still apply for this item for Click and collect in store orders as this item may still need to be shipped to us for collection from the local pickup location.

Please use the contact us form to get an accurate shipping quote based on your order quantity and location to avoid order cancellation charges.
