| WIRELESS |
Standards |
Wi-Fi 6
- IEEE 802.11ax/ac/n/a 5 GHz
- IEEE 802.11n/b/g 2.4 GHz
|
| Wi-Fi Speeds |
AX1500
- 5 GHz: 1201 Mbps (802.11ax)
- 2.4 GHz: 300 Mbps (802.11n)
|
| Wi-Fi Range |
3 Bedroom Houses
- 4× Fixed High-Performance Antennas: Multiple antennas form a signal-boosting array to cover more directions and large areas.
- Beamforming: Concentrates wireless signal strength towards clients to expand Wi-Fi range.
|
| Wi-Fi Capacity |
High
- Dual-Band: Allocate devices to different bands for optimal performance.
- OFDMA: Simultaneously communicates with multiple Wi-Fi 6 clients.
- Airtime Fairness: Improves network efficiency by limiting excessive occupation.
- 4 Streams: Connect your devices to more bandwidth.
|
| Working Modes |
- Router Mode
- Access Point Mode
|
| HARDWARE |
Processor |
1.5GHz Triple-Core CPU |

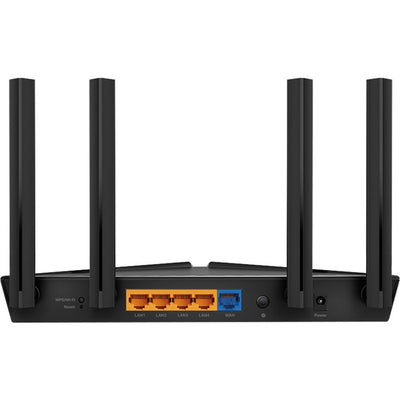

| Ethernet Ports |
- 1× Gigabit WAN Port
- 4× Gigabit LAN Ports
|
| Buttons |
- WPS/Wi-Fi Button
- Power On/Off Button
- LED On/Off Button
- Reset Button
|
| Power |
12V, 1A |
| SECURITY |
Wi-Fi Encryption |
- WEP
- WPA
- WPA2
- WPA/WPA2-Enterprise (802.1x)
|
| Network Security |
- SPI Firewall
- Access Control
- IP & MAC Binding
- Application Layer Gateway
|
| Guest Network |
- 1× 5 GHz Guest Network
- 1× 2.4 GHz Guest Network
|
| VPN Server |
|
| SOFTWARE |
Protocols |
|
| Parental Controls |
- URL Filtering
- Time Controls
|
| WAN Types |
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
|
| Quality of Service |
QoS by Device |
| Cloud Service |
- Auto Firmware Upgrade
- OTA Firmware Upgrade
- TP-Link ID
- DDNS
|
| NAT Forwarding |
- Port Forwarding
- Port Triggering
- DMZ
- UPnP
|
| IPTV |
- IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
|
| DHCP |
- Address Reservation
- DHCP Client List
- Server
|
| DDNS |
|
| Management |
|
| TEST DATA |
Wi-Fi Transmission Power |
- CE:
- <20dBm (2.4GHz)
- <23dBm (5.15GHz~5.25GHz)
- FCC:
- <30dBm (2.4 GHz & 5.15 GHz~5.825 GHz)
|
| Wi-Fi Reception Sensitivity |
- 5 GHz:
- 11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm
- 11ac VHT20_MCS0: −96dBm, 11ac VHT20_MCS11: −66dBm
- 11ac VHT40_MCS0: −94dBm, 11ac VHT40_MCS11: −63dBm
- 11ac VHT80_MCS0: −91dBm, 11ac VHT80_MCS11: −60dBm
- 11ax HE20_MCS0: −95dBm, 11ax HE20_MCS11: −63dBm
- 11ax HE40_MCS0: −92dBm, 11ax HE40_MCS11: −60dBm
- 11ax HE80_MCS0: −89dBm, 11ax HE80_MCS11: −58dBm
- 2.4 GHz:
- 11g 6Mbps: −91dBm, 11a 54Mbps: −74dBm
- 11n HT20_MCS0: −90dBm, 11n HT20_MCS7: −73dBm
- 11n HT40_MCS0: −88dBm, 11n HT40_MCS7: −70dBm
|
| ENVIRONMENT |
Operating Temperature |
0°C~40°C (32°F ~104°F) |
| Storage Temperature |
−40°C~70°C (−40°F ~158°F) |
| Operating Humidity |
10%~90% non-condensing |
| Storage Humidity |
5%~90% non-condensing |
| GENERAL |
Dimensions (W×D×H) |
260.2mm × 135.0mm × 38.6mm (10.2″ × 5.3″ × 1.5″) |
| Package Contents |
- Wi-Fi Router Archer AX1500
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
|
| System Requirements |
- Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
- Cable or DSL Modem (if needed)
- Subscription with an internet service provider (for internet access)
|
| Certifications |
FCC, CE, RoHS |
