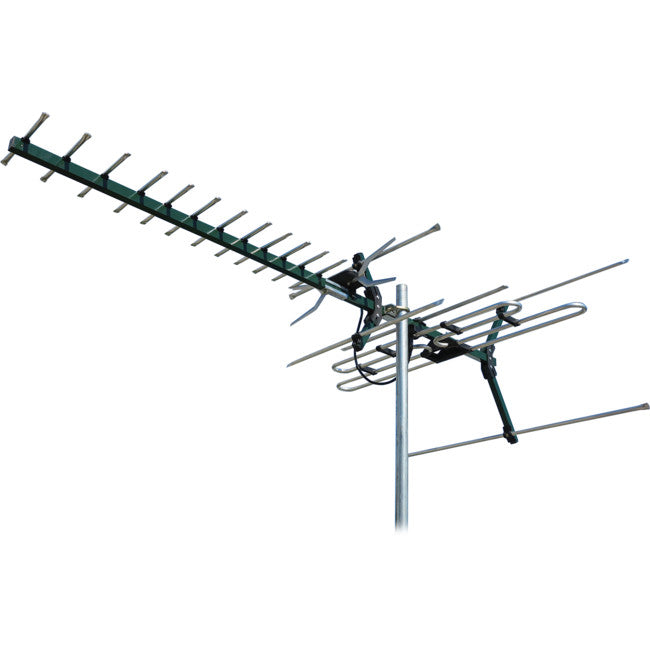

01MM-DC21A 21 ELEMENT UHF VHF ANTENNA (6-12 28-40) MATCHMASTER DC21A MATCHMASTER 01MM-DC21A

Digital TV Antennas

Matchmaster premium VHF/UHF & Combination antennas, suitable for metropolitan & rural areas using VHF, UHF or combination broadcasts. Heavy duty construction with ‘F’ type baluns to improve signal quality. Various models can be used in horizontal or vertical broadcast areas. Matchmaster antennas feature built in Low Pass Filters either at 230MHz, 652MHz or 694MHz depending onmodel to prevent 4G (LTE) interference.




Features and Benefits

  • The best just got better! 01MM-DC21A comes with the DigiMATCH Gold Lifetime Manufacturer Warranty
  • Australian made
  • Receives channels 6-12 and 28-40
  • VHF diplexed to UHF section 25dB isolation for improved return loss
  • VHF elements 12.7mm diameter extruded aluminium tube forsuperior strength
  • 652MHz low pass filter > 40dB attenuation at 750MHz to eliminate 4G (LTE) interference
  • Attractive packaging ideal for retail merchandising

Pack Quantity

Inner: 1 box of 1 piece
Outer: 1 carton of 5 boxes (5 pieces)
Bulk: 1 pallet of 16 cartons (80 pieces)



Specifications

Elements 21
Band B3, UHF
Channels B3
UHF
VHF (6-12)
UHF (28-40)
Maximum Gain B3
UHF
VHF 8dB
UHF 12dB
AV VSWR <2:1
Front/Back Ratio B3
B4
VHF 16dB
UHF 21dB
Balun Type 'F' type balun VHF
'F' type diplexer
Circuit board
Boom Length 1538mm
Packing Type/Unit Inner
Outer
1
5
