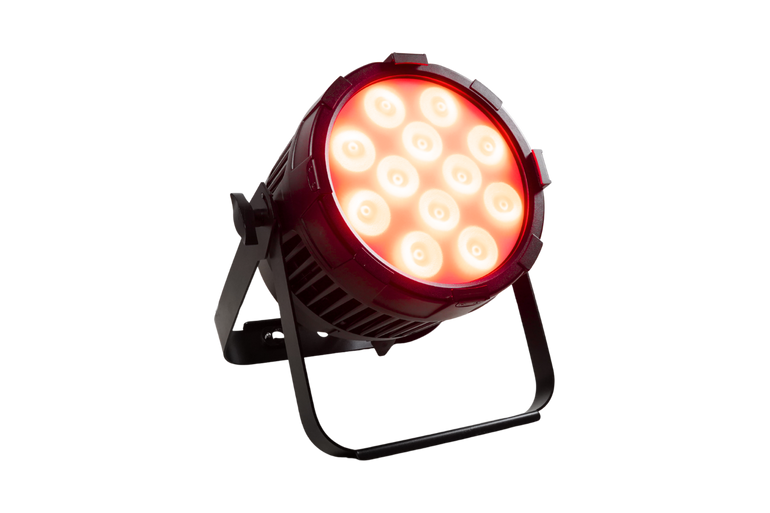

PARF12X20H-IP - IP65 Parcan with 12 x 20 RGBWAU LEDs with Electronic Frost

Specifications:

Photometrics

• Light Source: 12 x 20W RGBWAU LEDs
• B eam Angle: 10° (Optional: 8°, 15° , 45°)
• Beam Angle:
  • Frost 0%: 12°
  • Frost 100%: 45°
• Output: 27,440 lux @ 2.0m / 6’6” (Full On / Frost 0%)
• Refresh Rate: 1,200 Hz
• LED Lifespan: 50,000 Hours

Effects

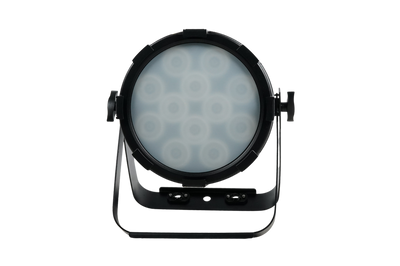

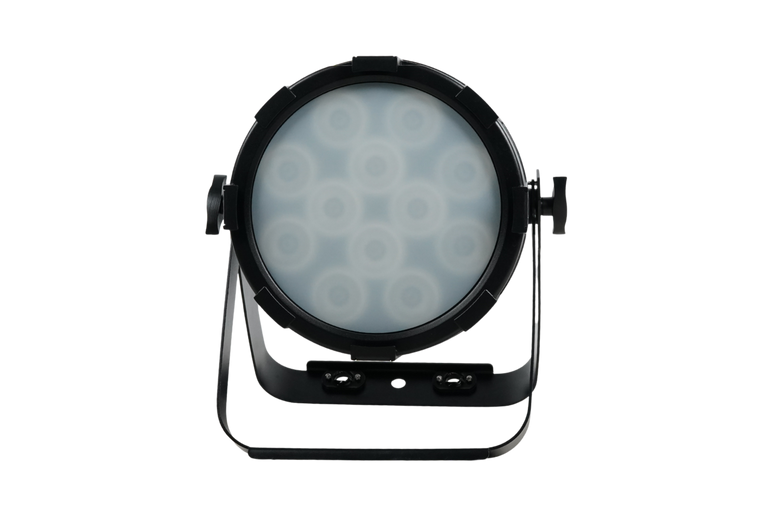

• Electronic Frost: Yes
• Dimming: 5 x 16-bit Dimming Curves
• Strobe: 1~30 Hz

Power

• Input Voltage: 100~240V AC, 50/60 Hz
• Power Consumption: 250W
• Fuse: T 2 A, 250V
• Power Connections: TrueOne Input/Output

Control

• Operational Modes: DMX, WDMX, auto run, sound active, master/slave, manual, static, RDM
• Display: 4-button LCD control panel
• DMX Protocol: DMX512
• DMX Channel Modes: 1 / 3 / 4 / 5W / 5A / 7 / 9 / 13 / 15

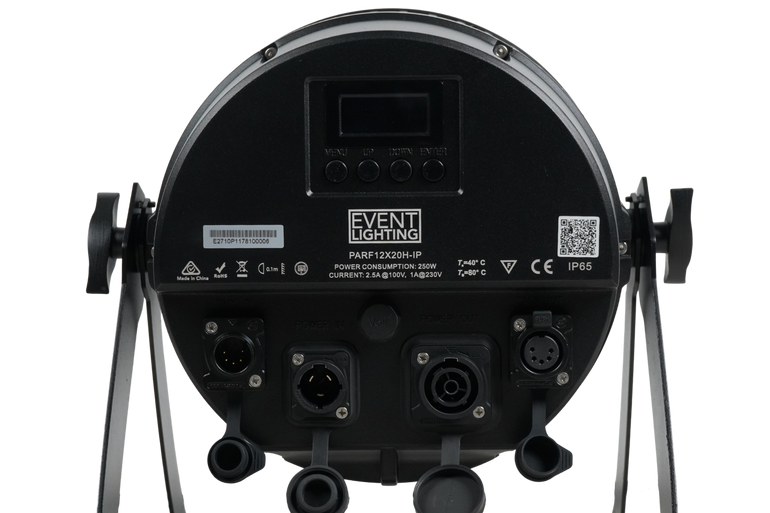

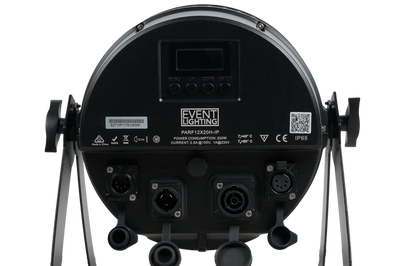

• DMX Connections: 5-Pin XLR Input/Output

Housing

• Housing Materials: Die-cast aluminium, matte black finish
• Cooling: Fanless Cooling

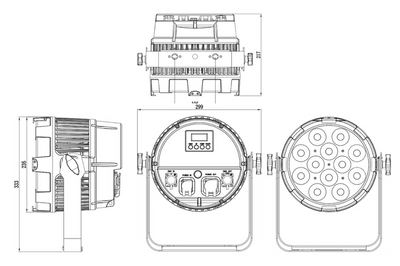

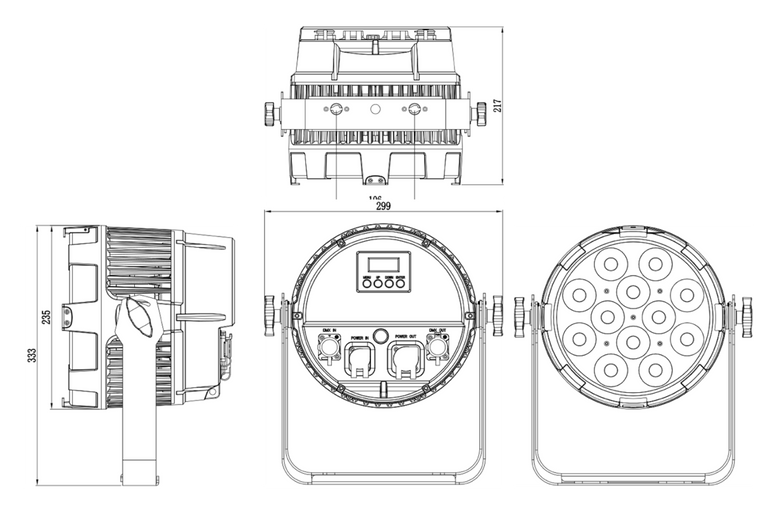

• Dimensions: 299 x 217 x 333mm / 11.8” x 8.5” x 13.1”
• Weight: 6.5 kg / 14.3 lbs
• Rigging: 1 x Omega Bracket with ¼ Turn Quick Locks

Download user manual

Warranty: 3 years
