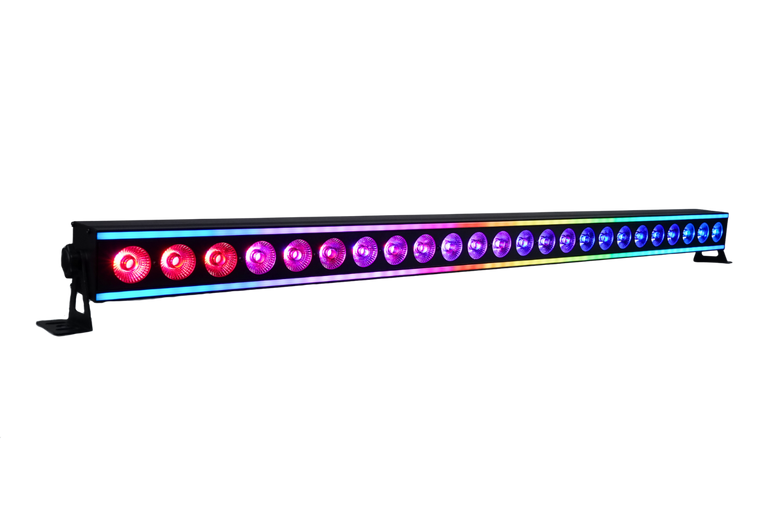

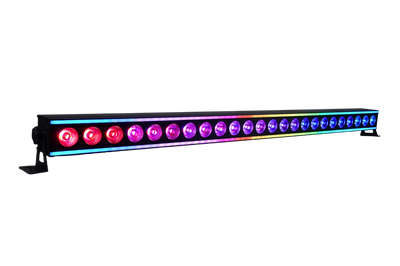

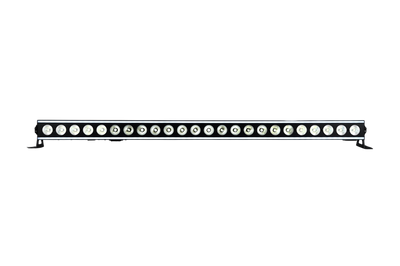

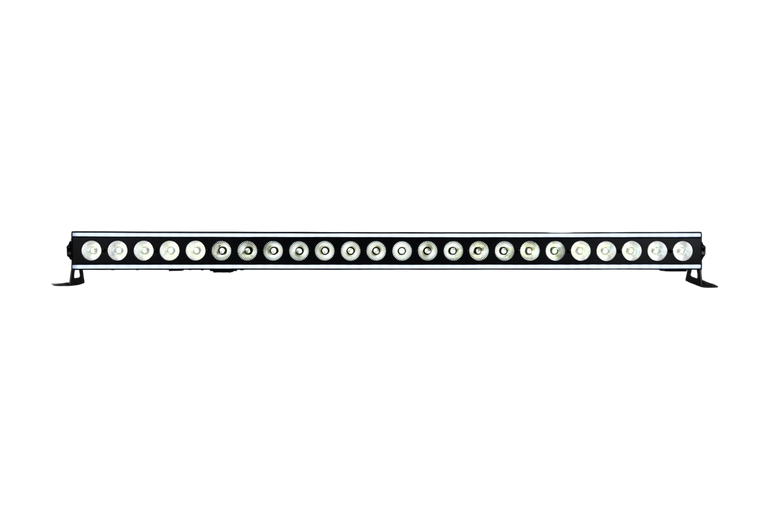

The BAR24X4FXL is the standout LED pixel bar for lighting designers who demand detailed visual effects and dynamic crowd engagement.
It's engineered to deliver stunning, high-impact eye candy for indoor professional use in clubs, stages, and studios with 24 x 4W RGBW LEDs for the main wash effect and an additional 120 x 0.2W RGB LEDs for tantalising AURA effects.
Specifications
- Light Source: 24 x 4W RGBW LEDs + 120 x 0.2W RGB LEDs
- Beam Angle: 45° (RGBW LEDs) / 25° (RGB LEDs)
- LED Lifespan: 50,000 Hours

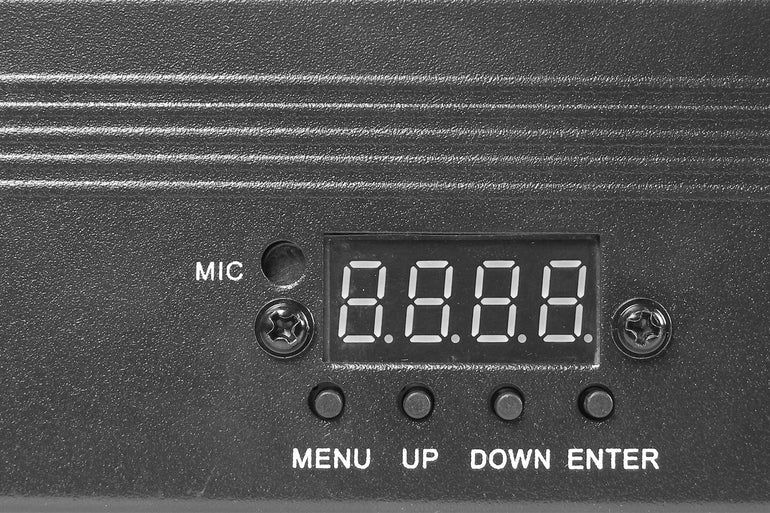

- Operation Modes: DMX, auto, manual, sound active, master/slave, RDM

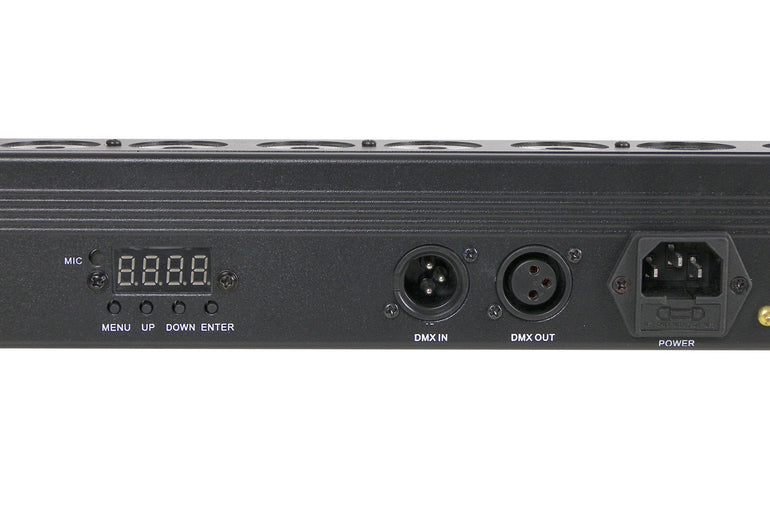

- Data Connection: 3-pin XLR Input/Output
- DMX Channels: 8 / 15 / 40 / 92
- Power Connection: IEC Input/Output (cable included)
- Input Voltage: 110-240V AC, 50/60 Hz
- Power Consumption: 150W
- IP Rating: IP20
- Housing Material: Aluminium (Black)
- Dimensions: 1100 x 150 x 120mm / 43.3" x 5.9" x 4.7"
- Weight: 4.5 kg / 10 lbs

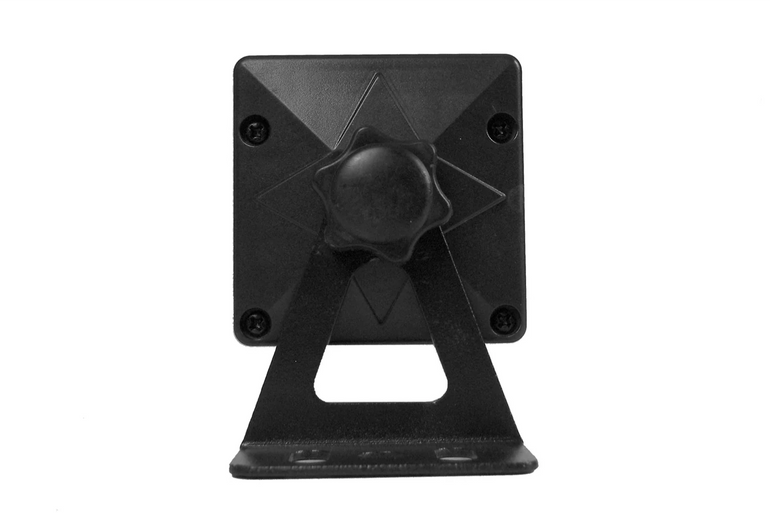

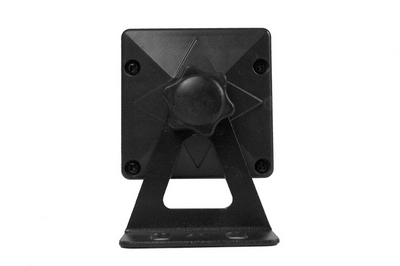

- Optional Accessories: XSTANDM8 for vertical free-stand
Download User Manual
Warranty: 2 years
