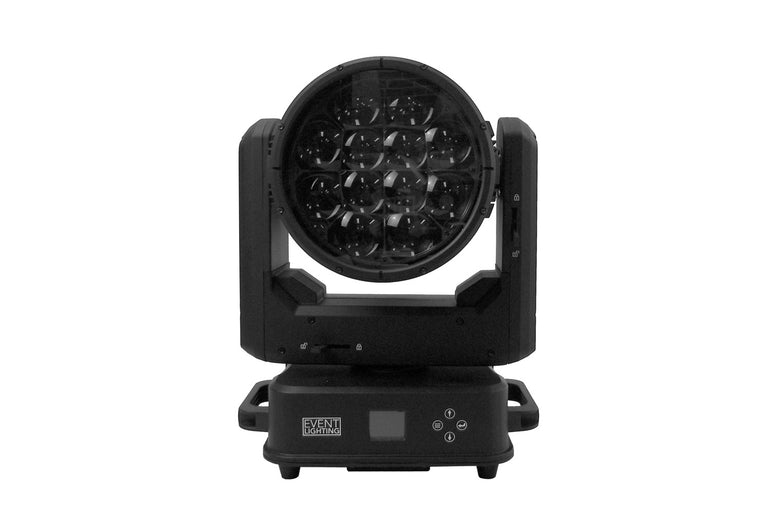

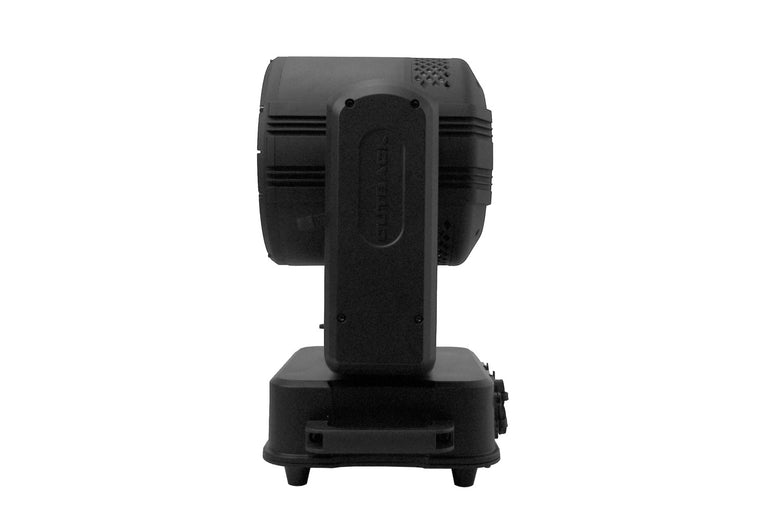

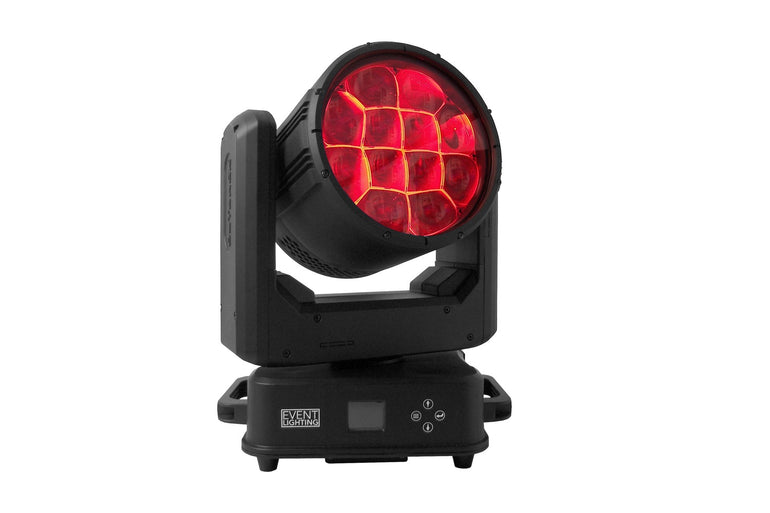

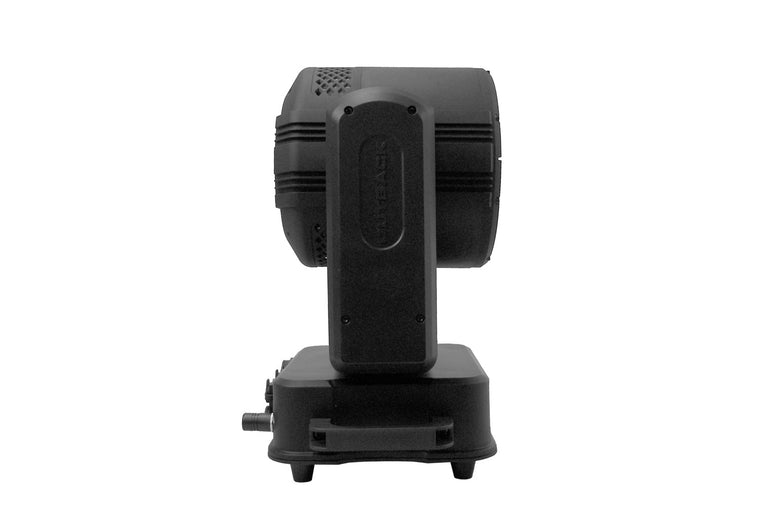

OUTBACK12X60W - 12 x 60W RGBL Zoom Wash Outdoor Moving Head

Introducing the OUTBACK12X60W from Event Lighting's OUTBACK Range - Built specifically to withstand outdoor conditions.

The OUTBACK12X60W features a powerful 12 x 60W RGBL 4-in-1 LED source with an impressive 24,547 lux output at 5m (3° beam angle) delivering exceptional brightness and rich, unparalleled colour mixing. Versatile colour capabilities are driven by the RGBW LEDs providing seamless colour control with an adjustable colour temperature range of 2,000K - 10,000K. Dynamic effects include motorised zoom with a wide range of 3° to 45°, and individual pixel control for stunning visual mapping and effects. Control options include 3 and 5 pin DMX as well as RDM capabilities, all housed in an IP65 rated enclosure.

Specifications:

Photometrics

• Light Source: 12 x 60W RGBL 4-in-1 LEDs
• Beam Angle: 3°- 26°
• Zoom Angle: 3°- 45°
• Output: 24,547 lux @ 3°, 5m
• CCT: 2,000 - 10,000K

• CRI: >80
• Led lifespan: >20,000 hours

Effects

• Dimming: 0-100%
• Pixel Control: Yes
• Strobe: 1 - 25 Hz
• Zoom: Motorised, 3°-45°

Movement

• 16 bit resolution
• Auto repositioning
• Pan: 540°
• Tilt: 270°

Power

• Input Voltage: 100-240V AC, 50/60Hz
• Max power consumption: 570W
• Connection: True1 in/out

Control

• Control Protocol: DMX512, RDM

• DMX Channels: 15 /  29 / 61

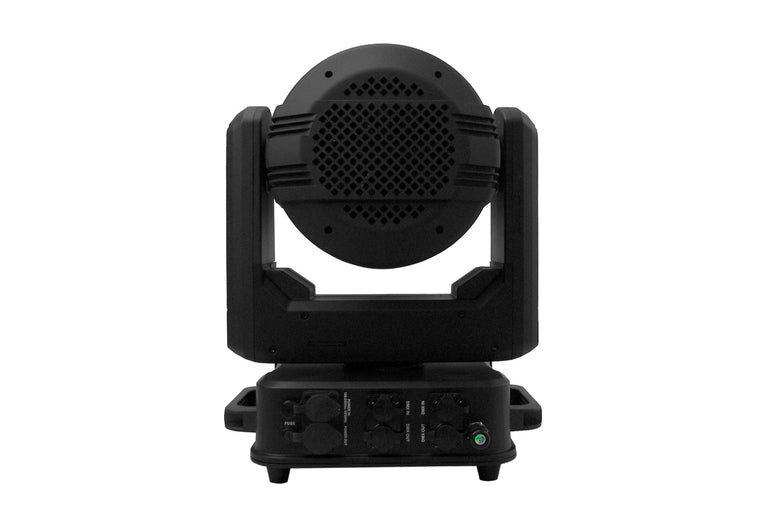

• Interface: 3-pin/5-pin XLR (in/out)

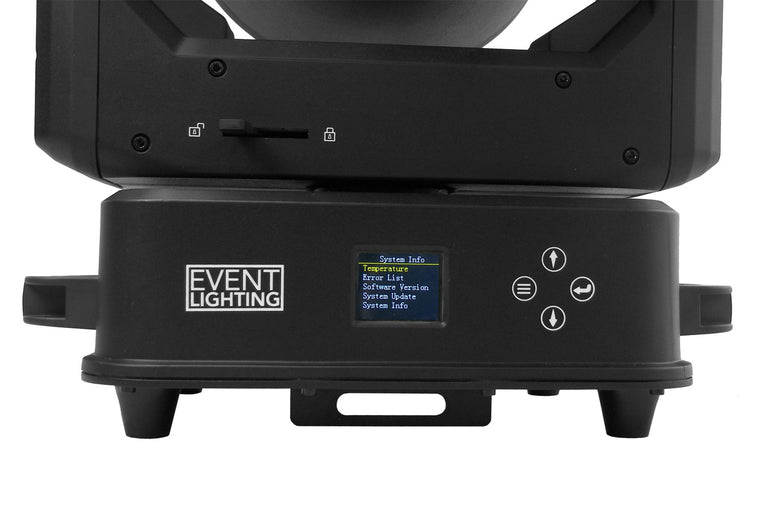

• Display: TFT control panel


Housing

• Materials: ABS & Steel, matte black finish
• Protection: High temperature automatic protection
• IP rating: IP65
• Dimensions: 337 x 240 x 457mm / 13.3" x 9.4" x 18.0"
• Net Weight: 11 kg / 24.3 lbs

Download user manual

Warranty: 3 years
